Artesyn / Advanced Energy, LCC1200-28U-4P SMPS Transformer 30V, 1.2 kW 264V
- RS Stock No.:
- 251-6423
- Mfr. Part No.:
- LCC1200-28U-4P
- Brand:
- Artesyn / Advanced Energy
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£610.17
(exc. VAT)
£732.20
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 12 May 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £610.17 |
| 5 - 9 | £585.76 |
| 10 - 24 | £567.46 |
| 25 - 49 | £536.94 |
| 50 + | £500.35 |
*price indicative
- RS Stock No.:
- 251-6423
- Mfr. Part No.:
- LCC1200-28U-4P
- Brand:
- Artesyn / Advanced Energy
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Artesyn / Advanced Energy | |
| Product Type | SMPS Transformer | |
| Maximum Output Voltage | 30V | |
| Number of Outputs | 1 | |
| Mount Type | Screw | |
| Power | 1.2kW | |
| Minimum Operating Temperature | -40°C | |
| SMPS Output Current | 42.9A | |
| Maximum Operating Temperature | 85°C | |
| Weight | 2.2kg | |
| Width | 115mm | |
| Length | 278.8mm | |
| Standards/Approvals | UL + CSA, CCC, CE mark, IEC 60950-1, IEC 62368-1, UKCA Mark | |
| Efficiency | 93.5% | |
| Series | LCC1200 | |
| Maximum Input Voltage | 264V | |
| Energy Efficiency Level | 93.5 % | |
| Hazardous Area Certification | No | |
| Minimum Input Voltage | 90V ac | |
| Select all | ||
|---|---|---|
Brand Artesyn / Advanced Energy | ||
Product Type SMPS Transformer | ||
Maximum Output Voltage 30V | ||
Number of Outputs 1 | ||
Mount Type Screw | ||
Power 1.2kW | ||
Minimum Operating Temperature -40°C | ||
SMPS Output Current 42.9A | ||
Maximum Operating Temperature 85°C | ||
Weight 2.2kg | ||
Width 115mm | ||
Length 278.8mm | ||
Standards/Approvals UL + CSA, CCC, CE mark, IEC 60950-1, IEC 62368-1, UKCA Mark | ||
Efficiency 93.5% | ||
Series LCC1200 | ||
Maximum Input Voltage 264V | ||
Energy Efficiency Level 93.5 % | ||
Hazardous Area Certification No | ||
Minimum Input Voltage 90V ac | ||
- COO (Country of Origin):
- PH

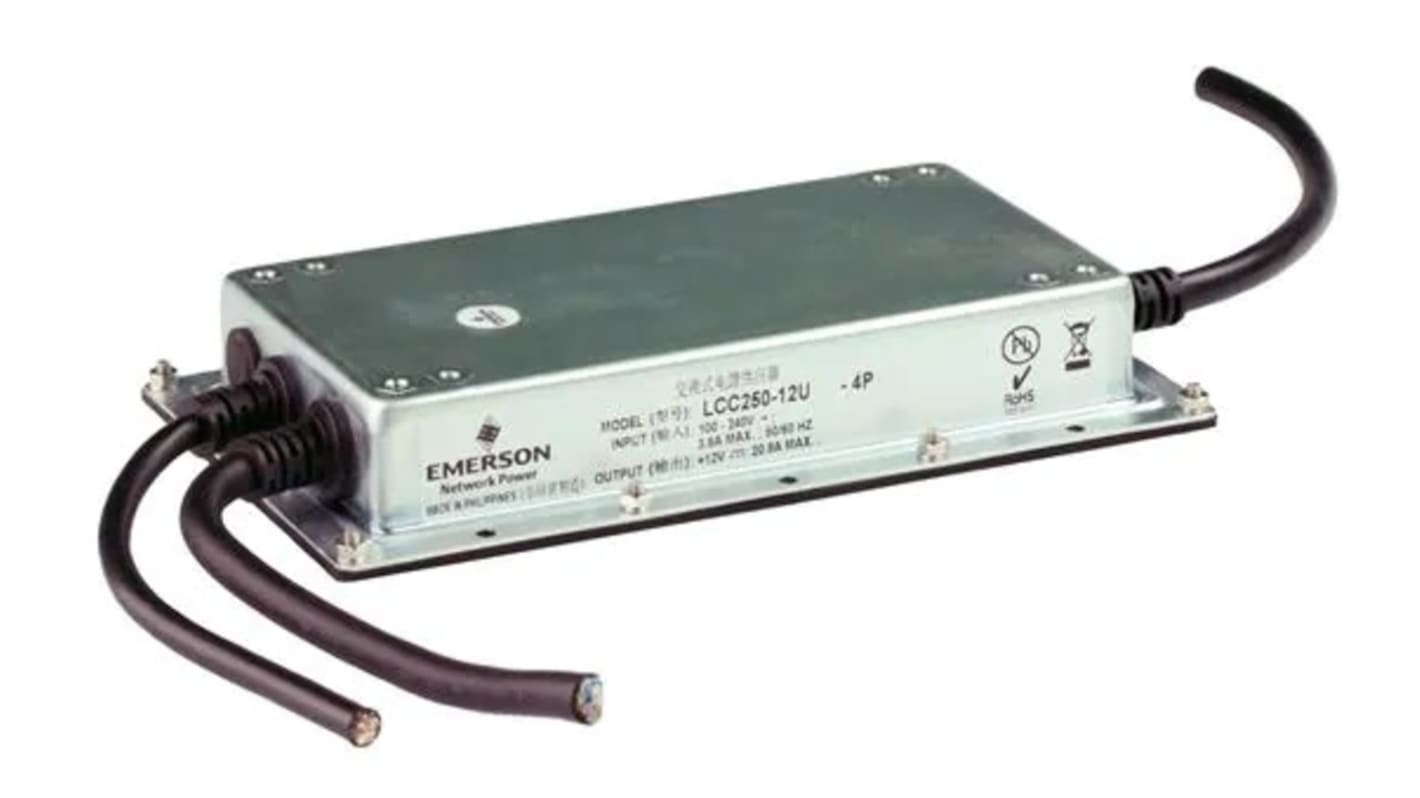

The Artesyn Embedded Technologies makes this product of fully enclosed conduction cooled AC-DC power supply. In this product for maximum applications flexibility, the main output is adjustable.
Primary voltage rating of this product is 90 to 264 Vac
Secondary voltage rating of this product is 28 v
Power rating of this product is 1200 w
