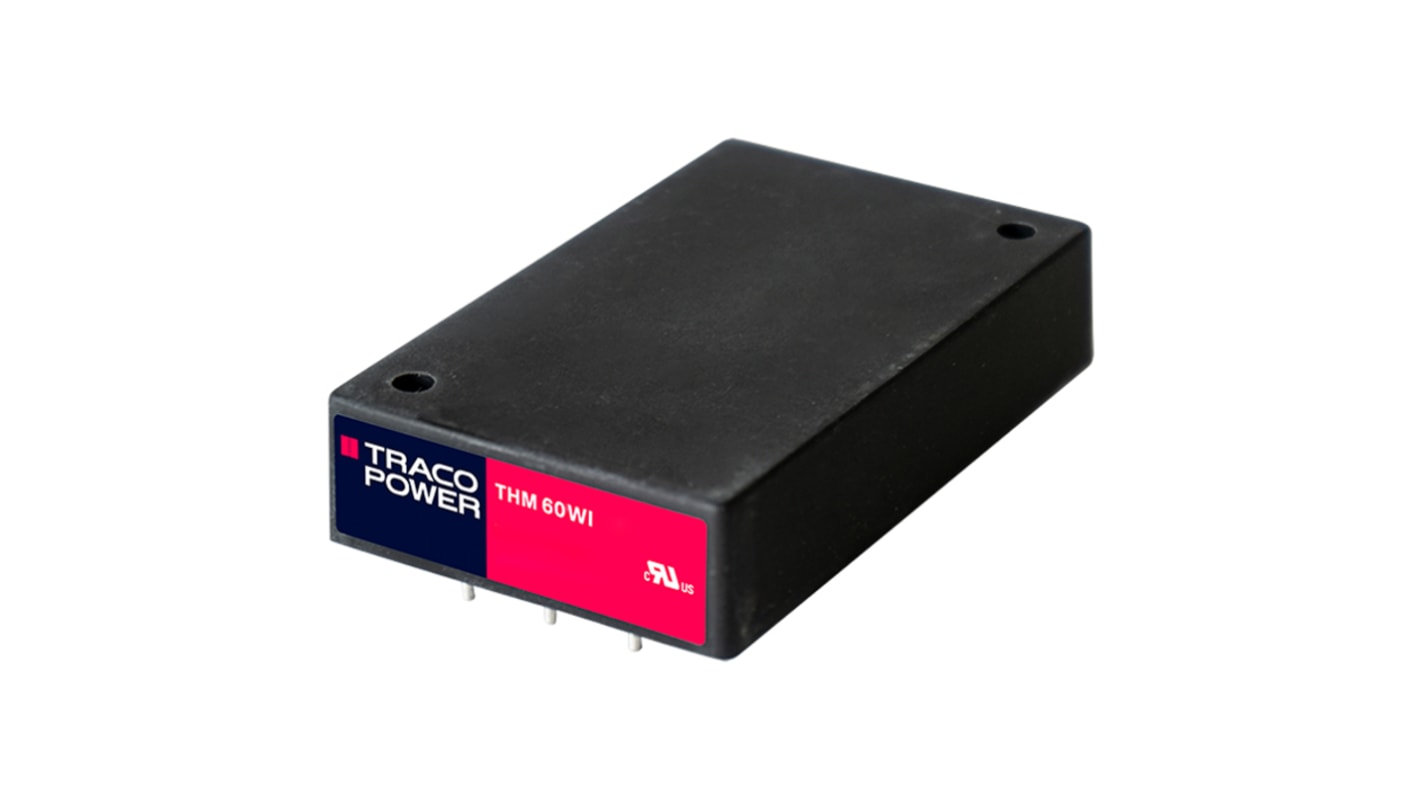

TRACOPOWER Power Supply, THM 60-4823WI, ±15V dc, 2A, 60W, Dual Output, 9 → 36V dc Input Voltage

The Traco THM 60WI series is a range of medical 60 Watt DC/DC converters in a compact 2.3” x 1.45” plastic package and with wide 4:1 input voltage range. They provide a reinforced isolation system (5000 VAC) and a very low leakage current of less than 4.5 μA. With a high efficiency of up to 92% and highest-grade components the converters can reliably operate in an ambient temperature range of –40°C up to +75°C with derating. For more demanding applications regarding temperature, Traco also offers a special heatsink which will greatly increase the thermal capabilities for natural convection conditions.

Wide 4:1 input voltage 60 W DC/DC converter in a compact 2.3 x 1.45 ” plastic case I/O isolation 5000 VAC rated for 250 VAC working voltage Certification according to IEC/EN/ES 60601-1 3rd edition for 2 x MOPP Risk management process according to ISO 14971 Acceptance criteria for electronic assemblies acc. to IPC-A-610 Level 3 Low leakage current <4.5 μA Operating temperature range: -40 to +75°C EMC compliance according to IEC 60601-1-2 4th edition Operating up to 5000m altitude 5 year product warranty
