Eplax Switching Power Supply, 116-010065J 2 Output 15V, 4A, 60 W, Input 115V to 253V
- RS Stock No.:
- 237-7568
- Mfr. Part No.:
- 116-010065J
- Brand:
- Eplax
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£314.66
(exc. VAT)
£377.59
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2 unit(s) shipping from 10 August 2026
- Plus 2 unit(s) shipping from 25 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £314.66 |
| 5 - 9 | £305.22 |
| 10 - 24 | £295.79 |
| 25 - 49 | £286.35 |
| 50 + | £276.90 |
*price indicative
- RS Stock No.:
- 237-7568
- Mfr. Part No.:
- 116-010065J
- Brand:
- Eplax
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eplax | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 15V | |
| Number of Outputs | 2 | |
| Mount Type | Screw | |
| Power | 60W | |
| SMPS Output Current | 4A | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | cUL, EN, RoHS, UL | |
| Weight | 850g | |
| Depth | 40.24mm | |
| Width | 110mm | |
| Length | 190mm | |
| Efficiency | 80% | |
| Maximum Input Voltage | 253V | |
| Series | PK | |
| Minimum Input Voltage | 115V | |
| Hazardous Area Certification | No | |
| Output Current | 4A | |
| Select all | ||
|---|---|---|
Brand Eplax | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 15V | ||
Number of Outputs 2 | ||
Mount Type Screw | ||
Power 60W | ||
SMPS Output Current 4A | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals cUL, EN, RoHS, UL | ||
Weight 850g | ||
Depth 40.24mm | ||
Width 110mm | ||
Length 190mm | ||
Efficiency 80% | ||
Maximum Input Voltage 253V | ||
Series PK | ||
Minimum Input Voltage 115V | ||
Hazardous Area Certification No | ||
Output Current 4A | ||
- COO (Country of Origin):
- DE

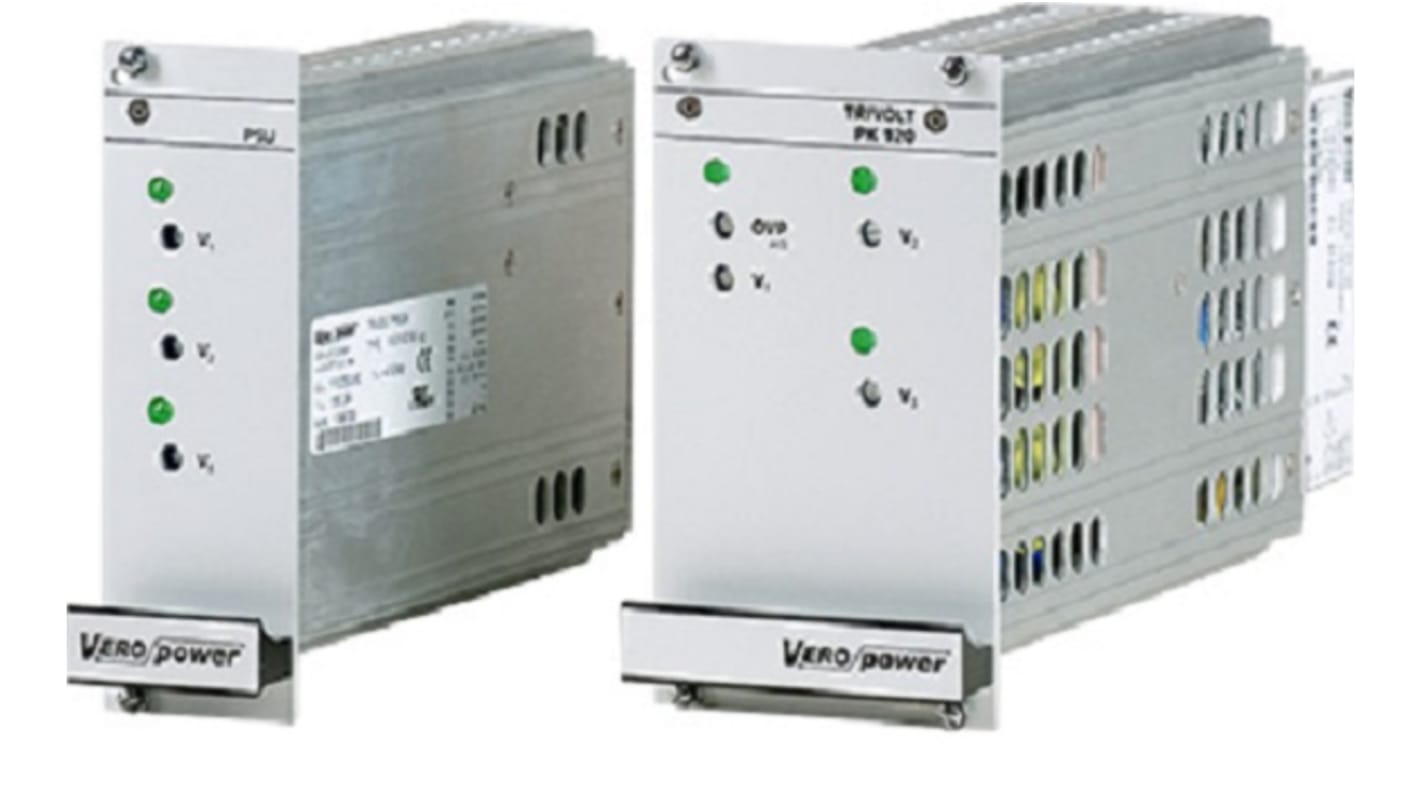

The Eplax PK series racket mount switched mode power supply has compact rugged design in stable aluminium cassette.
High regulation accuracy
Remote on/off and power fail signal
SENSE-operation and overvoltage protection
For redundant operation
Convection cooling
CE marked for compliance to EMC and Low Voltage Directives
Safety according to EN60950, UL, cUL
VERO standardised pinning
24 months warranty
