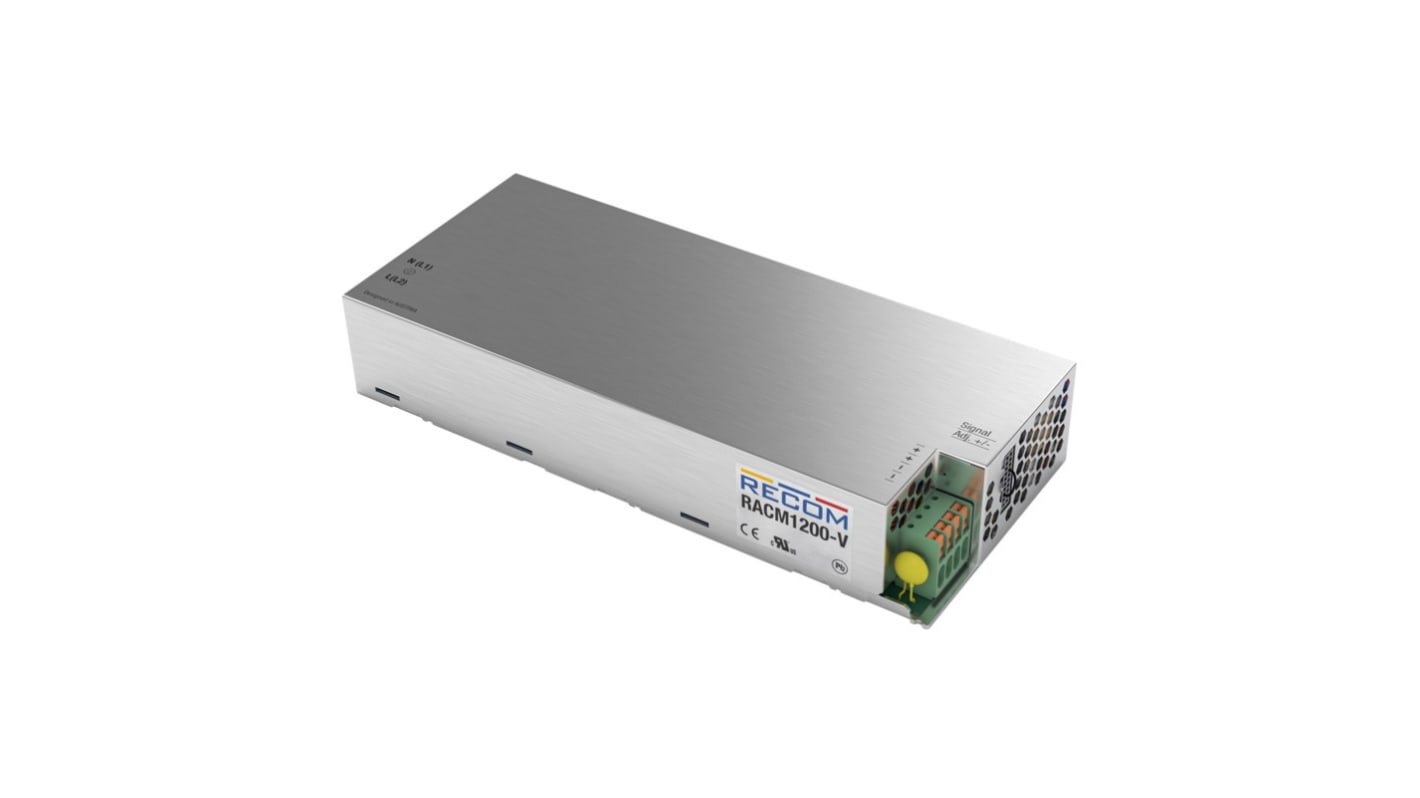

Recom Switching Power Supply, RACM1200-48SAV/ENC, 48V dc, 25A, 1.2kW, 1 Output, 85 → 264V ac Input Voltage
- RS Stock No.:
- 222-2254
- Mfr. Part No.:
- RACM1200-48SAV/ENC
- Brand:
- Recom
Bulk discount available
Subtotal (1 unit)*
£381.21
(exc. VAT)
£457.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 3 unit(s) shipping from 18 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £381.21 |
5 - 9 | £369.77 |
10 - 24 | £358.34 |
25 - 49 | £346.90 |
50 + | £335.46 |
*price indicative
- RS Stock No.:
- 222-2254
- Mfr. Part No.:
- RACM1200-48SAV/ENC
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Recom | |
Output Voltage | 48V dc | |
Output Current | 25A | |
Power Rating | 1.2kW | |
Number of Outputs | 1 | |
Input Voltage | 85 → 264V ac | |
Mounting Type | Chassis Mount | |
Package Type | Enclosed | |
Length | 228mm | |
Width | 96.2mm | |
Medical Approved | Yes | |
Depth | 40mm | |
Series | RACM1200-V | |
Efficiency | 95% | |
Maximum Temperature | +80°C | |
Weight | 1kg | |
Minimum Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Recom | ||
Output Voltage 48V dc | ||
Output Current 25A | ||
Power Rating 1.2kW | ||
Number of Outputs 1 | ||
Input Voltage 85 → 264V ac | ||
Mounting Type Chassis Mount | ||
Package Type Enclosed | ||
Length 228mm | ||
Width 96.2mm | ||
Medical Approved Yes | ||
Depth 40mm | ||
Series RACM1200-V | ||
Efficiency 95% | ||
Maximum Temperature +80°C | ||
Weight 1kg | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- AT
RECOM Switching Power Supply, Enclosed Frame, 90% Efficiency - RACM1200-VSeries - RACM1200-48SAV/ENC
Convert your AC power source to the 48V DC output your device needs with this RECOM switching power supply. The baseplate transfers heat so that you can use up to 1000W of continuous output power. Thanks to efficiency exceeding 90% from a 15% load, you can use your equipment efficiently with minimal power loss through heat. A wide operating temperature range between -40°C and +80°C means you can rely on this component to perform safely in demanding industrial environments. As it meets industrial and medical standards, you can use it in high-performance and sensitive systems.
Features & Benefits
• Boost mode allows you to increase output power to 1200W for 10 seconds
• Compact 228 (L) x 96.2 (W) x 40mm (H) size fits into smaller equipment and computer systems
• Input voltage range from 85 to 264V AC suits common power sources
• Compact 228 (L) x 96.2 (W) x 40mm (H) size fits into smaller equipment and computer systems
• Input voltage range from 85 to 264V AC suits common power sources
Applications
• Medical instruments
• IT systems
• Household appliances
• Industrial equipment
• IT systems
• Household appliances
• Industrial equipment
What's an enclosed power supply?
An enclosed power supply is protected by a metal frame to keep components in place and protect users from electric shocks.
