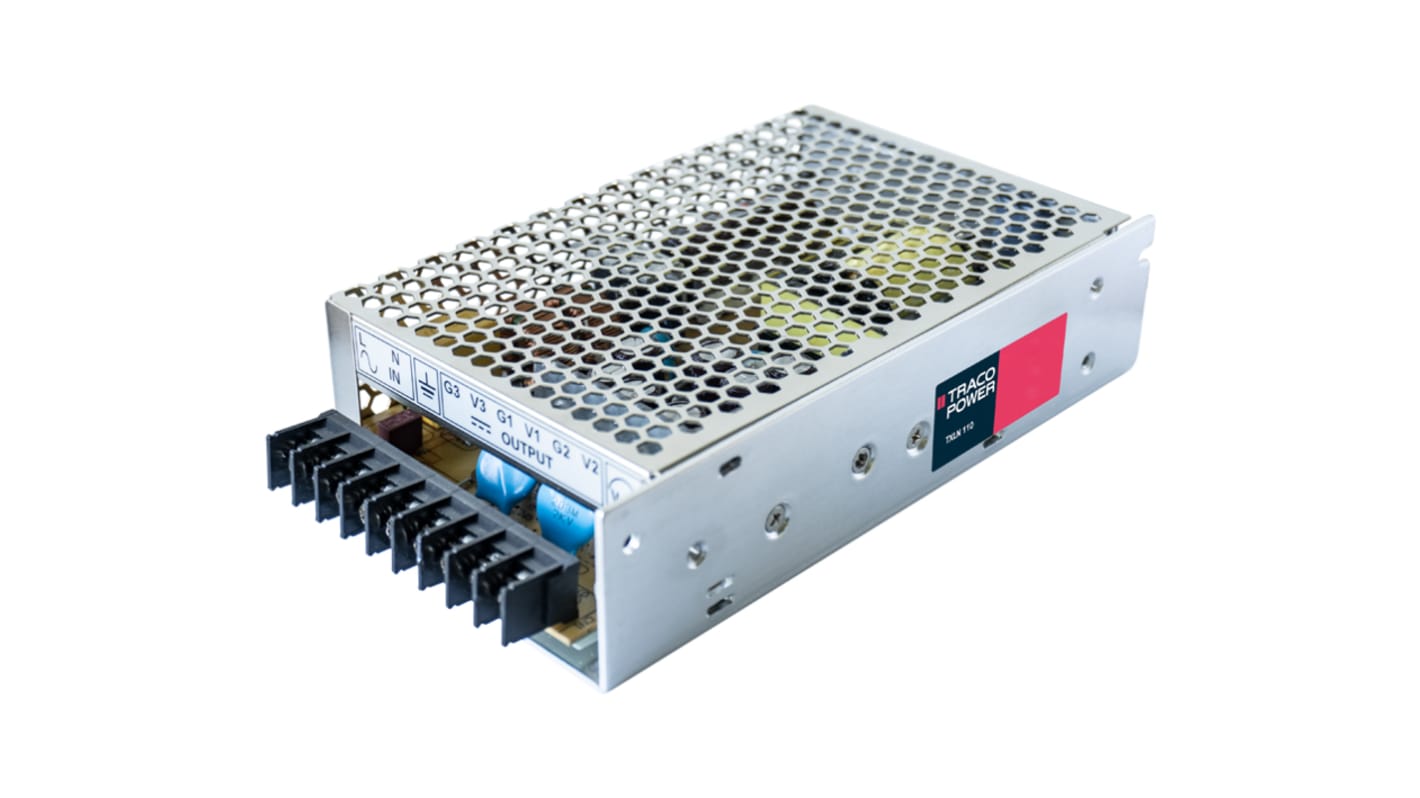

TRACOPOWER, TXLN 110-115 Switching Power Supply 15V dc, 110 W 264V ac
- RS Stock No.:
- 216-5894
- Distrelec Article No.:
- 302-25-044
- Mfr. Part No.:
- TXLN 110-115
- Brand:
- TRACOPOWER
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£52.50
(exc. VAT)
£63.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2 unit(s) shipping from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £52.50 |
| 5 - 9 | £50.93 |
| 10 - 24 | £49.35 |
| 25 - 49 | £47.25 |
| 50 + | £45.15 |
*price indicative
- RS Stock No.:
- 216-5894
- Distrelec Article No.:
- 302-25-044
- Mfr. Part No.:
- TXLN 110-115
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 15V dc | |
| Number of Outputs | 1 | |
| Power | 110W | |
| SMPS Output Current | 7.3A | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Depth | 38mm | |
| Weight | 550g | |
| Width | 95mm | |
| Standards/Approvals | UL 62368-1, REACH, EN 62368-1, EN 61000-6-3, EN 61000-4-8, EN 61000-4-6, EN 61000-4-5, EN 61000-4-4, EN 61000-4-3, EN 61000-4-2, EN 61000-4-11, EN 61000-3-3, EN 61000-3-2 Class A, EN 55032 Class B, EN 55024 | |
| Efficiency | 86% | |
| Series | TXLN | |
| Maximum Input Voltage | 264V ac | |
| Minimum Input Voltage | 88V ac | |
| Hazardous Area Certification | No | |
| Output Current | 7.3A | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 15V dc | ||
Number of Outputs 1 | ||
Power 110W | ||
SMPS Output Current 7.3A | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Depth 38mm | ||
Weight 550g | ||
Width 95mm | ||
Standards/Approvals UL 62368-1, REACH, EN 62368-1, EN 61000-6-3, EN 61000-4-8, EN 61000-4-6, EN 61000-4-5, EN 61000-4-4, EN 61000-4-3, EN 61000-4-2, EN 61000-4-11, EN 61000-3-3, EN 61000-3-2 Class A, EN 55032 Class B, EN 55024 | ||
Efficiency 86% | ||
Series TXLN | ||
Maximum Input Voltage 264V ac | ||
Minimum Input Voltage 88V ac | ||
Hazardous Area Certification No | ||
Output Current 7.3A | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW
The TRACOPOWER TXLN series is a family of encased power supplies designed for a wide range of cost critical applications. With a low profile metal case and screw terminal block connection, they are easy to install in any equipment. These power supplies have universal input and comply with European EMC standards and the Low Voltage Directive (LVD).
Compact metal case with screw terminal block
It provides short circuit, overvoltage and overload protection
Convection cooled (no-fan)
High efficiency up to 86%
