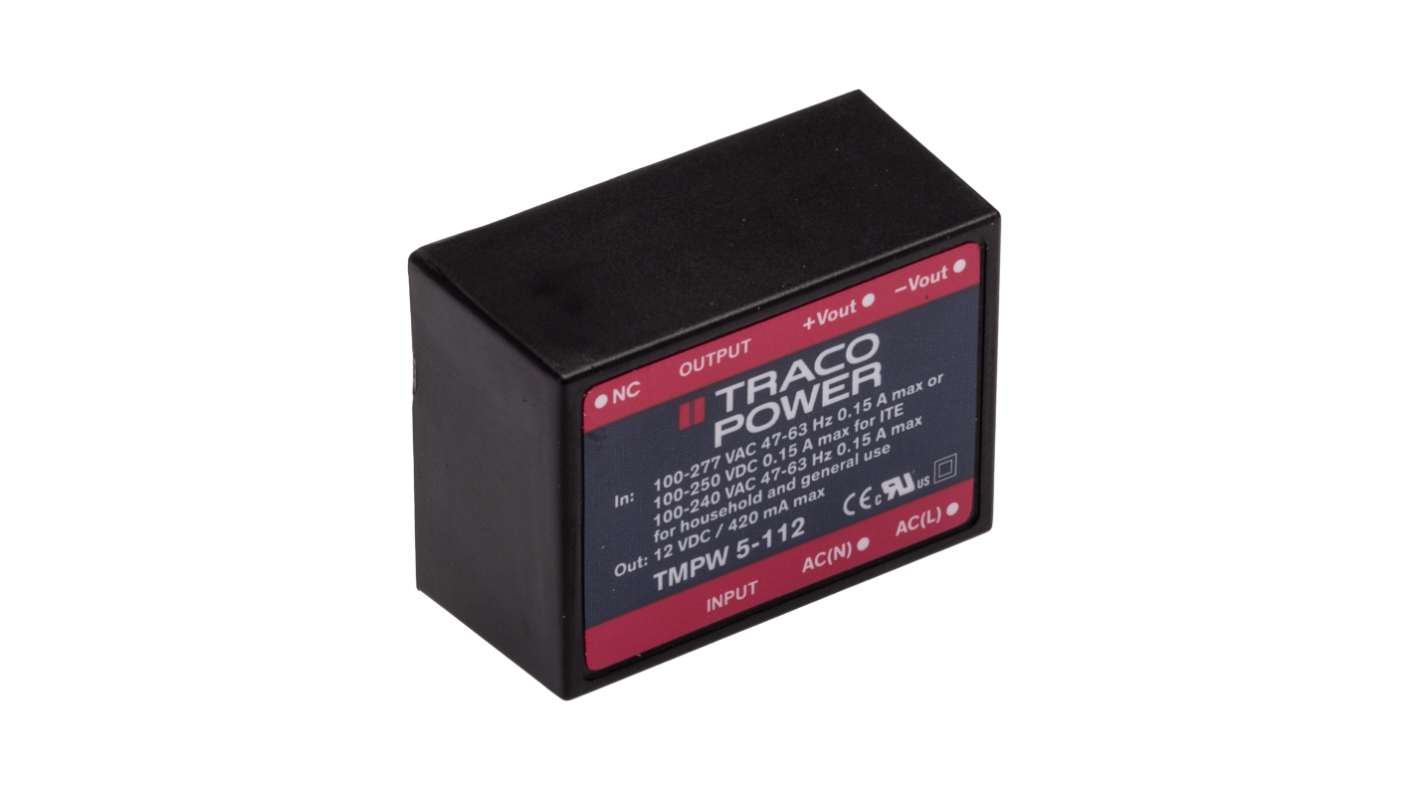

TRACOPOWER Switching Power Supply, TMPW 5-112, 12V dc, 420mA, 5W, 1 Output, 90 → 305V ac Input Voltage

View all Switching Power Supplies
Bulk discount available

Subtotal (1 unit)*

£12.78

(exc. VAT)

£15.34

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 9 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£12.78
5 - 9£12.40
10 - 24£12.02
25 - 49£11.51
50 +£11.00

*price indicative

RS Stock No.:
211-0595
Mfr. Part No.:
TMPW 5-112
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage

12V dc

Output Current

420mA

Power Rating

5W

Number of Outputs

1

Input Voltage

90 → 305V ac

Mounting Type

PCB Mount

Package Type

Encapsulated

Length

37mm

Width

27.5mm

Medical Approved

No

Depth

17.5mm

Efficiency

81%

Series

TMPW 5

Maximum Temperature

+70°C

Minimum Temperature

-40°C

Weight

24g

RoHS Status: Exempt

COO (Country of Origin):
TW

TRACOPOWER TMPW 5 Series Switching Power Supply, 37mm Length, PCB Mount - TMPW 5-112


This switching power supply is suitable for a variety of industrial and household applications. Its compact encapsulated design ensures efficient conversion of AC to DC power while providing a wide input voltage range of 90 to 305V AC. This unit is essential for powering electronic devices in a safe and stable operational environment.

Features & Benefits


• Compact design enhances space efficiency in electronic assemblies
• Wide input voltage range accommodates different power sources
• High efficiency of up to 83% lowers energy consumption
• I/O isolation voltage of 4000 V AC enhances user safety
• Operating temperature range of -40 to +70°C supports harsh environments
• Low standby power consumption meets ErP directive requirements

Applications


• Used in automation equipment for dependable power conversion
• Suitable for electrical installations in building technology
• Ideal for industrial control systems requiring space-efficient power solutions
• Commonly integrated into consumer electronics needing a 12V DC supply
• Effective for necessitating reinforced insulation compliance

What is the recommended input fuse for this product?


A 1600 mA slow blow fuse is recommended for optimal operation and should be evaluated based on specific application requirements.

How does this power supply achieve energy efficiency?


It is designed to reduce no-load input power to less than 0.1 W, thereby complying with energy regulations designed to minimise energy waste.

What is the maximum output ripple and noise for this model?


The maximum output ripple is 120 mVp-p while operating under nominal conditions, ensuring stable performance for sensitive electronic applications.
