TDK-Lambda Switching Power Supply, CUS600M-28, 28V dc, 14.3A, 600W, 1 Output, 85 → 265V ac Input Voltage
- RS Stock No.:
- 209-5799
- Mfr. Part No.:
- CUS600M-28
- Brand:
- TDK-Lambda
2 In stock - FREE next working day delivery available
Added
Price Each
£127.15
(exc. VAT)
£152.58
(inc. VAT)
| Units | Per unit |
| 1 + | £127.15 |
- RS Stock No.:
- 209-5799
- Mfr. Part No.:
- CUS600M-28
- Brand:
- TDK-Lambda
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

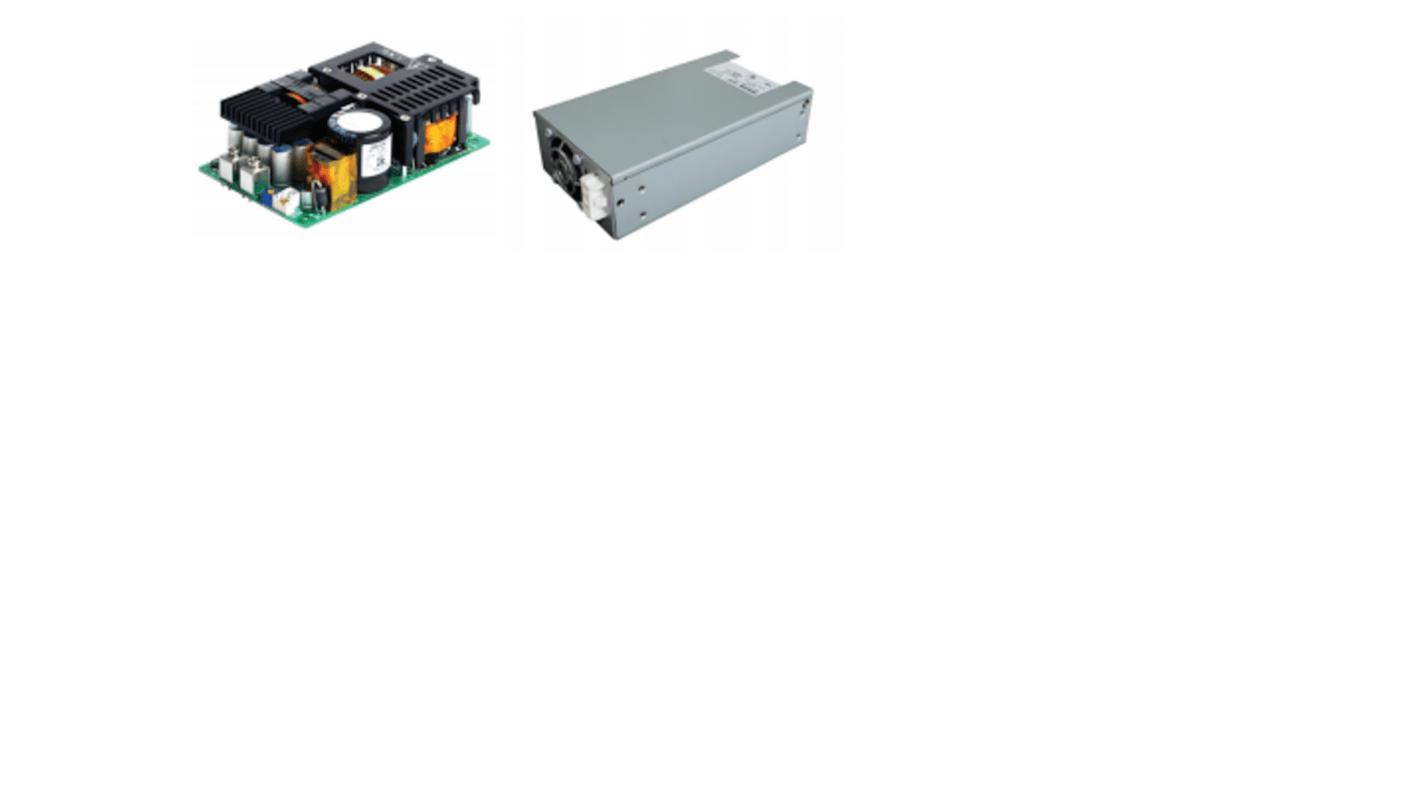

The TDK-Lambda compact CUS600M is packaged in the industry standard 3x5” footprint and can deliver 600W with forced air or 400W with a 600W peak power with convection cooling. With Medical & ITE certifications, the unit can be used in both Class I & Class II (no ground wire) applications, and meets Class B Conducted and Radiated EMI. A 5V 2A standby voltage, remote on/off, remote sense and a Power Good signal are fitted as standard. Other options, including an internal fan, are available.
400W (600W Peak) Convection Cooled 600W with Forced Air
Medical Certifications (2 x MOPP)
Class B Conducted and Radiated EMI
Suitable for Class I and Class II installations
Compact 3 x 5 x 1.46” Size
Enclosure & Other Options
Medical Certifications (2 x MOPP)
Class B Conducted and Radiated EMI
Suitable for Class I and Class II installations
Compact 3 x 5 x 1.46” Size
Enclosure & Other Options
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 28V dc |
| Output Current | 14.3A |
| Power Rating | 600W |
| Number of Outputs | 1 |
| Input Voltage | 85 → 265V ac |
| Package Type | Open Frame |
| Medical Approved | Yes |
| Series | CUS600M |
