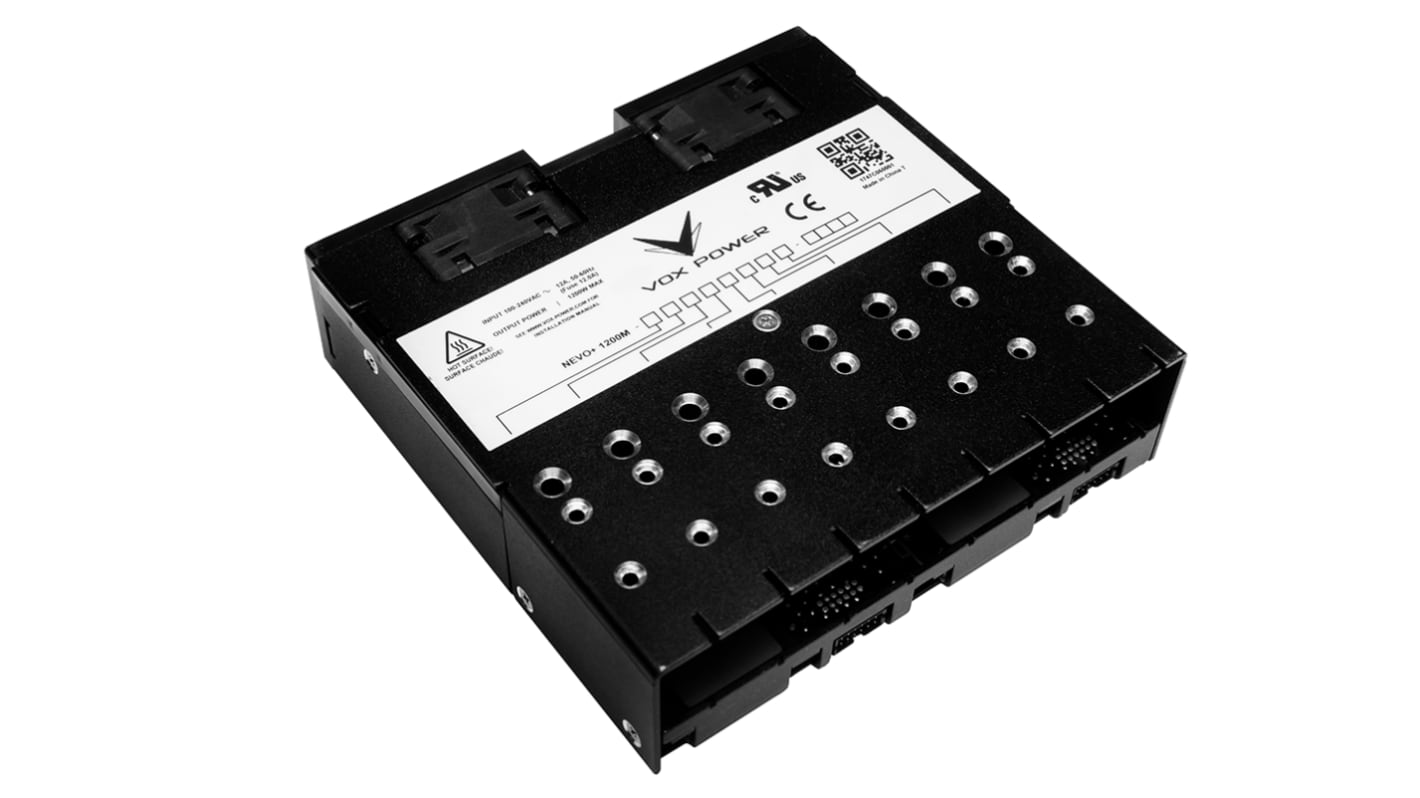

Vox Power, NEVO+1200M Switching Power Supply 16, 8 Output, 1.2 kW 370 V dc, 264V ac
- RS Stock No.:
- 190-4235
- Mfr. Part No.:
- NEVO+1200M
- Brand:
- Vox Power
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£559.99
(exc. VAT)
£671.99
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £559.99 |
| 5 - 9 | £543.19 |
| 10 - 24 | £526.39 |
| 25 - 49 | £509.59 |
| 50 + | £492.79 |
*price indicative
- RS Stock No.:
- 190-4235
- Mfr. Part No.:
- NEVO+1200M
- Brand:
- Vox Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vox Power | |
| Product Type | Switching Power Supply | |
| Number of Outputs | 16, 8 | |
| Mount Type | Bottom | |
| Power | 1.2kW | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Width | 152.4mm | |
| Weight | 1.2kg | |
| Depth | 41mm | |
| Length | 154.5mm | |
| Standards/Approvals | IEC/EN60601-1 3rd Edition, EN55022-B EMC Standards, CE MARK LVD 2014/35/EU, CAN/CSA-C22.2 No. 60601-1 (2008), ANSI/AAMI ES60601-1 (2005 + C1:09 + A2:10), UL60601-1 3rd Edition | |
| Efficiency | 89% | |
| Series | NEVO+1200M | |
| Maximum Input Voltage | 370V dc, 264V dc | |
| Hazardous Area Certification | No | |
| Minimum Input Voltage | 85V ac | |
| Select all | ||
|---|---|---|
Brand Vox Power | ||
Product Type Switching Power Supply | ||
Number of Outputs 16, 8 | ||
Mount Type Bottom | ||
Power 1.2kW | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Width 152.4mm | ||
Weight 1.2kg | ||
Depth 41mm | ||
Length 154.5mm | ||
Standards/Approvals IEC/EN60601-1 3rd Edition, EN55022-B EMC Standards, CE MARK LVD 2014/35/EU, CAN/CSA-C22.2 No. 60601-1 (2008), ANSI/AAMI ES60601-1 (2005 + C1:09 + A2:10), UL60601-1 3rd Edition | ||
Efficiency 89% | ||
Series NEVO+1200M | ||
Maximum Input Voltage 370V dc, 264V dc | ||
Hazardous Area Certification No | ||
Minimum Input Voltage 85V ac | ||
- COO (Country of Origin):
- CN
Fan Cooled 1200 Watt Configurable Power Supply Front End
