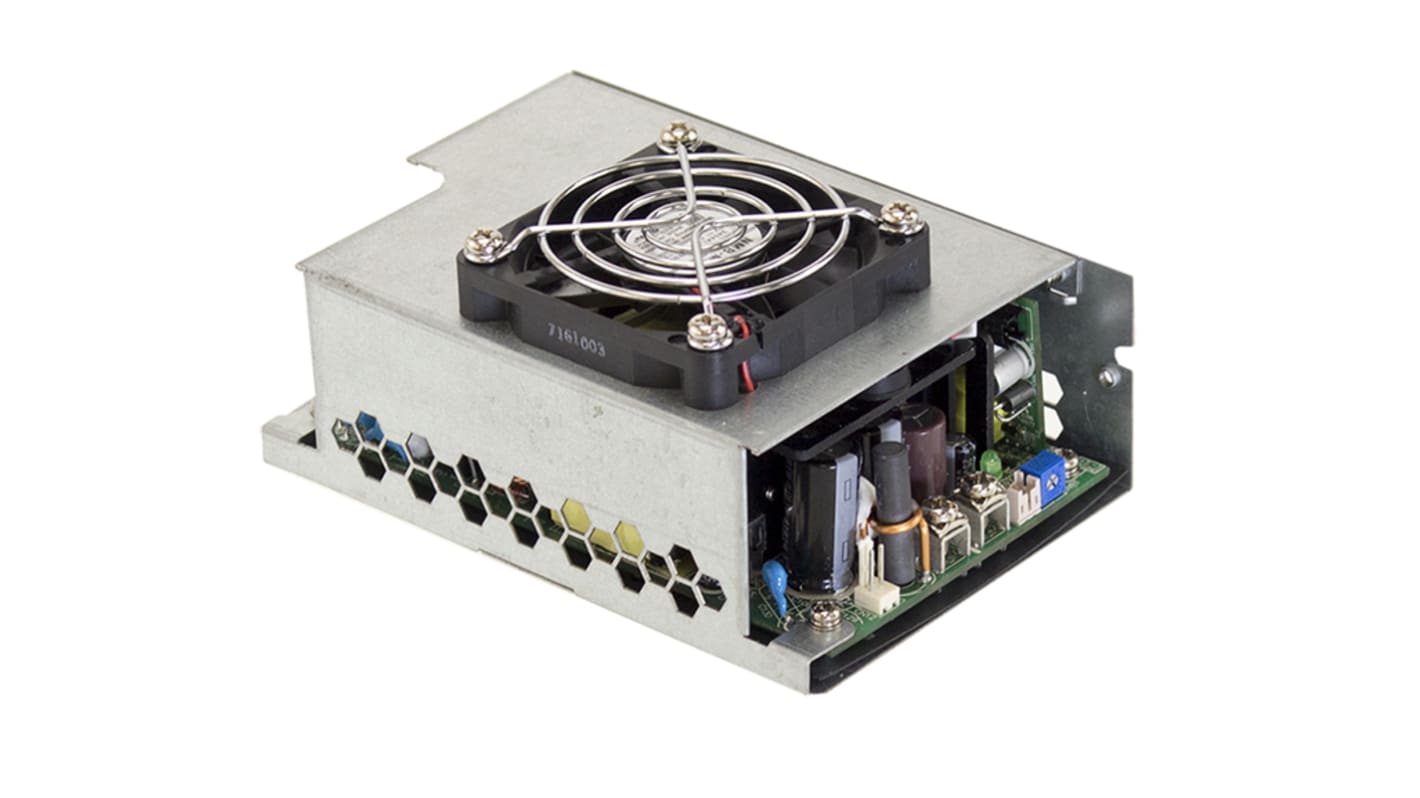

MEAN WELL Switching Power Supply, RPS-500-18-TF, 18V dc, 27.8A, 500.4W, 1 Output, 113 → 370 V dc, 80 →
- RS Stock No.:
- 187-5548
- Mfr. Part No.:
- RPS-500-18-TF
- Brand:
- MEAN WELL
10 In stock - FREE next working day delivery available
Price Each
£127.18
(exc. VAT)
£152.62
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 4 | £127.18 |
| 5 - 9 | £120.18 |
| 10 - 24 | £114.46 |
| 25 - 49 | £108.10 |
| 50 + | £101.74 |
- RS Stock No.:
- 187-5548
- Mfr. Part No.:
- RPS-500-18-TF
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RPS-500 is a 500W highly reliable green PCB type medical power supply with a high power density on the 5" by 3" footprint. It accepts 80∼264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 94% and the extremely low no power consumption is down below 0.5W. RPS-500 is able to be used for both Class I(with FG) and ClassII(no FG) system design. The extremely low leakage current is less than 220μA. RPS-500 series also offers the enclosed style models(-C/TF/SF)
High efficiency up to 94%
Protections: Short circuit / Overload / Over voltage / Over temperature
3 years warranty
Protections: Short circuit / Overload / Over voltage / Over temperature
3 years warranty
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 18V dc |
| Output Current | 27.8A |
| Power Rating | 500.4W |
| Number of Outputs | 1 |
| Input Voltage | 113 → 370 V dc, 80 → 264 V ac |
| Mounting Type | PCB Mount |
| Package Type | Enclosed |
| Length | 130mm |
| Width | 86mm |
| Medical Approved | Yes |
| Depth | 58.5mm |
| Efficiency | 92.5% |
| Series | RPS-500 |
| Weight | 580g |
| Minimum Temperature | -30°C |
| Maximum Temperature | +70°C |
