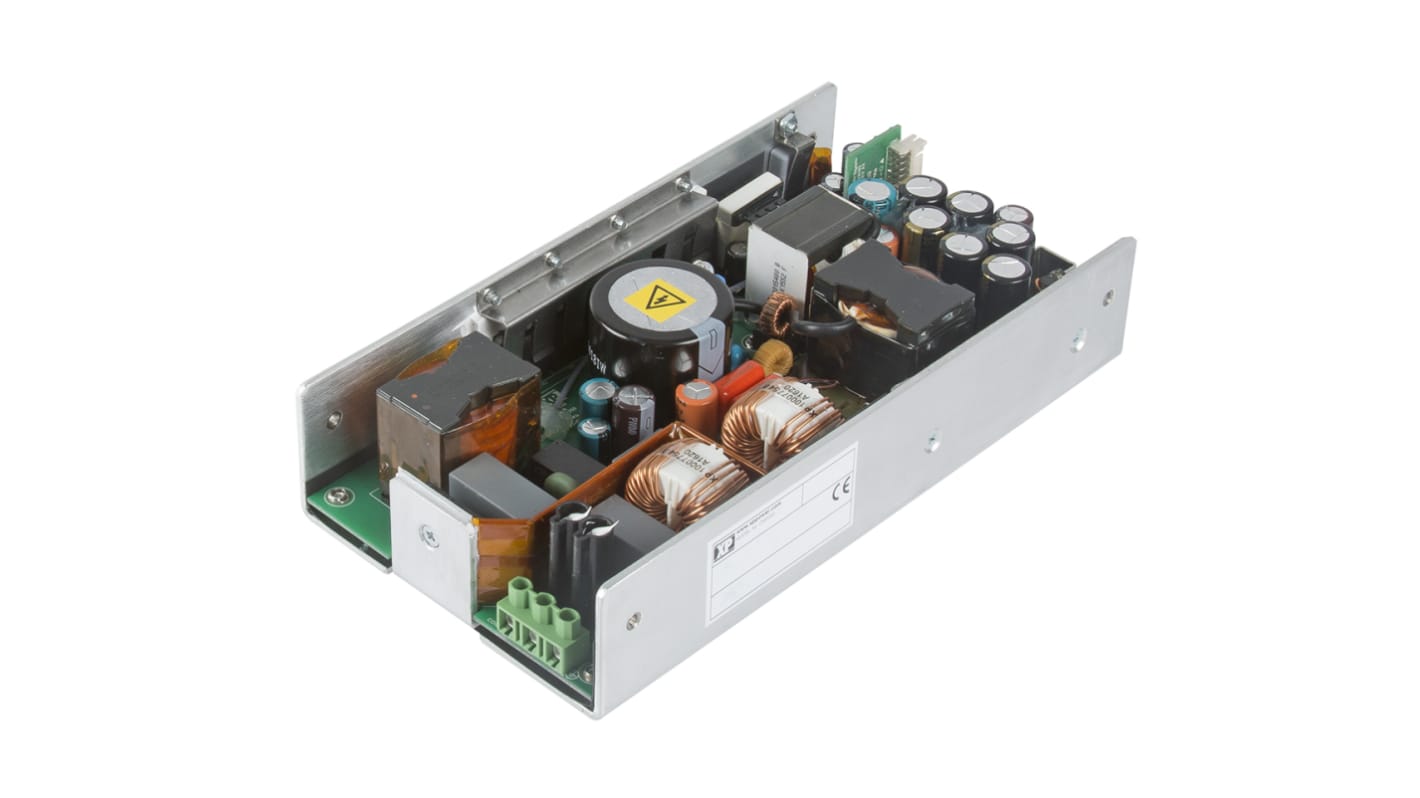

XP Power Switching Power Supply, CMP250PS48, 48V dc, 5.2 A, 10.4 A, 250 (Convection) W, 500 (Peak) W, 1 Output, 80

View all Switching Power Supplies
Discontinued
RS Stock No.:
183-2873
Mfr. Part No.:
CMP250PS48
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage

48V dc

Output Current

5.2 A, 10.4 A

Power Rating

250 (Convection) W, 500 (Peak) W

Number of Outputs

1

Input Voltage

80 → 264V ac

Mounting Type

Chassis Mount

Package Type

U Bracket

Length

190.5mm

Width

101.6mm

Medical Approved

Yes

Depth

39.9mm

Series

CMP250

Efficiency

89%

Weight

919g

Minimum Temperature

-40°C

Maximum Temperature

+70°C

COO (Country of Origin):
CN
The universal AC input CMP250 provides up to 500 W peak power and 250 W convection-cooled in a 7.5” x 4” package, over the temperature range -40 °C to +50 °C with derating to +70 °C. With a feature set including constant current overload characteristics, a 5 V/1.5 A standby output, 12 V/0.6 A auxiliary, AC OK signal, inhibit, current share the CMP250 is ideal for motors and other electromechanical loads, without the need for fan cooling, in both industrial and medical applications.

250 W Convection-cooled Rating
500 W Peak Power
U Channel 4”x 7.5” Package
80 VAC to 300 VAC Input
5 V/1.5A Standby & 12 V/0.6 A Auxiliary
AC OK Signal, Inhibit
Current Share
3 Year Warranty
