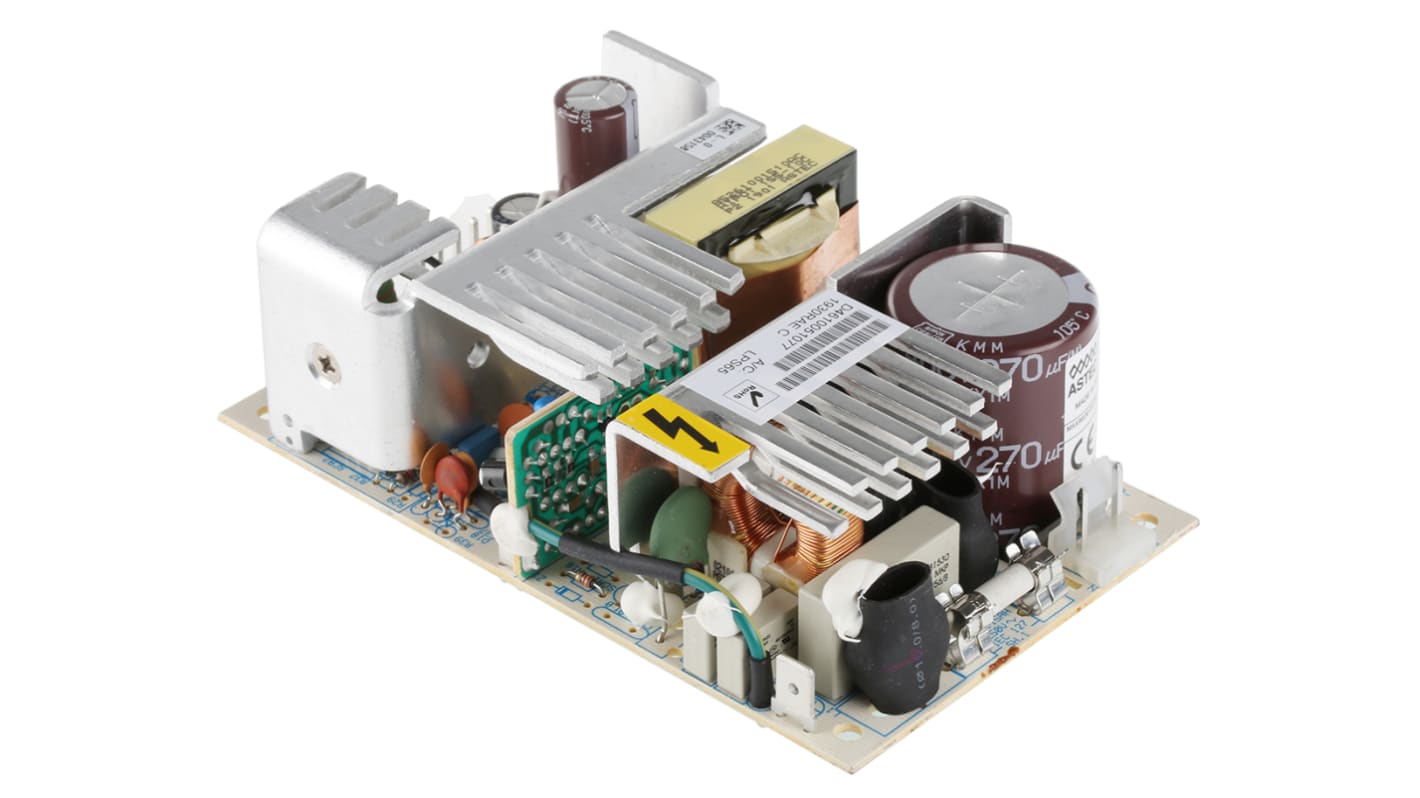

Artesyn Switching Power Supply, LPS65, 24V dc, 2.5A, 60W, 1 Output, 120 → 300 V dc, 85 → 264 V ac Input
- RS Stock No.:
- 183-0098
- Mfr. Part No.:
- LPS65
- Brand:
- Artesyn
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£17.44
(exc. VAT)
£20.93
(inc. VAT)
- RS Stock No.:
- 183-0098
- Mfr. Part No.:
- LPS65
- Brand:
- Artesyn
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Artesyn | |
Output Voltage | 24V dc | |
Output Current | 2.5A | |
Power Rating | 60W | |
Number of Outputs | 1 | |
Input Voltage | 120 → 300 V dc, 85 → 264 V ac | |
Mounting Type | Chassis Mount | |
Package Type | Open Frame | |
Length | 127mm | |
Width | 76.2mm | |
Depth | 42.9mm | |
Efficiency | 70% | |
Weight | 340g | |
Minimum Temperature | 0°C | |
Maximum Temperature | +50°C | |
Select all | ||
---|---|---|
Brand Artesyn | ||
Output Voltage 24V dc | ||
Output Current 2.5A | ||
Power Rating 60W | ||
Number of Outputs 1 | ||
Input Voltage 120 → 300 V dc, 85 → 264 V ac | ||
Mounting Type Chassis Mount | ||
Package Type Open Frame | ||
Length 127mm | ||
Width 76.2mm | ||
Depth 42.9mm | ||
Efficiency 70% | ||
Weight 340g | ||
Minimum Temperature 0°C | ||
Maximum Temperature +50°C | ||
- COO (Country of Origin):
- PH
Artesyn Embedded Technologies Embedded Switch Mode Power Supply
The Artesyn Embedded Technologies LPS65 series embedded switch-mode power supply is 60W, AC to DC plug-in device with a single output. It has a universal input supply voltage rating ranging between 85VAC and 264VAC or 120VDC and 300VDC.
Note:
Total of output loads must not exceed rating from a unit
Forced air cooling of 30CFM at 50°C increases the 25W output to 40W, the 40W to 55W and the 60W units to 80W, LPT80 units to 85W
Ratings are reduced with a cover kit
Note:
Total of output loads must not exceed rating from a unit
Forced air cooling of 30CFM at 50°C increases the 25W output to 40W, the 40W to 55W and the 60W units to 80W, LPT80 units to 85W
Ratings are reduced with a cover kit
Features and Benefits
Adjustable main output (-5 +10%)
Chassis mount
Footprint is 3in and 5in and open PCB format
Frequency range of 47Hz to 440Hz
High peak ratings for 30 seconds
In-built EMI filter (Class B)
Open frame package type
Output current is 2.5A at 24VDC
Overload protection
Overvoltage protection
Remote sensing on the main output
Chassis mount
Footprint is 3in and 5in and open PCB format
Frequency range of 47Hz to 440Hz
High peak ratings for 30 seconds
In-built EMI filter (Class B)
Open frame package type
Output current is 2.5A at 24VDC
Overload protection
Overvoltage protection
Remote sensing on the main output
Certifications
BABT
CSA certified
EN60950
EN60950
IEC950
NEMKO
UL approved
VDE
CSA certified
EN60950
EN60950
IEC950
NEMKO
UL approved
VDE
Approvals
VDE; UL Recognised; CSA Certified; NEMKO; BABT
