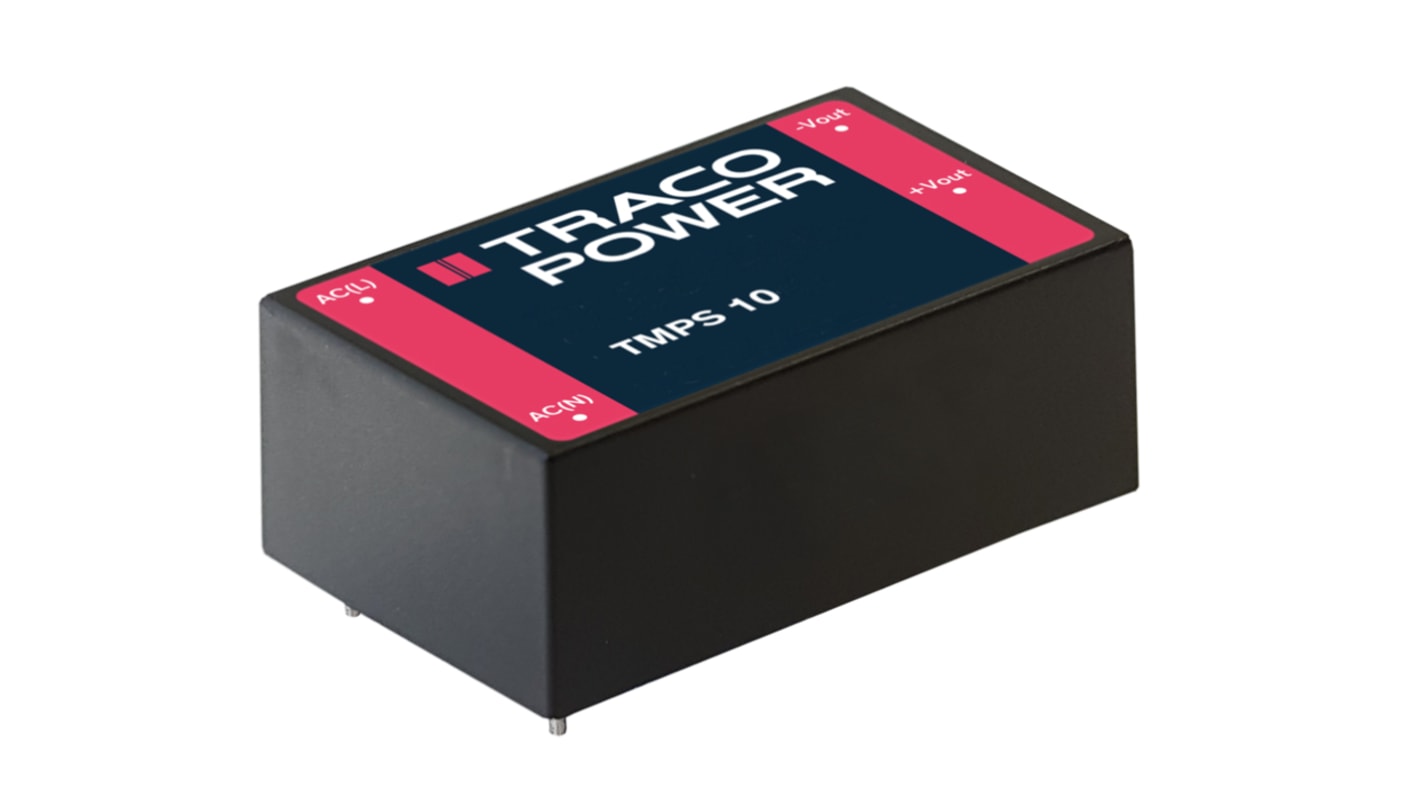

TRACOPOWER Switching Power Supply, TMPS 10-109, 9V dc, 1.1A, 10W, 1 Output, 120 → 370 V dc, 85 → 264 V ac
- RS Stock No.:
- 181-0590
- Mfr. Part No.:
- TMPS 10-109
- Brand:
- TRACOPOWER
22 In stock - FREE next working day delivery available
4 available from Europe for delivery within 2 working day(s).
Price Each
£22.20
(exc. VAT)
£26.64
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 4 | £22.20 |
| 5 - 9 | £21.53 |
| 10 - 24 | £20.87 |
| 25 - 49 | £19.98 |
| 50 + | £19.09 |
- RS Stock No.:
- 181-0590
- Mfr. Part No.:
- TMPS 10-109
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The TMPS 10 series comprises ultra compact AC/DC power supply modules in a lightweight fully encapsulated plastic casing for PCB mount. These 10 Watt modules are the ideal solution for low power or segregated circuits when space is critical or for an efficient powering of a standby mode. A peak current of 130% facilitates the activation of main circuits.
Ultra Compact 10 Watt PCB Power module in 1" x 1.5" package
Reinforced I/O isolation 4000 VAC
Operating temperature range –25°C to +70°C
Allows 130% peak current up to 30 s
Ready to meet ErP directive, < 0.15 W no load power consumption
3-year product warranty
Reinforced I/O isolation 4000 VAC
Operating temperature range –25°C to +70°C
Allows 130% peak current up to 30 s
Ready to meet ErP directive, < 0.15 W no load power consumption
3-year product warranty
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 9V dc |
| Output Current | 1.1A |
| Power Rating | 10W |
| Number of Outputs | 1 |
| Input Voltage | 120 → 370 V dc, 85 → 264 V ac |
| Mounting Type | PCB Mount |
| Package Type | Encapsulated |
| Length | 25.4mm |
| Width | 38.1mm |
| Depth | 15.74mm |
| Series | TMPS 10 |
| Efficiency | 83% |
| Weight | 29g |
| Minimum Temperature | -25°C |
| Maximum Temperature | +70°C |
