TRACOPOWER Switching Power Supply, TPP 15-105-J, 5V dc, 3A, 15W, 1 Output, 120 → 370 V dc, 85 → 264 V ac
- RS Stock No.:
- 177-0154
- Distrelec Article No.:
- 301-54-077
- Mfr. Part No.:
- TPP 15-105-J
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£39.14
(exc. VAT)
£46.97
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship
- Plus 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £39.14 |
5 - 9 | £37.96 |
10 - 24 | £36.78 |
25 - 49 | £35.23 |
50 + | £33.65 |
*price indicative
- RS Stock No.:
- 177-0154
- Distrelec Article No.:
- 301-54-077
- Mfr. Part No.:
- TPP 15-105-J
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | 5V dc | |
Output Current | 3A | |
Power Rating | 15W | |
Number of Outputs | 1 | |
Input Voltage | 120 → 370 V dc, 85 → 264 V ac | |
Mounting Type | Screw Mount | |
Package Type | Enclosed | |
Length | 71.7mm | |
Width | 28.9mm | |
Medical Approved | Yes | |
Embedded | No | |
Depth | 20.9mm | |
Series | TPP 15-J | |
Efficiency | 86% | |
Minimum Temperature | -40°C | |
Weight | 48g | |
Maximum Temperature | +85°C | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage 5V dc | ||
Output Current 3A | ||
Power Rating 15W | ||
Number of Outputs 1 | ||
Input Voltage 120 → 370 V dc, 85 → 264 V ac | ||
Mounting Type Screw Mount | ||
Package Type Enclosed | ||
Length 71.7mm | ||
Width 28.9mm | ||
Medical Approved Yes | ||
Embedded No | ||
Depth 20.9mm | ||
Series TPP 15-J | ||
Efficiency 86% | ||
Minimum Temperature -40°C | ||
Weight 48g | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- TW

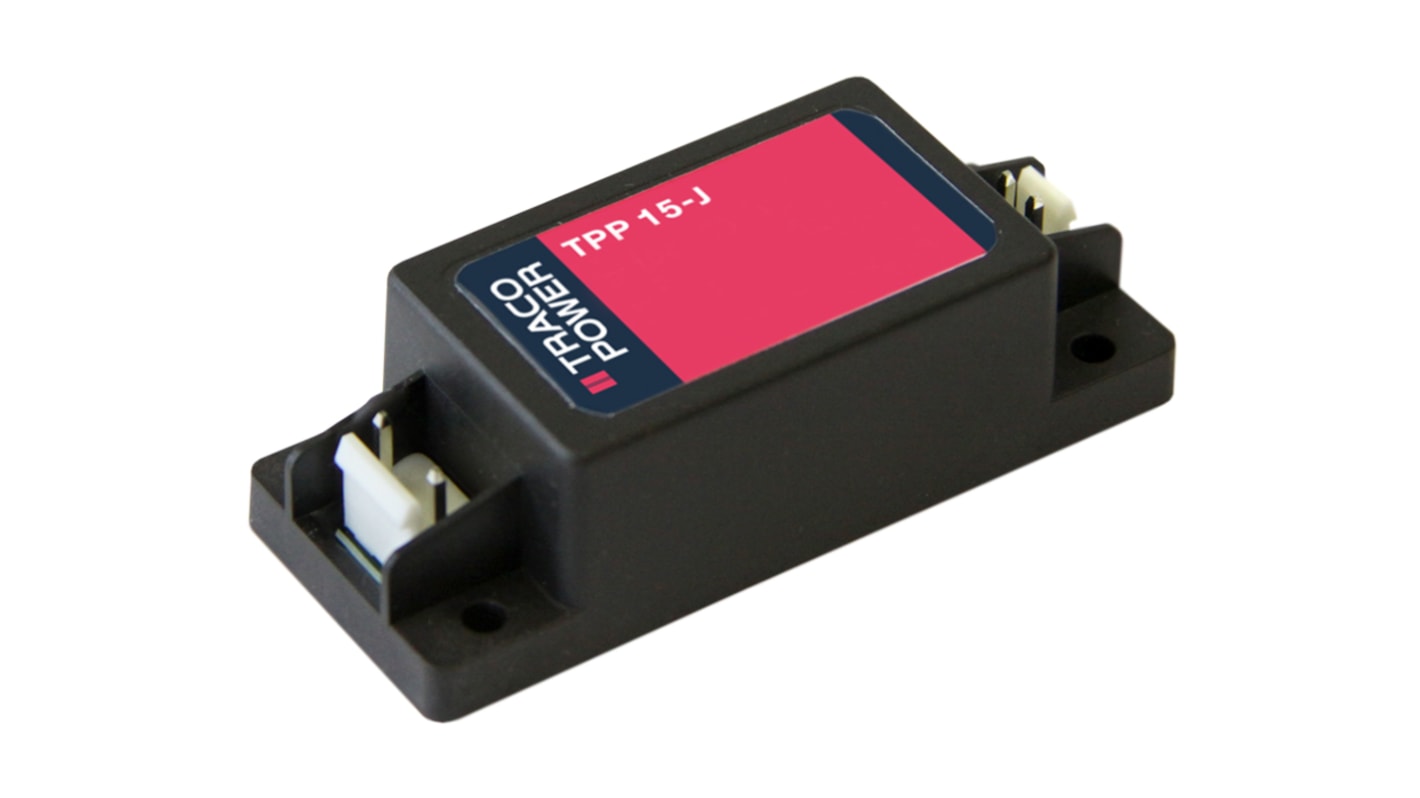

Traco Power Switching Power Supply, Screw Mount, 5VDC Output Voltage - TPP 15-105-J
This is a 15W medical approved switching power supply that offers high power density in a compact, encapsulated package. It is certified according to IEC/EN/ES 60601 1 3rd edition for 2 x MOPP and meets the latest medical safety standards. With a low leakage current rated for BF applications, this power supply is suitable for a wide range of medical and industrial uses.
Features & Benefits
• High power density
• Certification for 2 x MOPP
• EMC compliance to latest standards
• Efficient power delivery up to 88.5%
• Operating temperature range from -40°C to +85°C
• Earth leakage current below 75μA
• Reinforced double I/O isolation system
• Compact packaging format
• Encapsulated design for enhanced safety
• Ideal for body floating applications
• Certification for 2 x MOPP
• EMC compliance to latest standards
• Efficient power delivery up to 88.5%
• Operating temperature range from -40°C to +85°C
• Earth leakage current below 75μA
• Reinforced double I/O isolation system
• Compact packaging format
• Encapsulated design for enhanced safety
• Ideal for body floating applications
Applications
• Medical devices
• Industrial electronics
• Automation systems
• Electrical equipment
• Mechanical tools
• Industrial electronics
• Automation systems
• Electrical equipment
• Mechanical tools
Can it operate in high temperature environments?
The Traco Power TPP 15-105-J is designed to operate in temperatures ranging from -40°C to +85°C, making it suitable for use in various industrial applications.
Is it suitable for compact installations?
With its compact design and high power density, it is perfect for applications where space is limited and efficiency is essential.
