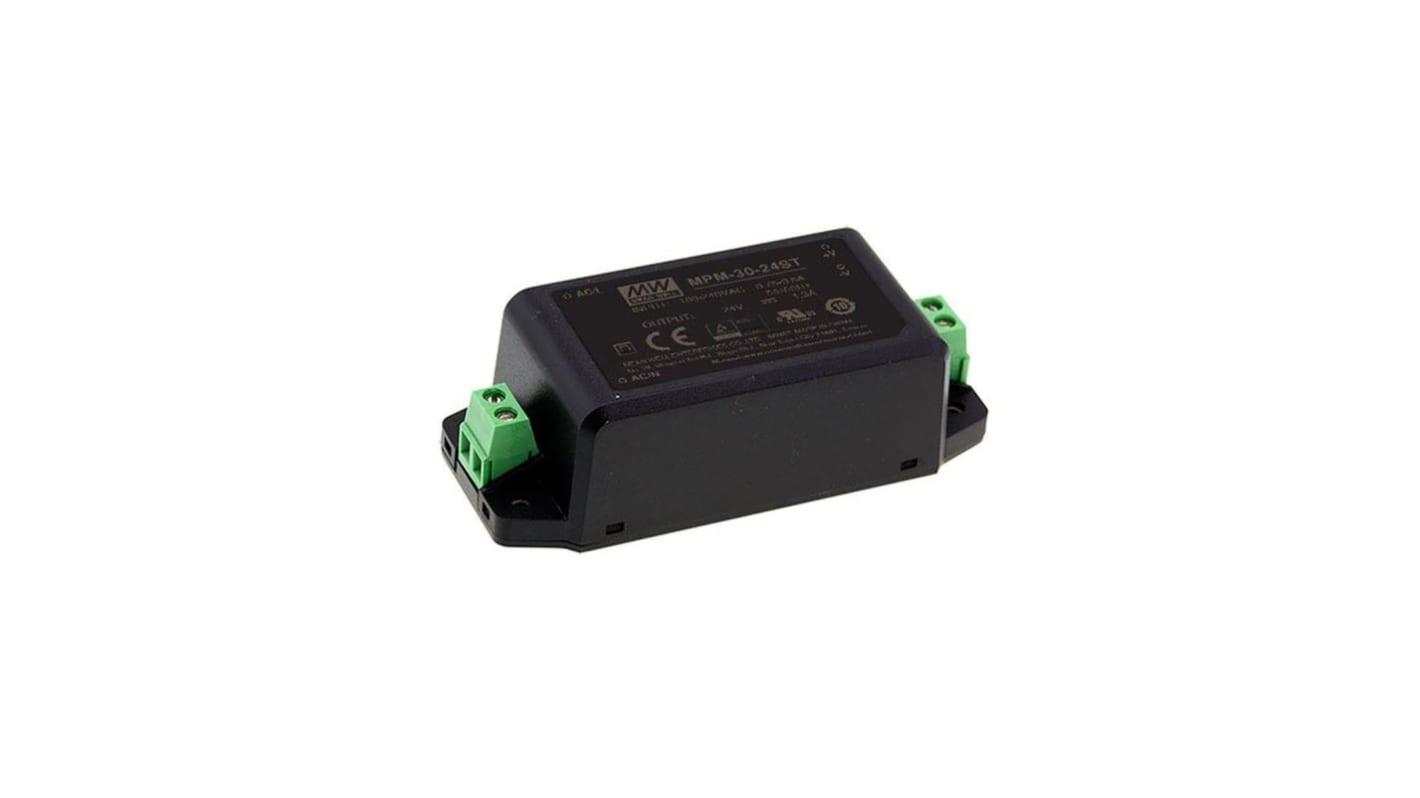

MEAN WELL Switching Power Supply, MPM-30-48ST, 48V dc, 630mA, 30.2W, 1 Output, 80 → 264V ac Input Voltage

View all Switching Power Supplies
Bulk discount available

Subtotal (1 unit)*

£19.26

(exc. VAT)

£23.11

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 20 unit(s) ready to ship
  • Plus 999,999,979 unit(s) shipping from 05 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£19.26
5 - 9£18.67
10 - 24£18.10
25 - 49£17.52
50 +£16.94

*price indicative

RS Stock No.:
174-8079
Mfr. Part No.:
MPM-30-48ST
Brand:
MEAN WELL
Find similar products by selecting one or more attributes.
Select all

Brand

MEAN WELL

Output Voltage

48V dc

Output Current

630mA

Power Rating

30.2W

Number of Outputs

1

Input Voltage

80 → 264V ac

Mounting Type

Chassis Mount

Package Type

Encapsulated

Length

91mm

Width

39.5mm

Medical Approved

Yes

Depth

28.5mm

Weight

120g

Maximum Temperature

+85°C

Minimum Temperature

-40°C

COO (Country of Origin):
CN
2.73"x1.53" compact size

Suitable for BF application with appropriate system consideration
No load power consumption<0.075W
Extremely low leakage current
Wide operating temp. Range -40 ∼ +85℃
EMI class B for class Ⅱ configuration
Protections: Short circuit / Overload / Over voltage
No minimum load required
3 years warranty
Applications
Portable medical device
Mobile clinical workstation
Medical computer monitor
Medical examination instrument

AC-DC Single output Medical Encapsulated power supply. Output 48Vdc at 0.63A, Screw terminal block, 2xMOPP
