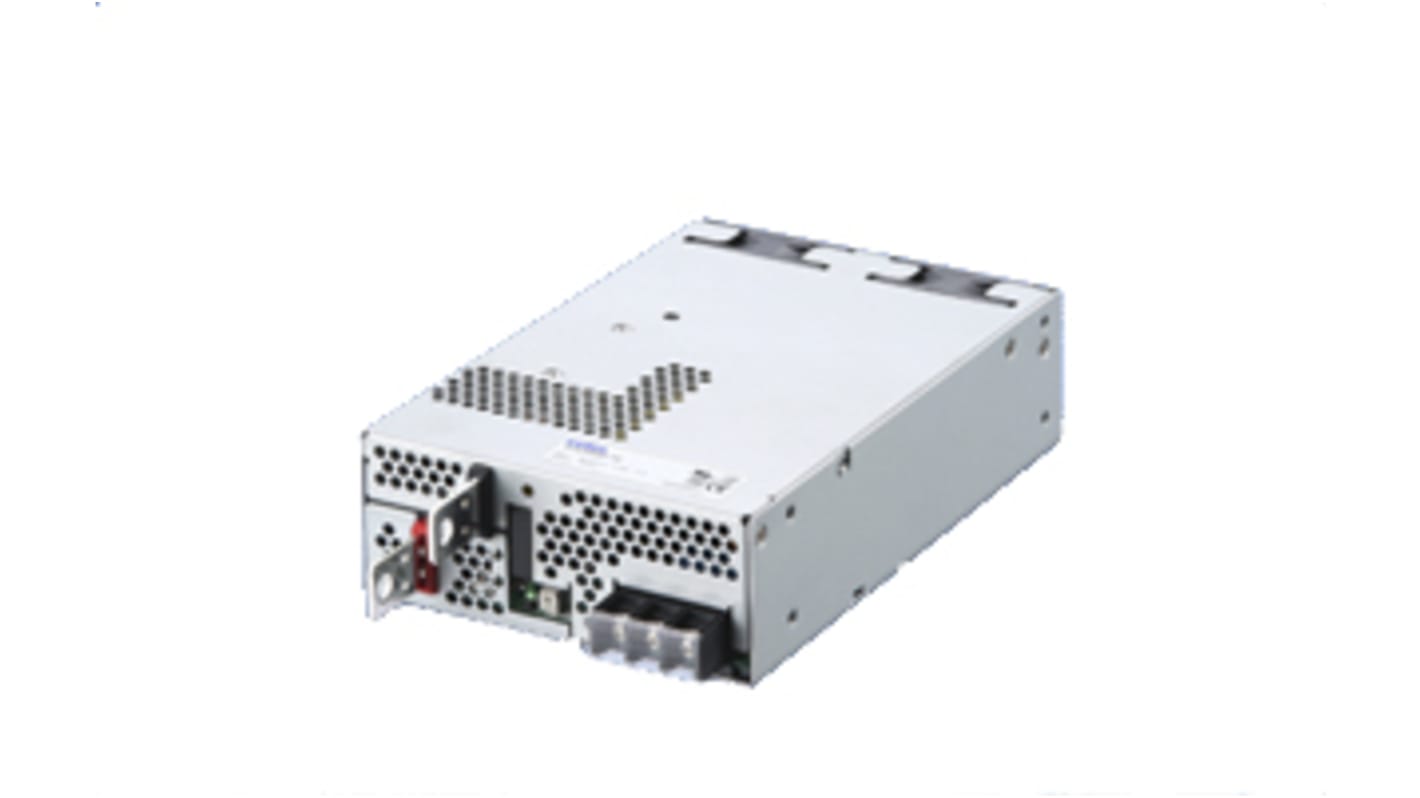

Cosel Switching Power Supply, PJA1000F-48, 48V dc, 21A, 1kW, 1 Output, 85 → 264V ac Input Voltage
- RS Stock No.:
- 171-1515
- Mfr. Part No.:
- PJA1000F-48
- Brand:
- Cosel
1 In stock - FREE next working day delivery available
Added
Price Each
£270.28
(exc. VAT)
£324.34
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £270.28 |
| 5 - 9 | £262.17 |
| 10 - 24 | £256.77 |
| 25 - 49 | £251.36 |
| 50 + | £245.95 |
- RS Stock No.:
- 171-1515
- Mfr. Part No.:
- PJA1000F-48
- Brand:
- Cosel
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Make sure necessary tests will be carried out on your end equipment with the power supply installed in accordance with any required EMC/EMI regulations.
Economical design
Wide temperature range (-20℃ to +70℃, Derating is required)
Harmonic attenuator
Universal input (AC85-264V, Derating is required)
Various option
Compact design 25% smaller (Compared with PBA series)
Low power consumption (1.5W typ AC240Vin at no load)
Optional connector (Vertical terminal block, Header connector)
Low profile design
PJA100F, 150F, 300F(1U size)
PJA600F , 1000F, 1500F(2U size)
Wide temperature range (-20℃ to +70℃, Derating is required)
Harmonic attenuator
Universal input (AC85-264V, Derating is required)
Various option
Compact design 25% smaller (Compared with PBA series)
Low power consumption (1.5W typ AC240Vin at no load)
Optional connector (Vertical terminal block, Header connector)
Low profile design
PJA100F, 150F, 300F(1U size)
PJA600F , 1000F, 1500F(2U size)
Make sure necessary tests will be carried out on your end equipment with the power supply installed in accordance with any required EMC/EMI regulations.
Cost-effective
Longer life (see Instruction Manual)
Low profile (meets 2U height = 61 mm or 2.40 inches)
Wide operating temperature range (-20 to +70 see instruction manual)
Stop or Slow fan speed at no load
Longer life (see Instruction Manual)
Low profile (meets 2U height = 61 mm or 2.40 inches)
Wide operating temperature range (-20 to +70 see instruction manual)
Stop or Slow fan speed at no load
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 48V dc |
| Output Current | 21A |
| Power Rating | 1kW |
| Number of Outputs | 1 |
| Input Voltage | 85 → 264V ac |
| Mounting Type | Chassis Mount |
| Package Type | Enclosed |
| Length | 244mm |
| Width | 150mm |
| Depth | 61mm |
| Efficiency | 88% |
| Maximum Temperature | +70°C |
| Weight | 2.8kg |
| Minimum Temperature | -20°C |
