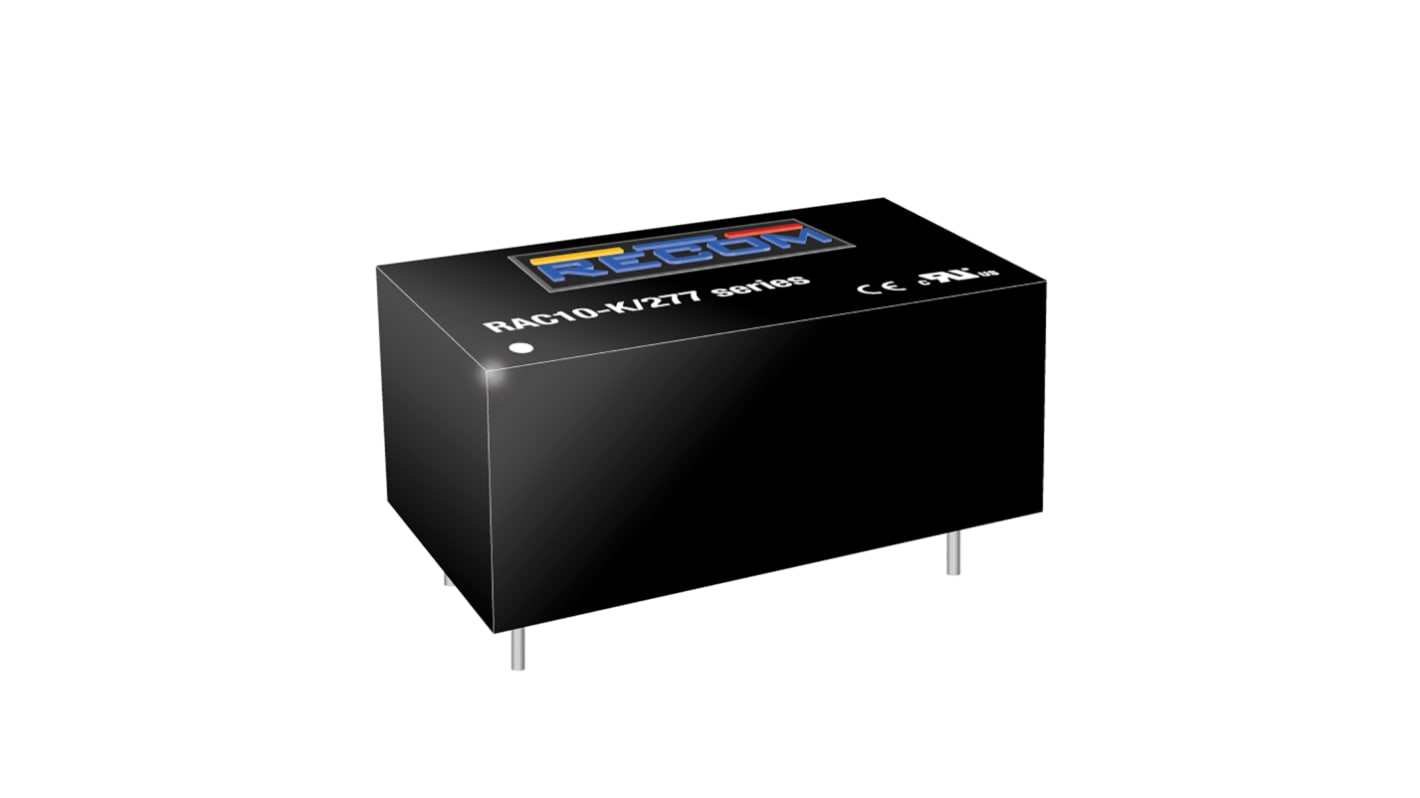

Recom Switching Power Supply 24V dc, 10 W 305V ac
- RS Stock No.:
- 165-4965
- Mfr. Part No.:
- RAC10-24SK/277
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 15 units)*
£161.03
(exc. VAT)
£193.24
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 2 unit(s) shipping from 30 September 2026
- Plus 2 unit(s) shipping from 19 November 2026
- Plus 3 unit(s) shipping from 25 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £161.03 | £10.735 |
| 5 - 9 | £156.20 | £10.413 |
| 10 - 24 | £151.37 | £10.091 |
| 25 - 49 | £146.54 | £9.769 |
| 50 + | £141.71 | £9.447 |
*price indicative
- RS Stock No.:
- 165-4965
- Mfr. Part No.:
- RAC10-24SK/277
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 24V dc | |
| Number of Outputs | 1 | |
| Mount Type | PCB | |
| Power | 10W | |
| SMPS Output Current | 420mA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Length | 52.5mm | |
| Weight | 65g | |
| Standards/Approvals | EN 61000-4-3, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, RoHS, UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, EN 55022 Class B, EN 55024, EN 60950-1, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-4 | |
| Width | 27.4mm | |
| Depth | 23mm | |
| Efficiency | 84% | |
| Maximum Input Voltage | 305V ac | |
| Series | RAC10-K/277 | |
| Minimum Input Voltage | 85V ac | |
| Hazardous Area Certification | No | |
| Output Current | 420mA | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 24V dc | ||
Number of Outputs 1 | ||
Mount Type PCB | ||
Power 10W | ||
SMPS Output Current 420mA | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Length 52.5mm | ||
Weight 65g | ||
Standards/Approvals EN 61000-4-3, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, RoHS, UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, EN 55022 Class B, EN 55024, EN 60950-1, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-4 | ||
Width 27.4mm | ||
Depth 23mm | ||
Efficiency 84% | ||
Maximum Input Voltage 305V ac | ||
Series RAC10-K/277 | ||
Minimum Input Voltage 85V ac | ||
Hazardous Area Certification No | ||
Output Current 420mA | ||
- COO (Country of Origin):
- CN
RECOM Switching Power Supply, 330μF Maximum Capacitive Load, PCB Mounting - RAC10-K/277 Series - RAC10-24SK/277
Take charge of energy delivery to your PCB-linked components with this switching power supply from RECOM. It converts the mains supply AC voltage to a balanced 24V DC output that's just right for low-power devices like relays. Thanks to its hiccup function, it cuts the input in the event of a short circuit and restarts automatically when the fault is cleared. As well as cutting out the need for manual resetting, this prevents electric shocks and fire outbreaks to improve safety. As this power conversion module performs optimally in a temperature range between -40°C and +80°C, it's a reliable choice for use in demanding conditions.
• Mean time between failures of 450,000 hours at +25°C for long-term performance
• Stops burning in 10 seconds or less in the event of a fire, making it suitable for sensitive work areas
• Compact dimensions of 52.5 (L) x 27.4 (W) x 23mm (H) for installation in setups with limited space
Applications
• Consumer electronics
• Testing laboratories
• Medical devices
• Military equipment
How efficient is this switching power supply?
This unit is 84% efficient, so it puts most of the power supply to use and loses little to heat.
