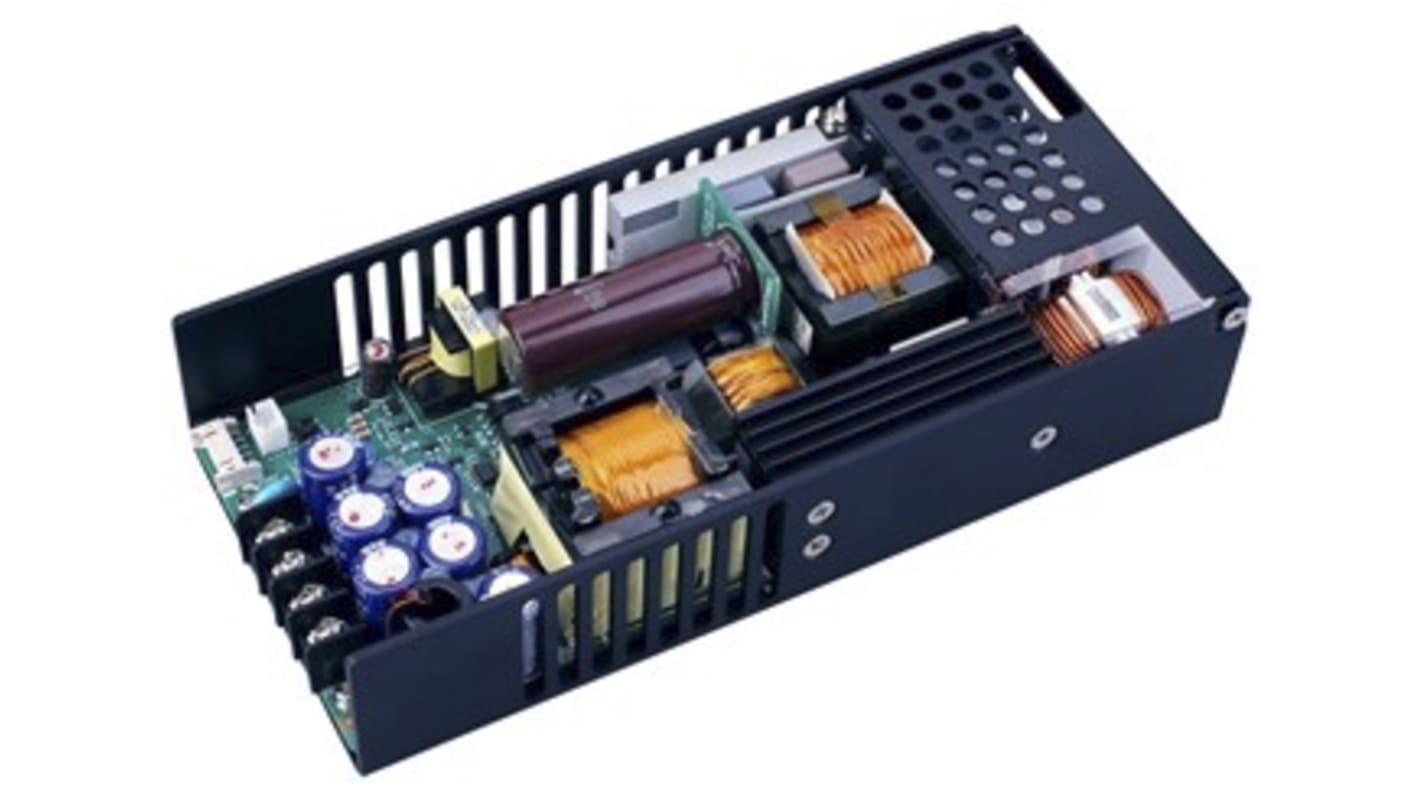

TDK-Lambda Switching Power Supply, CUS150M-12 12V dc, 10A, 120 W, Input 85V ac to 264V ac
- RS Stock No.:
- 165-1428
- Distrelec Article No.:
- 301-36-542
- Mfr. Part No.:
- CUS150M-12
- Brand:
- TDK-Lambda
Bulk discount available
Subtotal (1 unit)*
£65.39
(exc. VAT)
£78.47
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £65.39 |
| 5 - 9 | £63.42 |
| 10 - 24 | £61.47 |
| 25 - 49 | £59.51 |
| 50 + | £57.54 |
*price indicative
- RS Stock No.:
- 165-1428
- Distrelec Article No.:
- 301-36-542
- Mfr. Part No.:
- CUS150M-12
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK-Lambda | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 12V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 120W | |
| SMPS Output Current | 10A | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 50.8mm | |
| Standards/Approvals | IEC/UL/CSA/EN 62368-1, IEC 61000-4-8 (lv 4), IEC 61000-4-6 (lv 3), IEC 61000-4-5 (lv 3,4), IEC 61000-4-4 (lv 3), IEC 61000-4-3 (lv3), IEC 61000-4-2 (lv 2,3), IEC 61000-4-11, FCC-B, EN 55022-B, CE | |
| Length | 101.6mm | |
| Weight | 185g | |
| Depth | 28.8mm | |
| Efficiency | 90% | |
| Series | CUS150M | |
| Maximum Input Voltage | 264V ac | |
| Hazardous Area Certification | NO | |
| Output Current | 10A | |
| Minimum Input Voltage | 85V ac | |
| Select all | ||
|---|---|---|
Brand TDK-Lambda | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 12V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 120W | ||
SMPS Output Current 10A | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 85°C | ||
Width 50.8mm | ||
Standards/Approvals IEC/UL/CSA/EN 62368-1, IEC 61000-4-8 (lv 4), IEC 61000-4-6 (lv 3), IEC 61000-4-5 (lv 3,4), IEC 61000-4-4 (lv 3), IEC 61000-4-3 (lv3), IEC 61000-4-2 (lv 2,3), IEC 61000-4-11, FCC-B, EN 55022-B, CE | ||
Length 101.6mm | ||
Weight 185g | ||
Depth 28.8mm | ||
Efficiency 90% | ||
Series CUS150M | ||
Maximum Input Voltage 264V ac | ||
Hazardous Area Certification NO | ||
Output Current 10A | ||
Minimum Input Voltage 85V ac | ||
- COO (Country of Origin):
- CN
30 to 420W Medical & ITE Power Supplies
High Efficiency, up to 94%
Low Profile
Convection Cooled and Forced Air Ratings
5V Standby Output, 12V Fan Supply (CUS350M)
Three year warranty
Complies with IEC60601-1-2 Ed4 EMC
Compact Sizes: CUS30M/60M 2x3", CUS150M 2x4", CUS200M 3x5", CUS350M 3.4x7.5"
