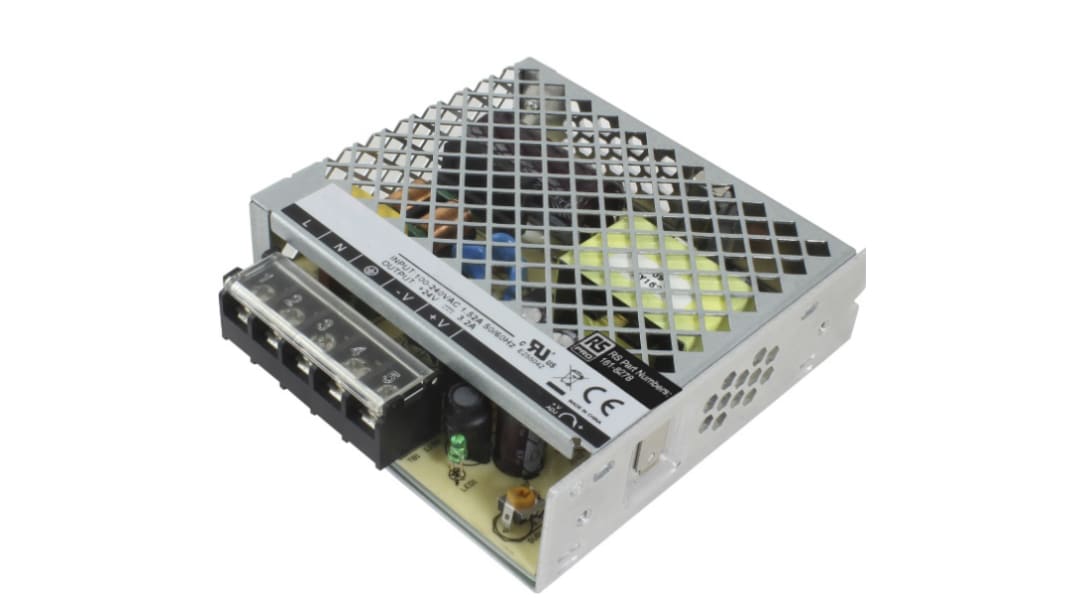

RS PRO Switching Power Supply, 5V dc, 14A, 60W, 1 Output, 100 → 240V ac Input Voltage
- RS Stock No.:
- 161-8284
- Brand:
- RS PRO
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 161-8284
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Output Voltage | 5V dc | |
Output Current | 14A | |
Power Rating | 60W | |
Number of Outputs | 1 | |
Input Voltage | 100 → 240V ac | |
Mounting Type | Chassis Mount | |
Package Type | Enclosed | |
Length | 97mm | |
Width | 99mm | |
Depth | 30mm | |
Efficiency | 84% | |
Maximum Temperature | +50°C | |
Minimum Temperature | -30°C | |
Weight | 300g | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Output Voltage 5V dc | ||
Output Current 14A | ||
Power Rating 60W | ||
Number of Outputs 1 | ||
Input Voltage 100 → 240V ac | ||
Mounting Type Chassis Mount | ||
Package Type Enclosed | ||
Length 97mm | ||
Width 99mm | ||
Depth 30mm | ||
Efficiency 84% | ||
Maximum Temperature +50°C | ||
Minimum Temperature -30°C | ||
Weight 300g | ||
- COO (Country of Origin):
- CN
70 W Single Output Enclosed Power Supply
The 75 W enclosed power supply range from RS Pro has been specially designed to offer high efficiency, long life and high reliability for use in a variety of applications. This range comprises of 6 models with outputs of either 5 V, 12 V, 15 V, 24 V, 36 V or 48 V. Each model is RoHS, CE, UL approved and comes with a three year warranty.
Features and Benefits
No Load Power Consumption <0.3 W
Rated current 14 A
DC Voltage 5 V
Small Compact Design
Cooling by free air convection
High efficiency
Long life and high reliability
3-Year Warranty
Universal Input
Able to withstand 5G Vibration Test
UL & CE Approved
Rated current 14 A
DC Voltage 5 V
Small Compact Design
Cooling by free air convection
High efficiency
Long life and high reliability
3-Year Warranty
Universal Input
Able to withstand 5G Vibration Test
UL & CE Approved
