RS PRO Switching Power Supply, 27.6V dc, 5A, 140W, Dual Output, 195 → 253V ac Input Voltage

View all Switching Power Supplies
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
161-8268
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Output Voltage

27.6V dc

Output Current

5A

Power Rating

140W

Number of Outputs

2

Input Voltage

195 → 253V ac

Mounting Type

Chassis Mount

Package Type

Enclosed

Length

200mm

Width

110mm

Depth

50mm

Maximum Temperature

+45°C

Weight

900g

Minimum Temperature

0°C

COO (Country of Origin):
CN

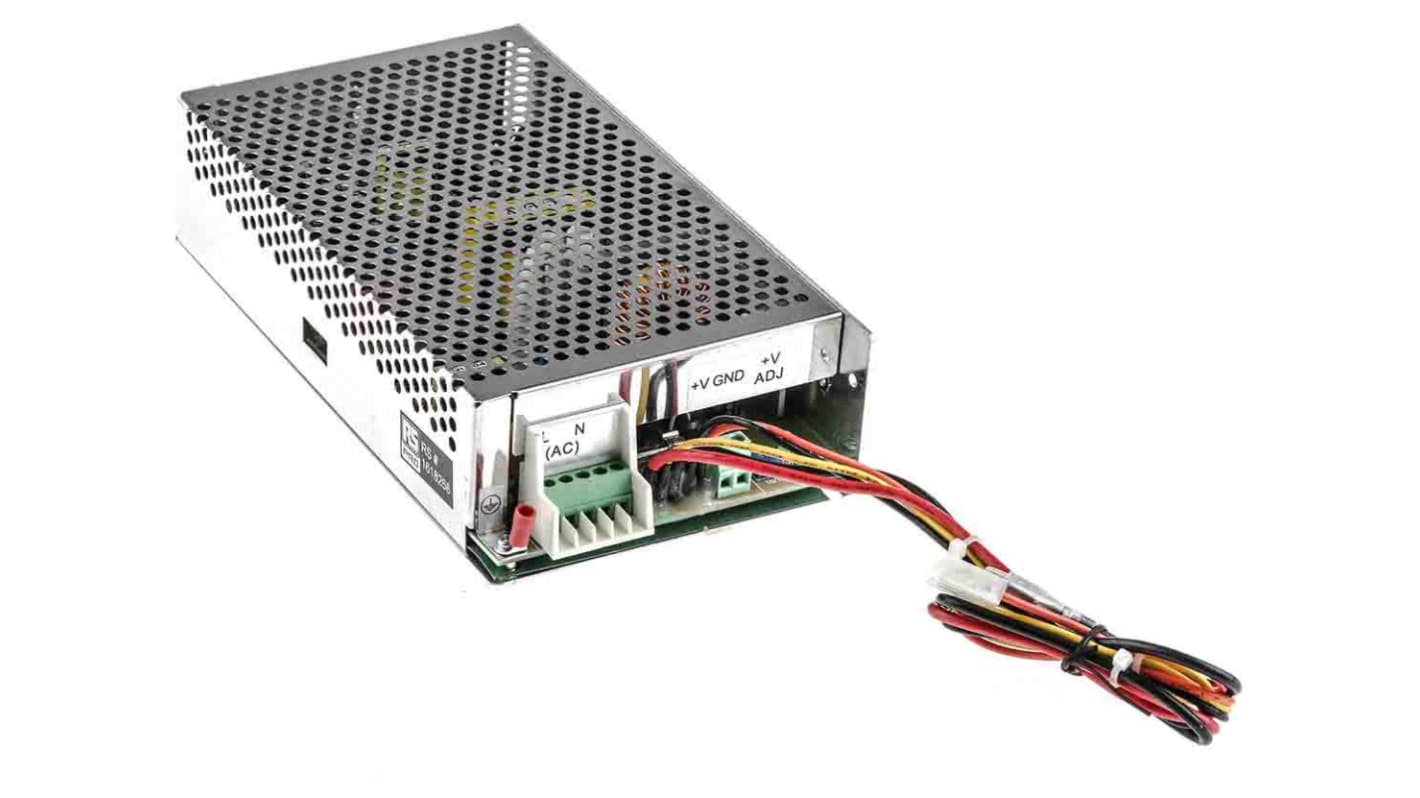

RS PRO Embedded Switch Mode Power Supply


The RS PRO 140W enclosed power supply is designed with a vented metal casing and screw terminals. This enables easy access and simple installation. It operates on 195VAC to 253VAC voltage supply and 4.5A current rating. It outputs DC voltage of 27.6V and with rated current up to 5A. It is a dual output power supply. The device has a wide operating temperature range between 0°C and 45°C.

Features and Benefits


• Compact size
• Durable
• High efficiency and reliability
• High power density
• Protection against short circuit

Applications


• Machine tool industry
• Mobile phone chargers
• Security systems

Certifications


• CE certified
