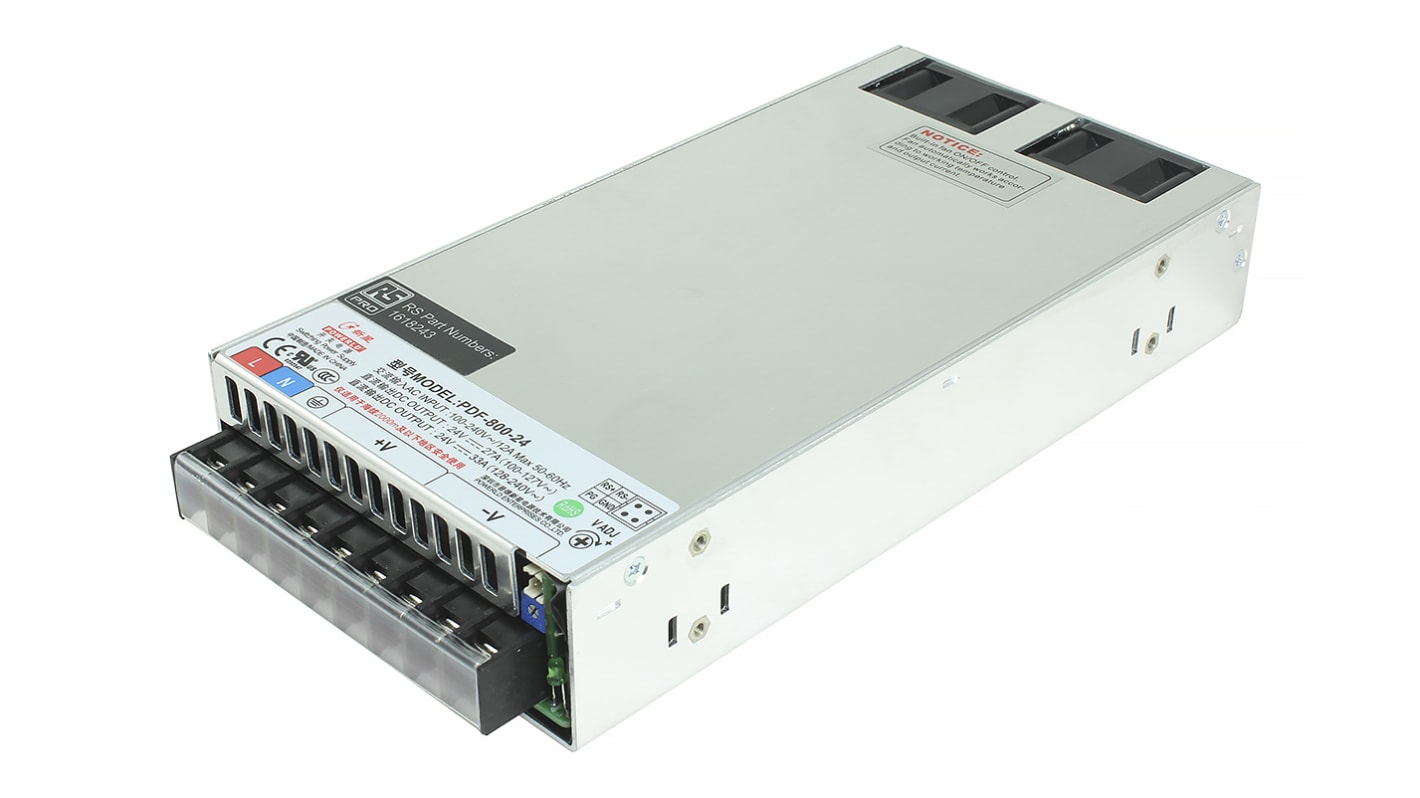

RS PRO Switching Power Supply, 27V dc, 23A, 799W, 1 Output, 90 → 264V ac Input Voltage
- RS Stock No.:
- 161-8244
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 161-8244
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Output Voltage | 27V dc | |
| Output Current | 23A | |
| Power Rating | 799W | |
| Number of Outputs | 1 | |
| Input Voltage | 90 → 264V ac | |
| Mounting Type | Chassis Mount | |
| Package Type | Enclosed | |
| Length | 226mm | |
| Width | 116.5mm | |
| Depth | 41mm | |
| Efficiency | 88% | |
| Minimum Temperature | -30°C | |
| Maximum Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Output Voltage 27V dc | ||
Output Current 23A | ||
Power Rating 799W | ||
Number of Outputs 1 | ||
Input Voltage 90 → 264V ac | ||
Mounting Type Chassis Mount | ||
Package Type Enclosed | ||
Length 226mm | ||
Width 116.5mm | ||
Depth 41mm | ||
Efficiency 88% | ||
Minimum Temperature -30°C | ||
Maximum Temperature +70°C | ||
- COO (Country of Origin):
- CN
800W Single Output Enclosed SMPSU – Active PFC
Universal / Full range AC input
Built in active PFC
Highly reliable design
100% full load burn-in test
3 years warranty
Built in active PFC
Highly reliable design
100% full load burn-in test
3 years warranty
