RS PRO Switching Power Supply, 12V dc, 2.1A, 25.2W, 1 Output, 88 → 264V ac Input Voltage
- RS Stock No.:
- 161-8215
- Brand:
- RS PRO
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£33.79
(exc. VAT)
£40.55
(inc. VAT)
- RS Stock No.:
- 161-8215
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Output Voltage | 12V dc | |
| Output Current | 2.1A | |
| Power Rating | 25.2W | |
| Number of Outputs | 1 | |
| Input Voltage | 88 → 264V ac | |
| Mounting Type | Chassis Mount | |
| Package Type | Enclosed | |
| Length | 850mm | |
| Width | 58.5mm | |
| Depth | 36.5mm | |
| Efficiency | 77.5% | |
| Weight | 250g | |
| Minimum Temperature | -10°C | |
| Maximum Temperature | +60°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Output Voltage 12V dc | ||
Output Current 2.1A | ||
Power Rating 25.2W | ||
Number of Outputs 1 | ||
Input Voltage 88 → 264V ac | ||
Mounting Type Chassis Mount | ||
Package Type Enclosed | ||
Length 850mm | ||
Width 58.5mm | ||
Depth 36.5mm | ||
Efficiency 77.5% | ||
Weight 250g | ||
Minimum Temperature -10°C | ||
Maximum Temperature +60°C | ||
- COO (Country of Origin):
- CN

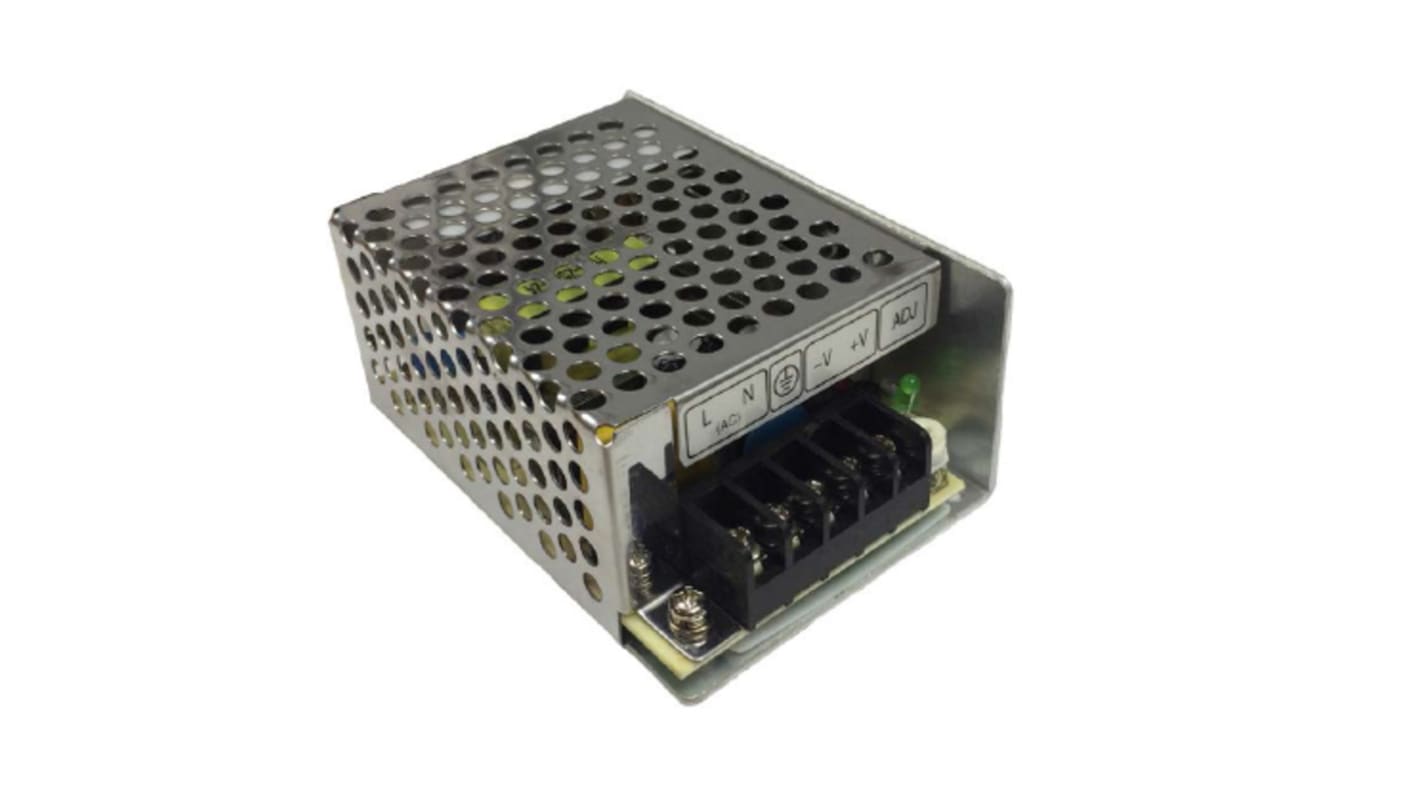

RS PRO 25.2 W Embedded Switch Mode Power Supply SMPS, 12 V DC, Enclosed
Need a reliable and efficient way to power machine assembly, manufacturing systems or telecoms equipment? This RS PRO embedded switch-mode power supply (SMPS) can handle mains AC input voltages from 88 to 264 V AC and output a stable 12 V DC current. This makes it ideal for use with many common devices. The broad range of inputs supported means you can safely use this SMPS in a range of countries around the world.
Its chassis-mounting design with screw terminals allows for easy installation on a base plate or backplate. Free air convection cools the unit via its vented metal casing, keeping it from overheating.
It complies with the EN 61000-3-6 standard on harmonic current emissions, so you won't have to worry about it causing any electrical interference with other devices. This type of power supply maintains its steady voltage by switching a capacitor on and off at high frequency.
Its chassis-mounting design with screw terminals allows for easy installation on a base plate or backplate. Free air convection cools the unit via its vented metal casing, keeping it from overheating.
It complies with the EN 61000-3-6 standard on harmonic current emissions, so you won't have to worry about it causing any electrical interference with other devices. This type of power supply maintains its steady voltage by switching a capacitor on and off at high frequency.
Features and Benefits
• Enclosed package type
• Single output
• Efficiency of 77.5%
• Output current of 2.1 A
• Power rating of 25.2 W
• Length of 85 mm
• Width of 58.5 mm
• Depth of 36.5 mm
• Weight of 250 g
• Minimum operating temperature of -10˚C
• Maximum operating temperature of +60˚C
• Single output
• Efficiency of 77.5%
• Output current of 2.1 A
• Power rating of 25.2 W
• Length of 85 mm
• Width of 58.5 mm
• Depth of 36.5 mm
• Weight of 250 g
• Minimum operating temperature of -10˚C
• Maximum operating temperature of +60˚C
