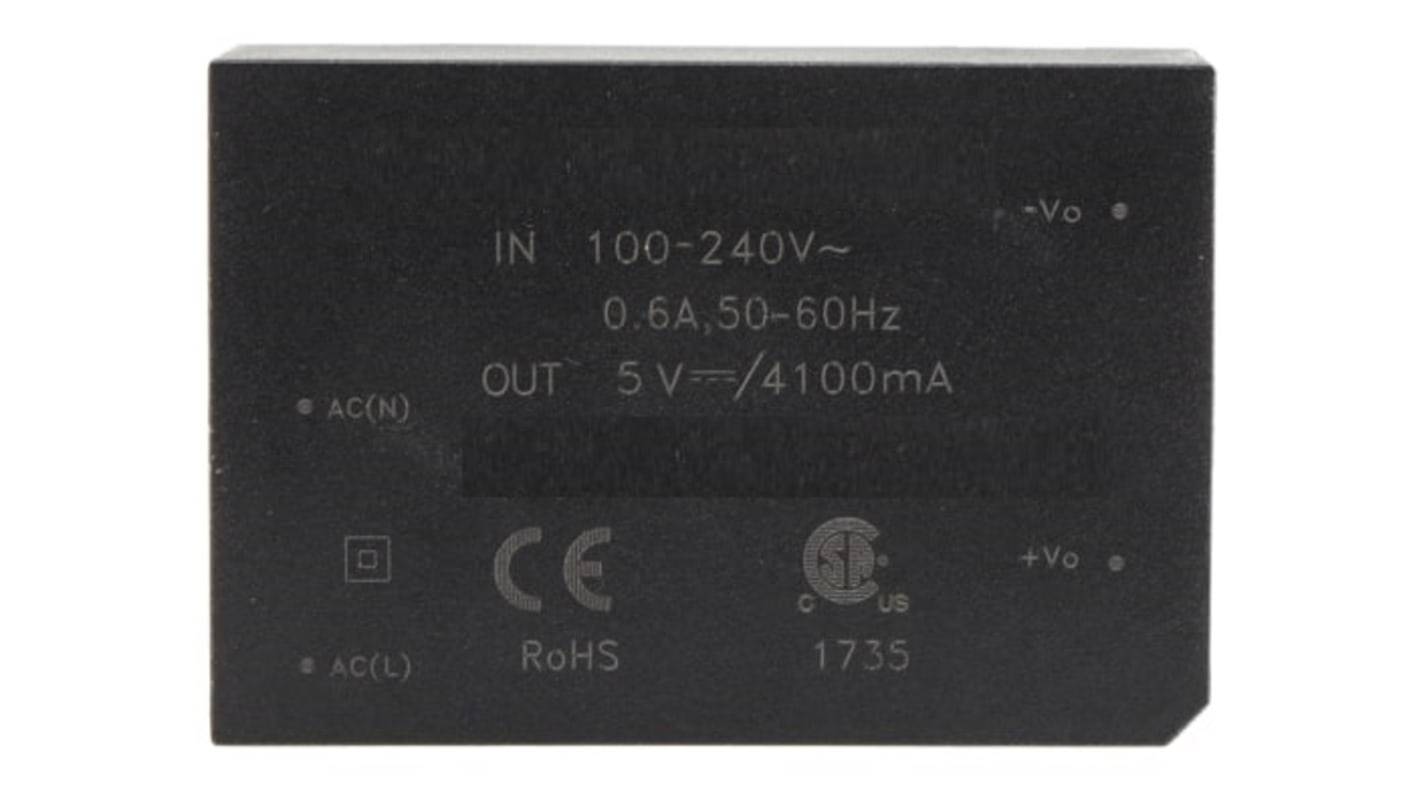

RS PRO Switching Power Supply, 5V dc, 4.1A, 20.5W, 1 Output, 264 V ac, 370 V dc Input Voltage
- RS Stock No.:
- 144-6287
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 144-6287
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Output Voltage | 5V dc | |
| Output Current | 4.1A | |
| Power Rating | 20.5W | |
| Number of Outputs | 1 | |
| Input Voltage | 264 V ac, 370 V dc | |
| Mounting Type | PCB Mount | |
| Package Type | Encapsulated | |
| Length | 70mm | |
| Width | 48mm | |
| Medical Approved | Yes | |
| Depth | 23.5mm | |
| Weight | 120g | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Output Voltage 5V dc | ||
Output Current 4.1A | ||
Power Rating 20.5W | ||
Number of Outputs 1 | ||
Input Voltage 264 V ac, 370 V dc | ||
Mounting Type PCB Mount | ||
Package Type Encapsulated | ||
Length 70mm | ||
Width 48mm | ||
Medical Approved Yes | ||
Depth 23.5mm | ||
Weight 120g | ||
Minimum Temperature -40°C | ||
Maximum Temperature +70°C | ||
- COO (Country of Origin):
- CN
5W LH15-20BxxMU and 25W LH25-20BxxMU series targeting medical application feature reinforced insulation design, 4000VAC high isolation and low leakage current (<100μA) together with output short-circuit, over-current and over-voltage protections to ensure the safety of patients and the system. Both series meet medical design standard EN60601-1 and ANSI/AAMI ES60601-1 (3rd edition, 2xMOPP).
Input voltage range: 85-264VAC/100-370VDC
Standby power consumption＜0.1W
Operating temperature: -40℃ to +70℃
Isolation: 4000VAC
High efficiency up to 89%
Reinforced insulation design
Output short-circuit, over-current and over-voltage protections
Standby power consumption＜0.1W
Operating temperature: -40℃ to +70℃
Isolation: 4000VAC
High efficiency up to 89%
Reinforced insulation design
Output short-circuit, over-current and over-voltage protections
