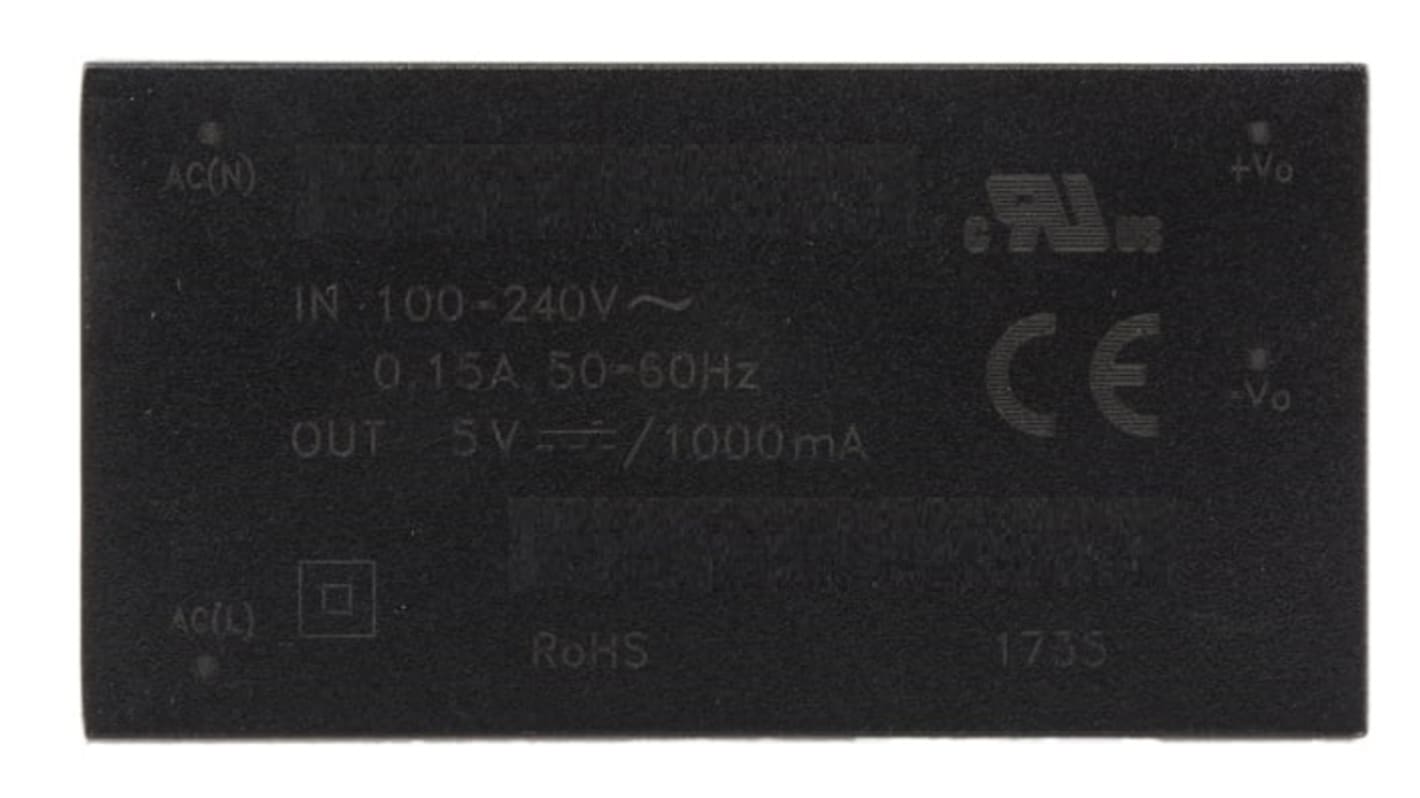

RS PRO Switching Power Supply, 5V dc, 1A, 5W, 1 Output, 264 V ac, 370 V dc Input Voltage

View all Switching Power Supplies
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
144-6281
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Output Voltage

5V dc

Output Current

1A

Power Rating

5W

Number of Outputs

1

Input Voltage

264 V ac, 370 V dc

Mounting Type

PCB Mount

Package Type

Encapsulated

Length

53.8mm

Width

28.8mm

Medical Approved

Yes

Depth

19mm

Weight

43g

Minimum Temperature

-25°C

Maximum Temperature

+70°C

COO (Country of Origin):
CN
LD05-20BxxMU series is a compact medical grade power converter. Featuring a universal input, taking both DC and AC inputs, it has low power consumption, high efficiency, high reliability and provides 2xMOPP. It offers good EMC performance and is widely used in medical, industrial and instrumentation applications.

Universal Input: 85 - 264V AC/100 - 370V DC
High Efficiency, High Power Density
Output Short Circuit Protection (Continuous self-recovery)
Over-current and Over-voltage protection
Standby Power < 0.3W
EN60601-1, ANSI/AAMI, ES60601 Approval,
3rd Edition 2 x MOPP
