Recom Switching Power Supply, RAC02-12SGA, 12V dc, 167mA, 2W, 1 Output, 100 → 240V ac Input Voltage
- RS Stock No.:
- 139-3215
- Mfr. Part No.:
- RAC02-12SGA
- Brand:
- Recom
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 139-3215
- Mfr. Part No.:
- RAC02-12SGA
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Recom | |
Output Voltage | 12V dc | |
Output Current | 167mA | |
Power Rating | 2W | |
Number of Outputs | 1 | |
Input Voltage | 100 → 240V ac | |
Mounting Type | PCB Mount | |
Package Type | Encapsulated | |
Length | 33.7mm | |
Width | 22.2mm | |
Depth | 19mm | |
Efficiency | 72% | |
Series | RAC02-GA | |
Minimum Temperature | -25°C | |
Weight | 12g | |
Maximum Temperature | +70°C | |
Select all | ||
---|---|---|
Brand Recom | ||
Output Voltage 12V dc | ||
Output Current 167mA | ||
Power Rating 2W | ||
Number of Outputs 1 | ||
Input Voltage 100 → 240V ac | ||
Mounting Type PCB Mount | ||
Package Type Encapsulated | ||
Length 33.7mm | ||
Width 22.2mm | ||
Depth 19mm | ||
Efficiency 72% | ||
Series RAC02-GA | ||
Minimum Temperature -25°C | ||
Weight 12g | ||
Maximum Temperature +70°C | ||
- COO (Country of Origin):
- TW

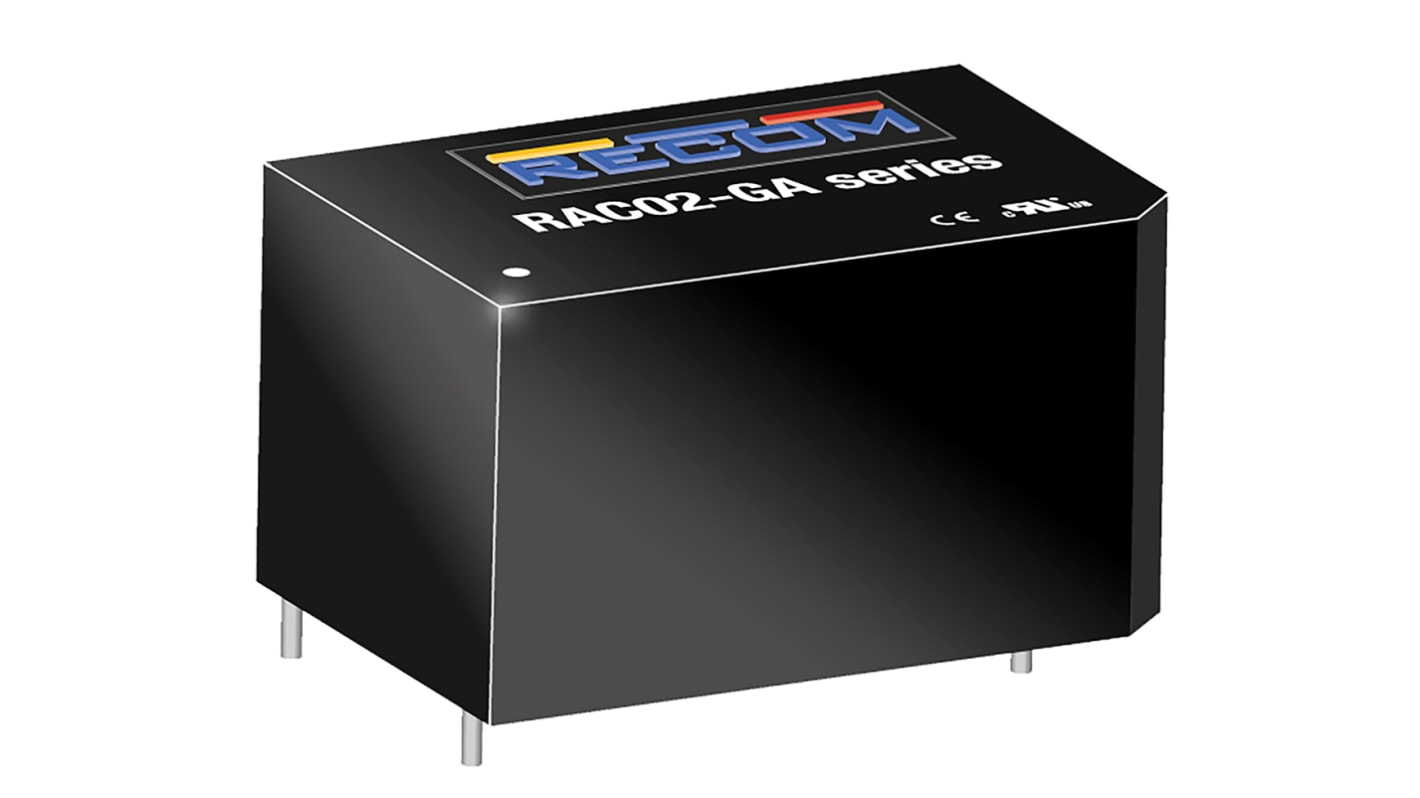

Recom 2W, PCB Mount, Encapsulated, Single Output, Regulated Switch Mode, AC-DC Power Supply - RAC Series
RAC series 2W, universal input, single output AC / DC converter power supply with an ultracompact low profile. These universal input, single output AC / DC converters are PCB mounting and have a high efficiency, low standby power and a high operating temperature. Suitable applications for AC / DC converters include include low power supplies for clocks, remote control receivers and microcontroller circuits.
Wide input voltage range
Ultracompact low profile: H17xW22.2xD33.7 mm
Low 30 mW standby power consumption
3kVAC isolation
Low output ripple
High operating temperature of 85°C
Soft start and short circuit protection
EMC compliance to EN 55022 class B
Ultracompact low profile: H17xW22.2xD33.7 mm
Low 30 mW standby power consumption
3kVAC isolation
Low output ripple
High operating temperature of 85°C
Soft start and short circuit protection
EMC compliance to EN 55022 class B
Note
MTBF to MIL-HDBK-217F
Power derates above 75°C
Power derates above 75°C
Standards
EN-60950-1, UL-60950-1 (both pending)
