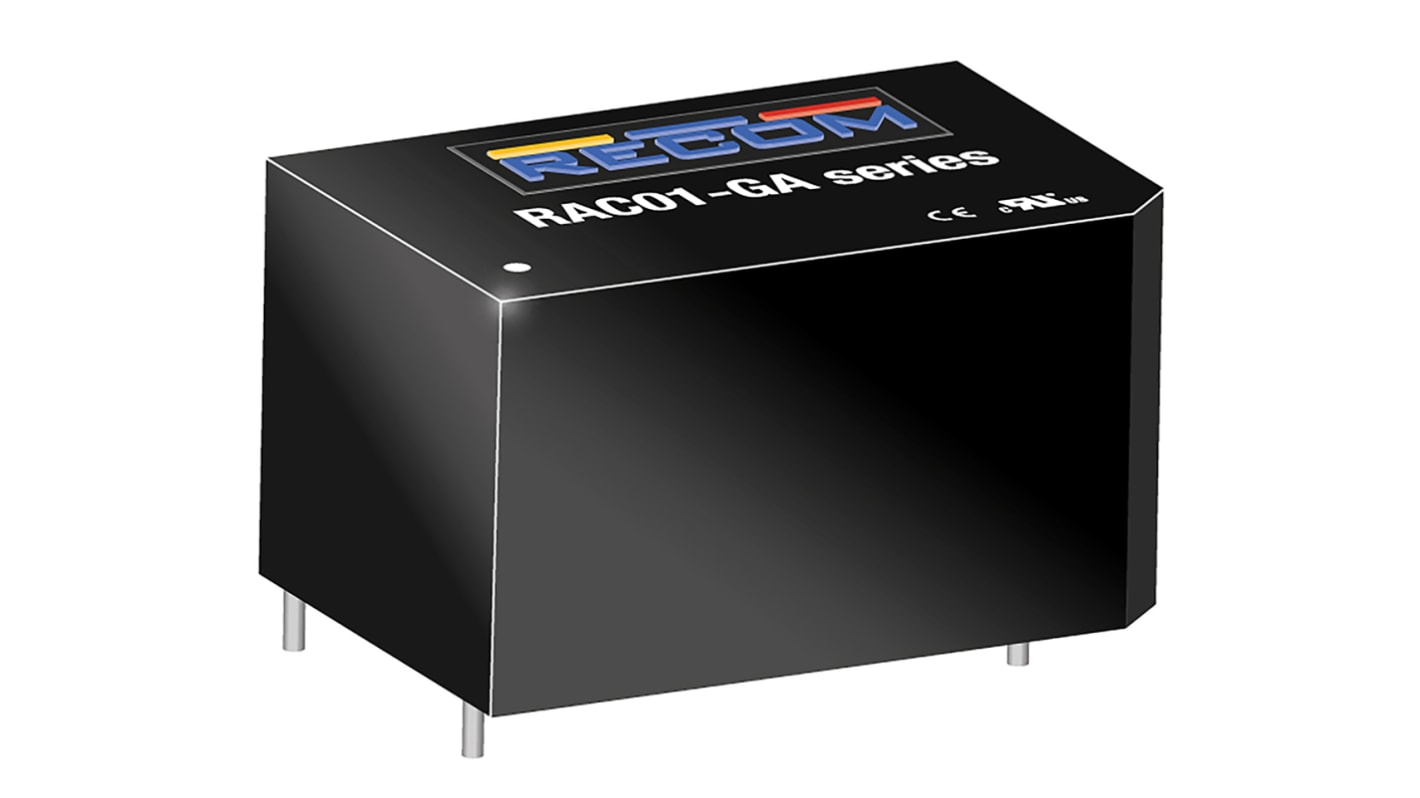

RAC series 1W, universal input, single output AC / DC converter power supply with an ultracompact low profile. These universal input, single output AC / DC converters are PCB mounting and have a high efficiency, low standby power and a high operating temperature. Suitable applications for AC / DC converters include include low power supplies for clocks, remote control receivers and microcontroller circuits.

Wide input voltage range
Ultracompact low profile: H17xW22.2xD33.7 mm
Low 30 mW standby power consumption
3kVAC isolation
Low output ripple
High operating temperature of 85°C
Soft start and short circuit protection
EMC compliance to EN 55022 class B

MTBF to MIL-HDBK-217F
Power derates above 80°C

EN-60950-1, UL-60950-1 (both pending)

Thanks to this switching power supply from RECOM, it's a cinch to convert your AC power supply to a stable DC output. A nominal input voltage range between 100 and 240V AC makes it universal, so it's the ideal match for common power sources. Busy circuit board? No problem – the unit's compact dimensions of 33.7 (L) x 22.2 (W) x 19mm (H) gives it a small footprint. There's little chance of it crossing wires with sensitive electronic devices, thanks to an EMI filter that minimises the risk of interference.

• Resists vibration and shock for safe use in harsh operating conditions
• Low standby-mode power consumption makes it energy-efficient
• Double insulation helps to protect you against electric shocks
• Mean time between failures when operating at +25°C of over 1.6 million hours for an extended service life

• Transportation industry
• Medical centres
• Manufacturing facilities

Yes, for safety, it includes protection against short circuits, overvoltage and overcurrent. This helps to stop power surges damaging your equipment.

As it features a plastic flame-retardant casing that will only burn for a brief period if there's a fire.
