    Mean Well Switching Power Supply, 12V dc, 5A, 60W, 1 Output

    RS Stock No.:
    135-8973
    Mfr. Part No.:
    IRM-60-12ST
    Brand:
    Mean Well
    Mean Well
    View all Switching Power Supplies
    58 In stock - FREE next working day delivery available
    20 available from Europe for delivery within 1 working day(s).
    Add to Basket
    Units

    Added

    Price Each

    £17.33

    (exc. VAT)

    £20.80

    (inc. VAT)

    UnitsPer unit
    1 - 4£17.33
    5 - 9£16.79
    10 - 24£16.27
    25 - 49£15.72
    50 +£15.20
    RS Stock No.:
    135-8973
    Mfr. Part No.:
    IRM-60-12ST
    Brand:
    Mean Well
    COO (Country of Origin):
    CN

    Technical Reference


    Legislation and Compliance

    COO (Country of Origin):
    CN

    Product Details

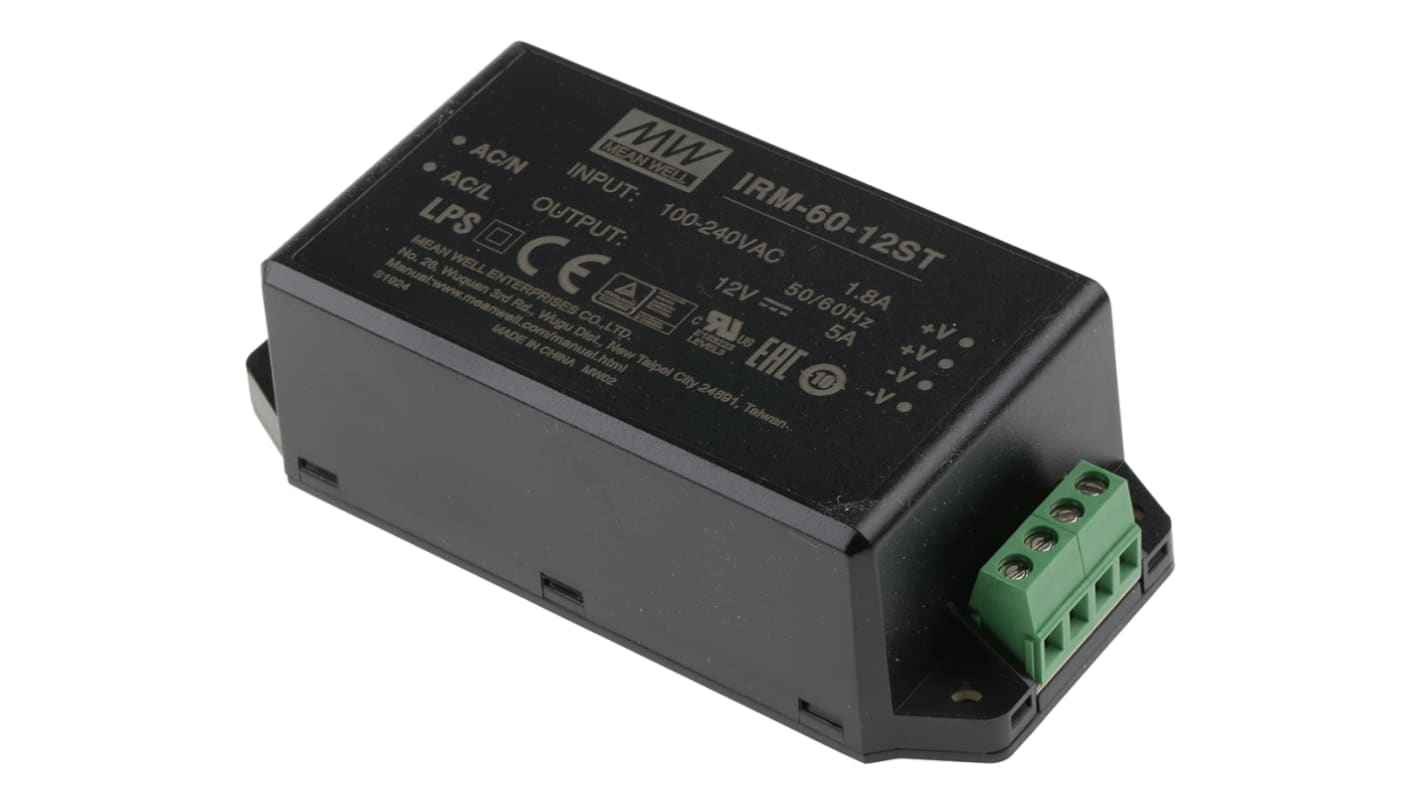

    Mean Well Encapsulated Switch Mode Power Supply


    The Mean Well IRM-60 series 60W single output AC to DC encapsulated switch-mode power supply has an output current rating of 5A at 12VDC. It has a universal input supply voltage rating ranging from 85VAC to 264VAC. The power supply construction meets anti-vibration demand up to 5G capability. It provides resistance to dust and moisture while enhancing heat dissipation. It has a compact output solution and is ready to solder straight onto PCB boards. The power supply has a Class II design and includes built-in EMI filtering components along with excellent EMC features that prevent electromagnetic interference.

    Features and Benefits


    Highly versatile
    Low no-load power consumption below 0.1W
    High efficiency up to 87.5%
    Compact size
    Overvoltage
    Overload and short circuit protection
    Cooled by free air convection
    Full load burn-in test 100%
    High reliability
    screw terminals

    Applications


    Hand held electronic devices
    Factory automation equipment
    Mechanical equipment
    Industrial electrical equipment

    Certifications


    UL60950-1
    TUV approved
    EN60950-1 approved
    EN55022 (CISPR22) class B
    EN61000-3-2,-3
    EN61000-4-2,3,4,5,6,8,11
    EN55024
    Heavy industry level (surge L-N: 1KV)
    Criteria A


    Specifications

    AttributeValue
    Output Voltage12V dc
    Output Current5A
    Power Rating60W
    Number of Outputs1
    Input Voltage85 → 264V ac
    Mounting TypeChassis Mount
    Package TypeEncapsulated
    Length109mm
    Width52mm
    Depth33.5mm
    Efficiency87.5%
    Weight270g
    Minimum Temperature-30°C
    Maximum Temperature+70°C
