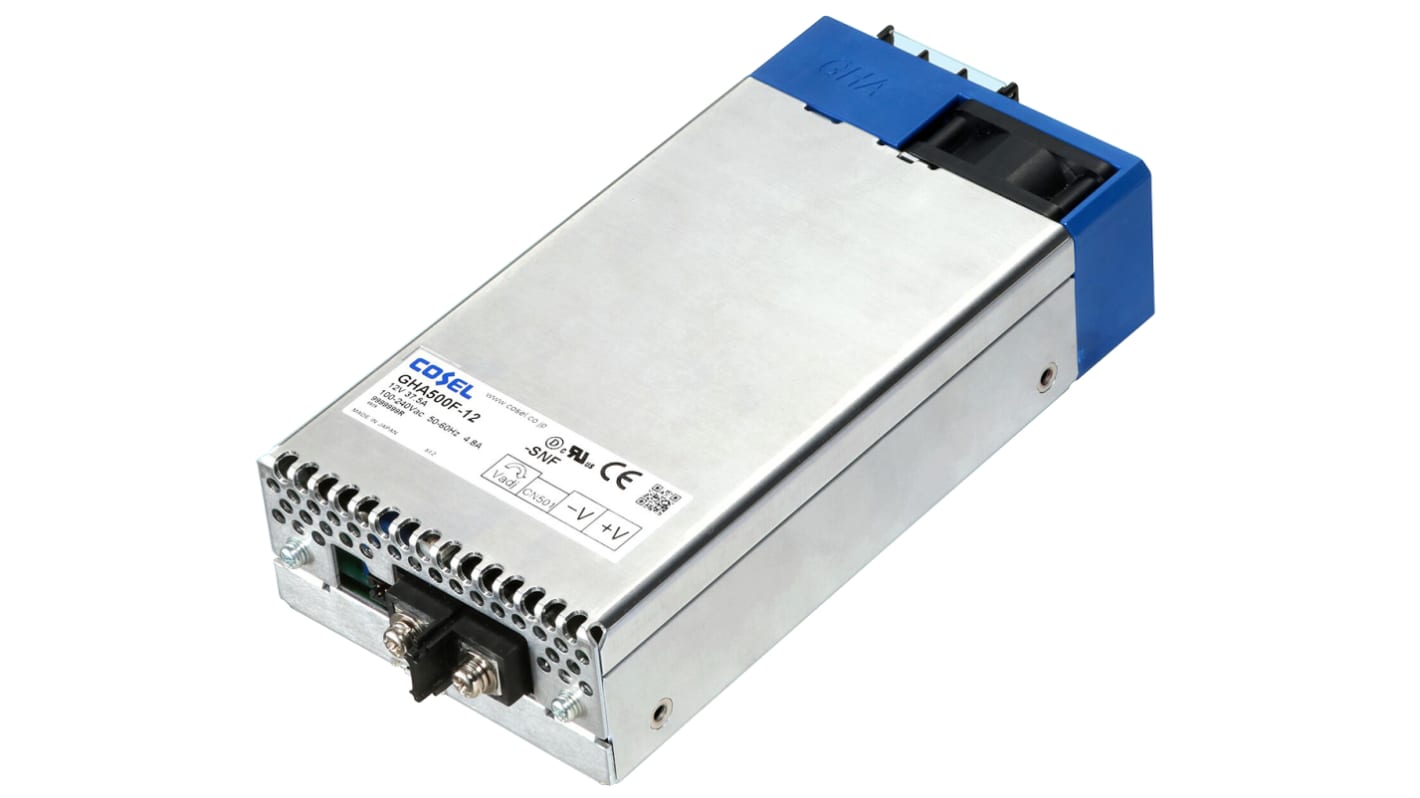

Cosel Switching Power Supply, GHA500F-24-SNF, 24V dc, 21A, 504W, 1 Output, 90 → 264V ac Input Voltage
- RS Stock No.:
- 131-1356
- Mfr. Part No.:
- GHA500F-24-SNF
- Brand:
- Cosel
Subtotal (1 unit)*
£237.06
(exc. VAT)
£284.47
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 18 unit(s) ready to ship
- Plus 999,999,981 unit(s) shipping from 13 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £237.06 |
*price indicative
- RS Stock No.:
- 131-1356
- Mfr. Part No.:
- GHA500F-24-SNF
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Output Voltage | 24V dc | |
| Output Current | 21A | |
| Power Rating | 504W | |
| Number of Outputs | 1 | |
| Input Voltage | 90 → 264V ac | |
| Mounting Type | Chassis Mount | |
| Package Type | Enclosed | |
| Length | 198.3mm | |
| Width | 85.2mm | |
| Medical Approved | Yes | |
| Depth | 41mm | |
| Maximum Temperature | +70°C | |
| Weight | 660g | |
| Minimum Temperature | -20°C | |
Select all | ||
|---|---|---|
Brand Cosel | ||
Output Voltage 24V dc | ||
Output Current 21A | ||
Power Rating 504W | ||
Number of Outputs 1 | ||
Input Voltage 90 → 264V ac | ||
Mounting Type Chassis Mount | ||
Package Type Enclosed | ||
Length 198.3mm | ||
Width 85.2mm | ||
Medical Approved Yes | ||
Depth 41mm | ||
Maximum Temperature +70°C | ||
Weight 660g | ||
Minimum Temperature -20°C | ||
- COO (Country of Origin):
- JP
Cosel GHA Series
The GHA series of Cosel Power Supplies. Models come in a various specifications, including a current rating ranging from 6.3A to 41.7A. All Power supplies are open frame and come with a universal input. These power supplies are highly reliable, but the stress to P.C.B, such as twisting or bending may cause the defect of the unit, so handle the unit with care.
Features and Benefits
• ITE and Medical safety approvals
• High Power density 92% typ (Input Voltage 230 V, Output Voltage 24 V)
• 3 x 5 standard footprint
• Fits 1U applications
• Low leakage current
• With Remote (optional)
• With AUX1 (12 V) AUX2 (15 V) (Optional)
Switch Mode - Cosel Closed Frame
