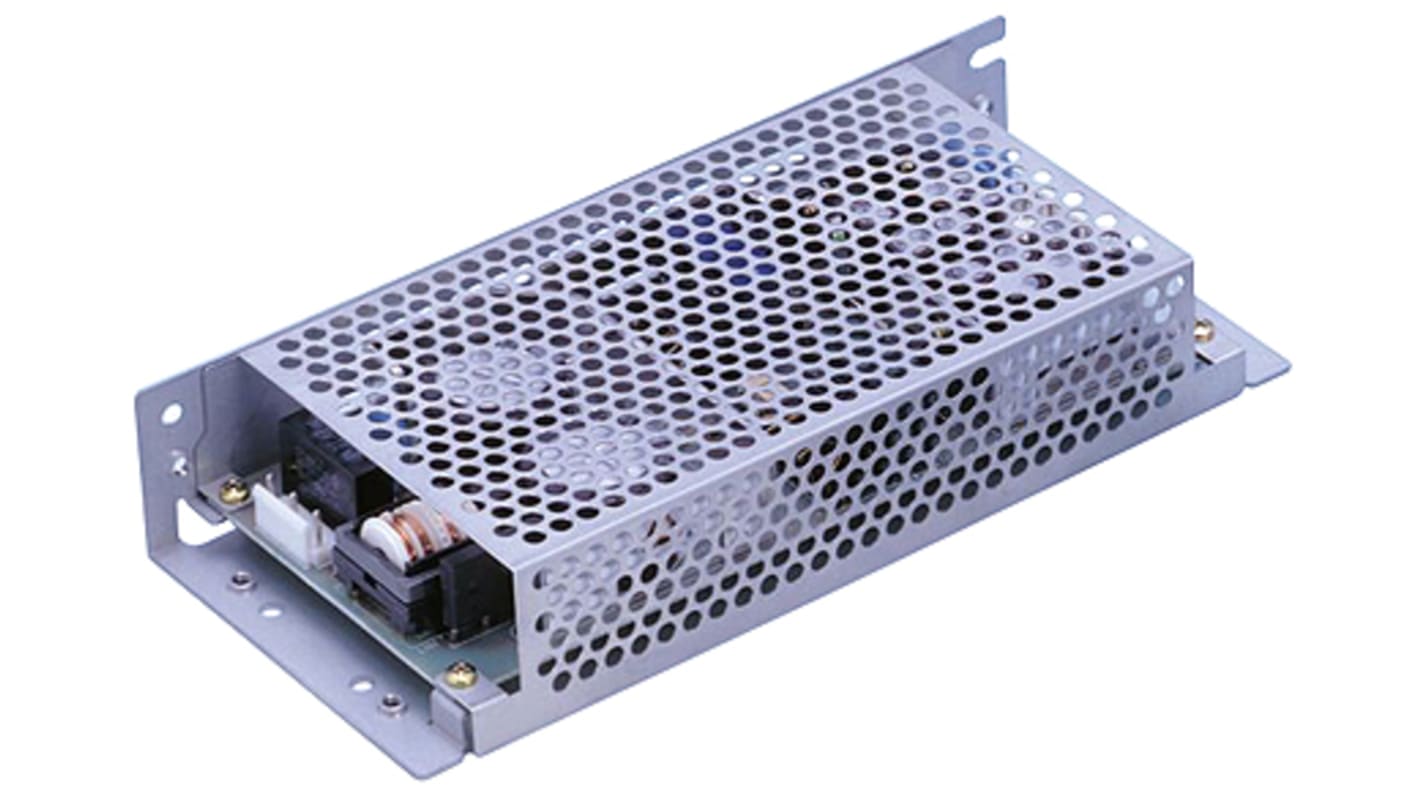

Cosel Switching Power Supply, LDC60F-2-Y, 5 V dc, ±15 V dc, 2 A, 5 A, 500 mA, 60W, Triple Output, 110 → 370 V
- RS Stock No.:
- 130-6973
- Mfr. Part No.:
- LDC60F-2-Y
- Brand:
- Cosel
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 130-6973
- Mfr. Part No.:
- LDC60F-2-Y
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Cosel | |
Output Voltage | 5 V dc, ±15 V dc | |
Output Current | 2 A, 5 A, 500 mA | |
Power Rating | 60W | |
Number of Outputs | 3 | |
Input Voltage | 110 → 370 V dc, 85 → 264 V ac | |
Mounting Type | Chassis Mount | |
Package Type | Open Frame | |
Length | 185mm | |
Width | 83mm | |
Depth | 23mm | |
Efficiency | 72% | |
Minimum Temperature | -10°C | |
Weight | 300g | |
Maximum Temperature | +60°C | |
Select all | ||
---|---|---|
Brand Cosel | ||
Output Voltage 5 V dc, ±15 V dc | ||
Output Current 2 A, 5 A, 500 mA | ||
Power Rating 60W | ||
Number of Outputs 3 | ||
Input Voltage 110 → 370 V dc, 85 → 264 V ac | ||
Mounting Type Chassis Mount | ||
Package Type Open Frame | ||
Length 185mm | ||
Width 83mm | ||
Depth 23mm | ||
Efficiency 72% | ||
Minimum Temperature -10°C | ||
Weight 300g | ||
Maximum Temperature +60°C | ||
- COO (Country of Origin):
- JP
Cosel LDC Series
The LDC series of Cosel Power Supplies. Models come in a variety of specifications, including a voltage rating of 5V. All Power supplies are open frame and come with a universal input.
Features:
Small and compact PCB construction
Universal input voltage: 85 to 264 Vac
Built-in inrush current, overcurrent and overvoltage protection circuits
Small and compact PCB construction
Universal input voltage: 85 to 264 Vac
Built-in inrush current, overcurrent and overvoltage protection circuits
Note
2 year warranty
Standards
UL60950-1, CSA C22.2 No.60950-1, EN60950-1, EN50178, Complies with DEN-AN
Switch Mode Cosel Open Frame
