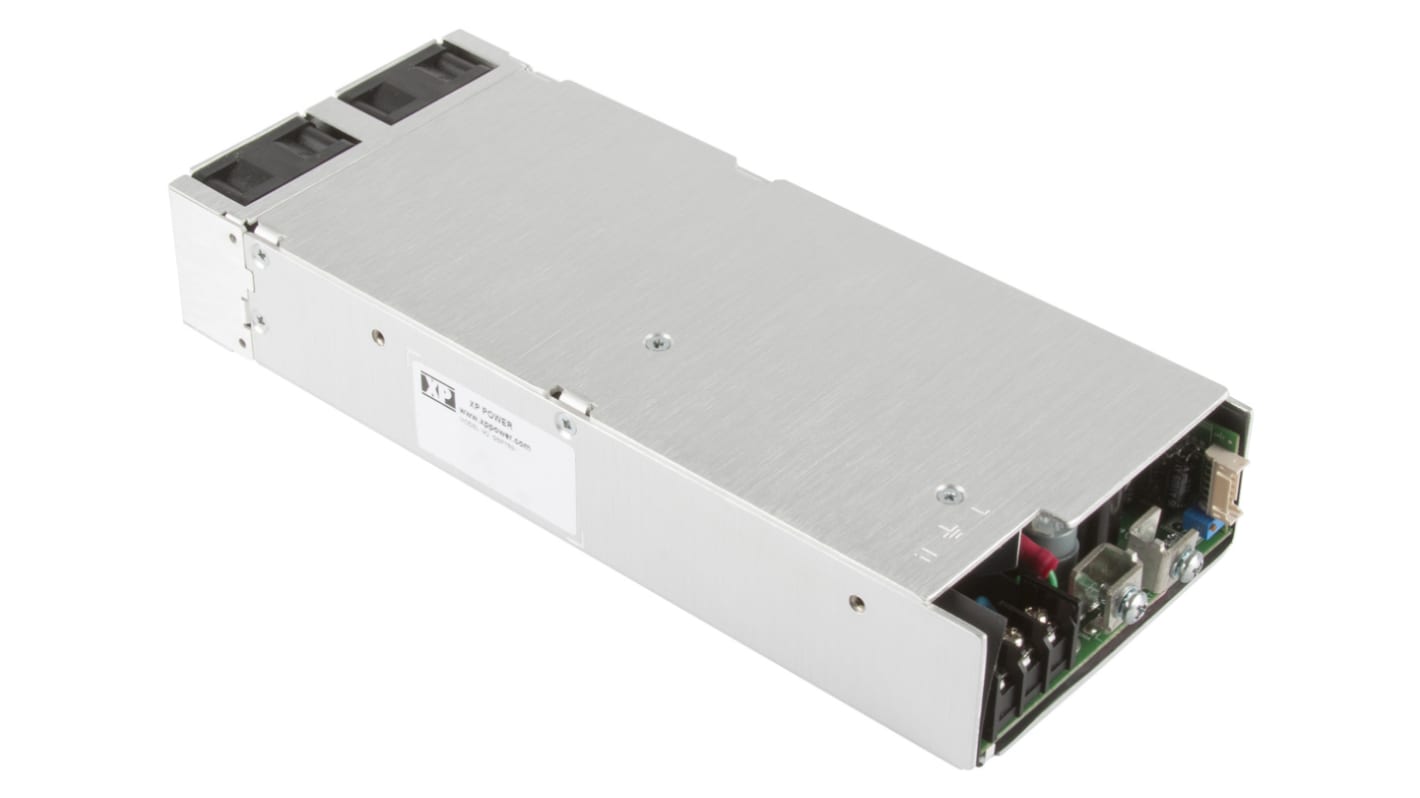

XP Power Switching Power Supply, GSP750PS24-EF, 24V dc, 31.3A, 750W, 1 Output, 80 → 264V ac Input Voltage
- RS Stock No.:
- 126-2031
- Mfr. Part No.:
- GSP750PS24-EF
- Brand:
- XP Power
Available to back order for despatch 01/08/2024
Added
Price Each
£288.58
(exc. VAT)
£346.30
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £288.58 |
| 5 - 9 | £279.92 |
| 10 - 24 | £271.27 |
| 25 - 49 | £262.61 |
| 50 + | £253.95 |
- RS Stock No.:
- 126-2031
- Mfr. Part No.:
- GSP750PS24-EF
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
Product Details
XP Power AC To DC Power Supply
The XP Power GSP 750W rated AC to DC power supply with a single output has an output current rating of 31.3A at 24VDC. It has a universal input supply voltage rating from 80VAC to 264VAC. The cooling fan is intelligently controlled to provides the most optimised acoustic noise in the system.
Features and Benefits
Controlled cooling fans
IT and medical safety approved
ON/OFF remote
Peak power is 900W for 100ms
Small mechanical footprint
Standby output is 1.0W
IT and medical safety approved
ON/OFF remote
Peak power is 900W for 100ms
Small mechanical footprint
Standby output is 1.0W
Certifications
ANSI/AAMI ES60601-1:2005
CSA 22.2 No. 60601-1:08
CSA C22.2, No.60601-1:08
EN60601-1/A 12:2006, Class I
EN60950-1:2006
IEC60601-1 Ed 3 Inc risk management
IEC60950-1:2005 Ed 2
UL60950-1 (2007)
CSA 22.2 No. 60601-1:08
CSA C22.2, No.60601-1:08
EN60601-1/A 12:2006, Class I
EN60950-1:2006
IEC60601-1 Ed 3 Inc risk management
IEC60950-1:2005 Ed 2
UL60950-1 (2007)
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 24V dc |
| Output Current | 31.3A |
| Power Rating | 750W |
| Number of Outputs | 1 |
| Input Voltage | 80 → 264V ac |
| Mounting Type | Chassis Mount |
| Package Type | Enclosed |
| Length | 246.44mm |
| Width | 101.6mm |
| Medical Approved | Yes |
| Depth | 41.9mm |
| Weight | 1.4kg |
| Minimum Temperature | -40°C |
| Maximum Temperature | +70°C |
