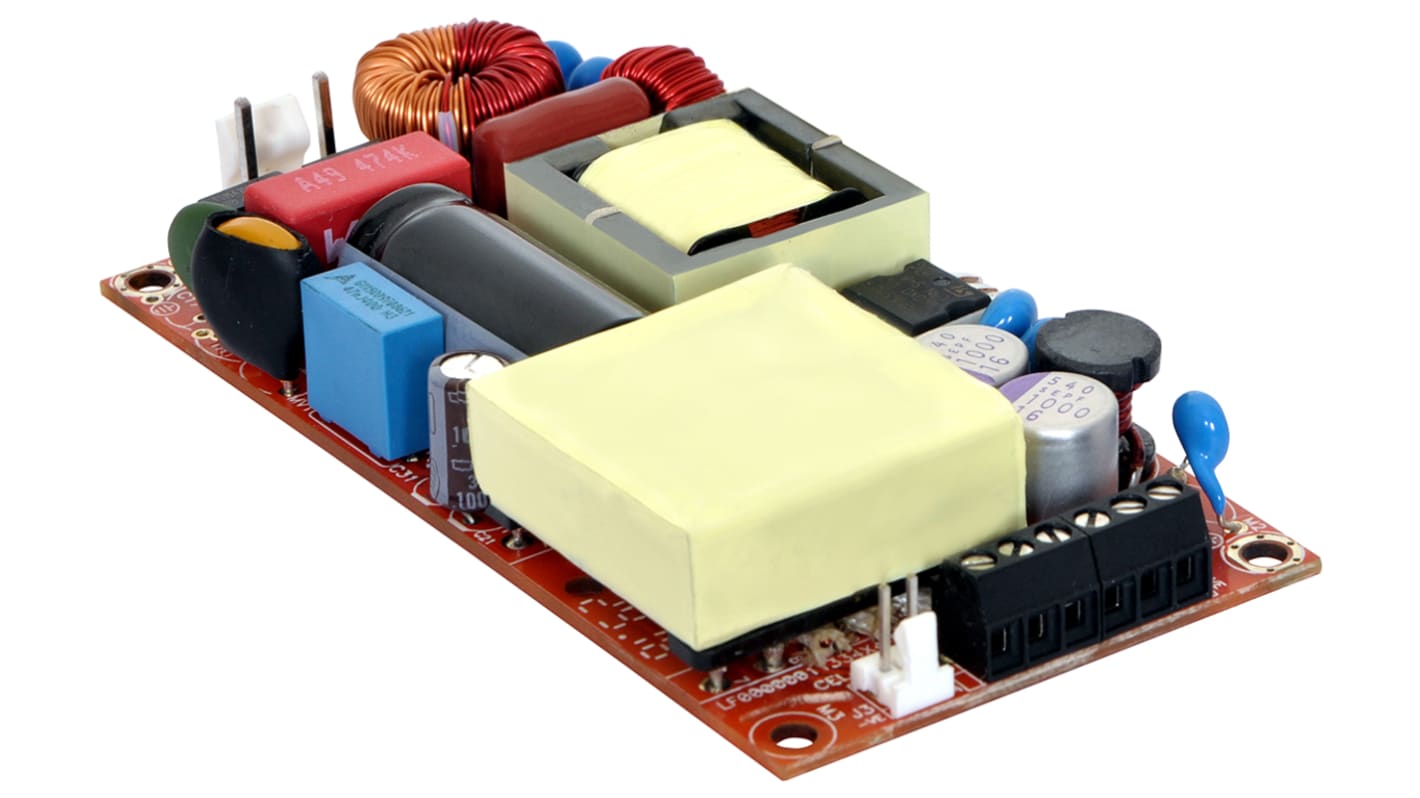

EOS Switching Power Supply, MULP180-1324, 24V dc, 4.68 A, 7.5 A, 180W, 1 Output, 390 V dc, 80 → 264 V ac Input
- RS Stock No.:
- 125-0847
- Mfr. Part No.:
- MULP180-1324
- Brand:
- EOS
Available to back order for despatch 21/01/2025
Added
Price Each
£106.47
(exc. VAT)
£127.76
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £106.47 |
| 5 - 9 | £103.27 |
| 10 - 24 | £100.08 |
| 25 - 49 | £96.89 |
| 50 + | £93.69 |
- RS Stock No.:
- 125-0847
- Mfr. Part No.:
- MULP180-1324
- Brand:
- EOS
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details
180W Power Supply Switch Mode MULP180 Series
The EOS Power MULP180 is a series of 180 W, open frame, medical switch mode power supplies. This series have a universal input, and are a compact 3 x 2 inches in size and offer a high efficiency up to 92%. Also offers the possibility to use standard 2 x 4 and 3 x 5 inches open frame medical and commercial grade power solutions in height restricted environments, without having to change mechanical footprints while increasing efficiencies.
4 x 2 x 0.75 inches Form factor
Provides up to 180 W with Forced Air Cooling
Up to 92% efficiency
-40° to 70° operating temperature
Dual fusing
12 V / 0.5A Fan Output, Thermal Shut-Down feature
Standby Power <0.5 W
Medical (BF) Safety Approvals
Cover Kit available RS Stock Number 125-0848
Provides up to 180 W with Forced Air Cooling
Up to 92% efficiency
-40° to 70° operating temperature
Dual fusing
12 V / 0.5A Fan Output, Thermal Shut-Down feature
Standby Power <0.5 W
Medical (BF) Safety Approvals
Cover Kit available RS Stock Number 125-0848
Standards
EN60601-1, IEC 60601-1 (ed.3), ANSI / AAMI ES 60601 - 1, CSA C22.2 No. 60601-1
Approvals
Nemko, UL, C-UL
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 24V dc |
| Output Current | 4.68 A, 7.5 A |
| Power Rating | 180W |
| Number of Outputs | 1 |
| Input Voltage | 390 V dc, 80 → 264 V ac |
| Mounting Type | Surface Mount |
| Package Type | Open Frame |
| Length | 101.6mm |
| Width | 50.8mm |
| Medical Approved | Yes |
| Depth | 19.05mm |
| Maximum Temperature | +70°C |
| Weight | 200g |
| Minimum Temperature | -40°C |
