RS PRO Switching Power Supply, 32V dc, 1.87A, 60W, 1 Output, 100 → 230V ac Input Voltage
- RS Stock No.:
- 124-4713
- Brand:
- RS PRO
Discontinued
- RS Stock No.:
- 124-4713
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Output Voltage | 32V dc | |
| Output Current | 1.87A | |
| Power Rating | 60W | |
| Number of Outputs | 1 | |
| Input Voltage | 100 → 230V ac | |
| Mounting Type | Panel Mount | |
| Package Type | Open Frame | |
| Length | 101.6mm | |
| Width | 50.8mm | |
| Depth | 29mm | |
| Efficiency | 89% | |
| Maximum Temperature | +50°C | |
| Minimum Temperature | 0°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Output Voltage 32V dc | ||
Output Current 1.87A | ||
Power Rating 60W | ||
Number of Outputs 1 | ||
Input Voltage 100 → 230V ac | ||
Mounting Type Panel Mount | ||
Package Type Open Frame | ||
Length 101.6mm | ||
Width 50.8mm | ||
Depth 29mm | ||
Efficiency 89% | ||
Maximum Temperature +50°C | ||
Minimum Temperature 0°C | ||
- COO (Country of Origin):
- CN

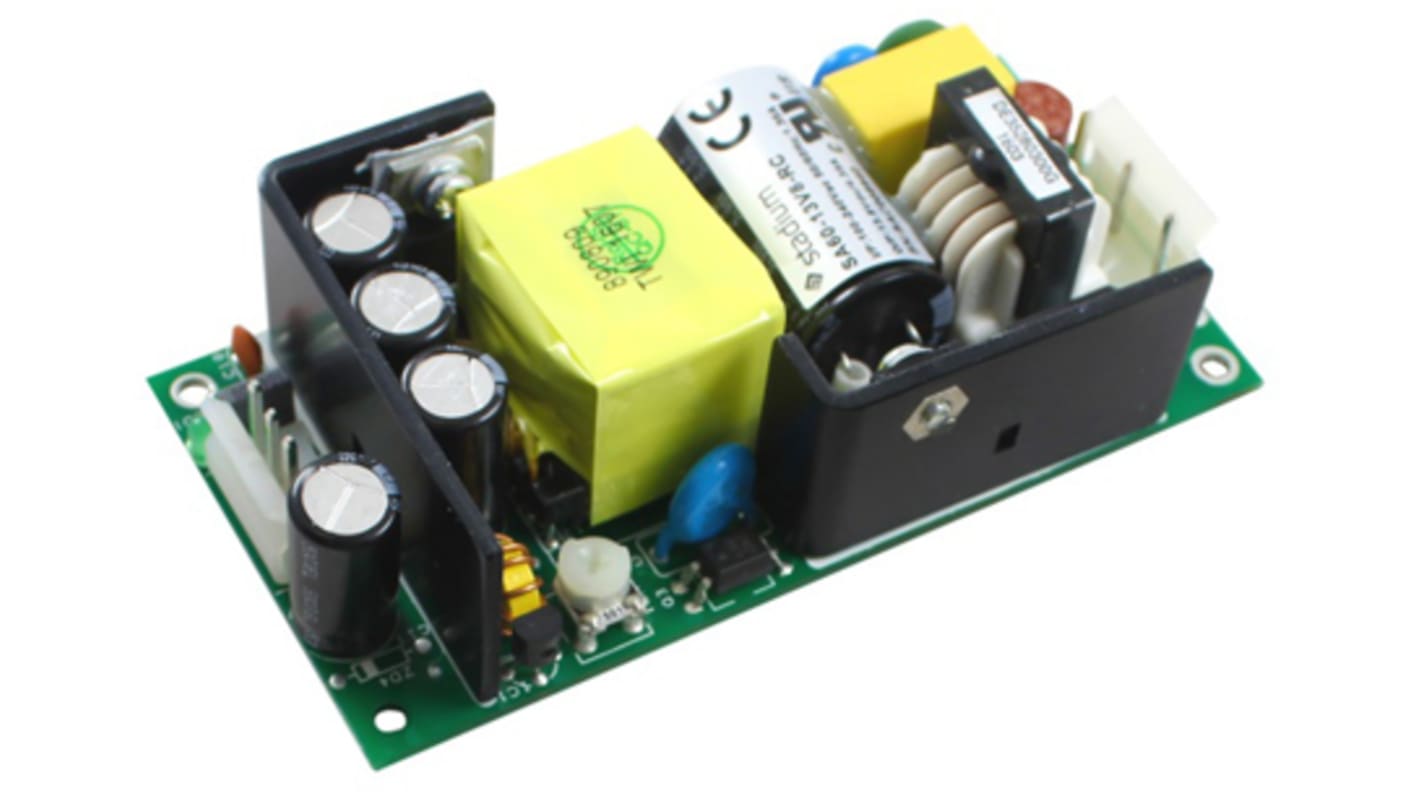

RS Switch Mode Power Supply SA60
The SA60 series are a highly efficient switch mode power supply.
Features and Benefits
Single output
High efficiency
Industry standard size 110mm x 50.8mm x 29mm (h)
Low cost
Low touch currents
Low standby power
High efficiency
Industry standard size 110mm x 50.8mm x 29mm (h)
Low cost
Low touch currents
Low standby power
Standards
EN61000-3-2 PFC Class A, EN55022 B for conducted noise
