MEAN WELL, RPS-200-27-C Switching Power Supply 27V dc, 143 W 370 V dc, 264V ac
- RS Stock No.:
- 124-4655
- Distrelec Article No.:
- 303-86-056
- Mfr. Part No.:
- RPS-200-27-C
- Brand:
- MEAN WELL
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£52.85
(exc. VAT)
£63.42
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
- Plus 1 unit(s) shipping from 15 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £52.85 |
| 5 - 9 | £51.28 |
| 10 - 24 | £49.68 |
| 25 - 49 | £48.11 |
| 50 + | £46.51 |
*price indicative
- RS Stock No.:
- 124-4655
- Distrelec Article No.:
- 303-86-056
- Mfr. Part No.:
- RPS-200-27-C
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 27V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 143W | |
| SMPS Output Current | 5.3A | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 70°C | |
| Length | 103.4mm | |
| Depth | 40mm | |
| Standards/Approvals | IS 13252(Part1)/IEC 60950-1, TUV BS EN/EN 62368-1, UL 62368-1, AS/NZS62368.1, CCCGB4943.1, CSA C22.2 No. 62368-1, EAC TP TC 00, BSMI CNS143361 | |
| Width | 40mm | |
| Weight | 300g | |
| Series | RPS-200-27 | |
| Efficiency | 94% | |
| Maximum Input Voltage | 370V dc, 264V dc | |
| Minimum Input Voltage | 80V ac | |
| Output Current | 5.3A | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 27V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 143W | ||
SMPS Output Current 5.3A | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 70°C | ||
Length 103.4mm | ||
Depth 40mm | ||
Standards/Approvals IS 13252(Part1)/IEC 60950-1, TUV BS EN/EN 62368-1, UL 62368-1, AS/NZS62368.1, CCCGB4943.1, CSA C22.2 No. 62368-1, EAC TP TC 00, BSMI CNS143361 | ||
Width 40mm | ||
Weight 300g | ||
Series RPS-200-27 | ||
Efficiency 94% | ||
Maximum Input Voltage 370V dc, 264V dc | ||
Minimum Input Voltage 80V ac | ||
Output Current 5.3A | ||
Hazardous Area Certification No | ||

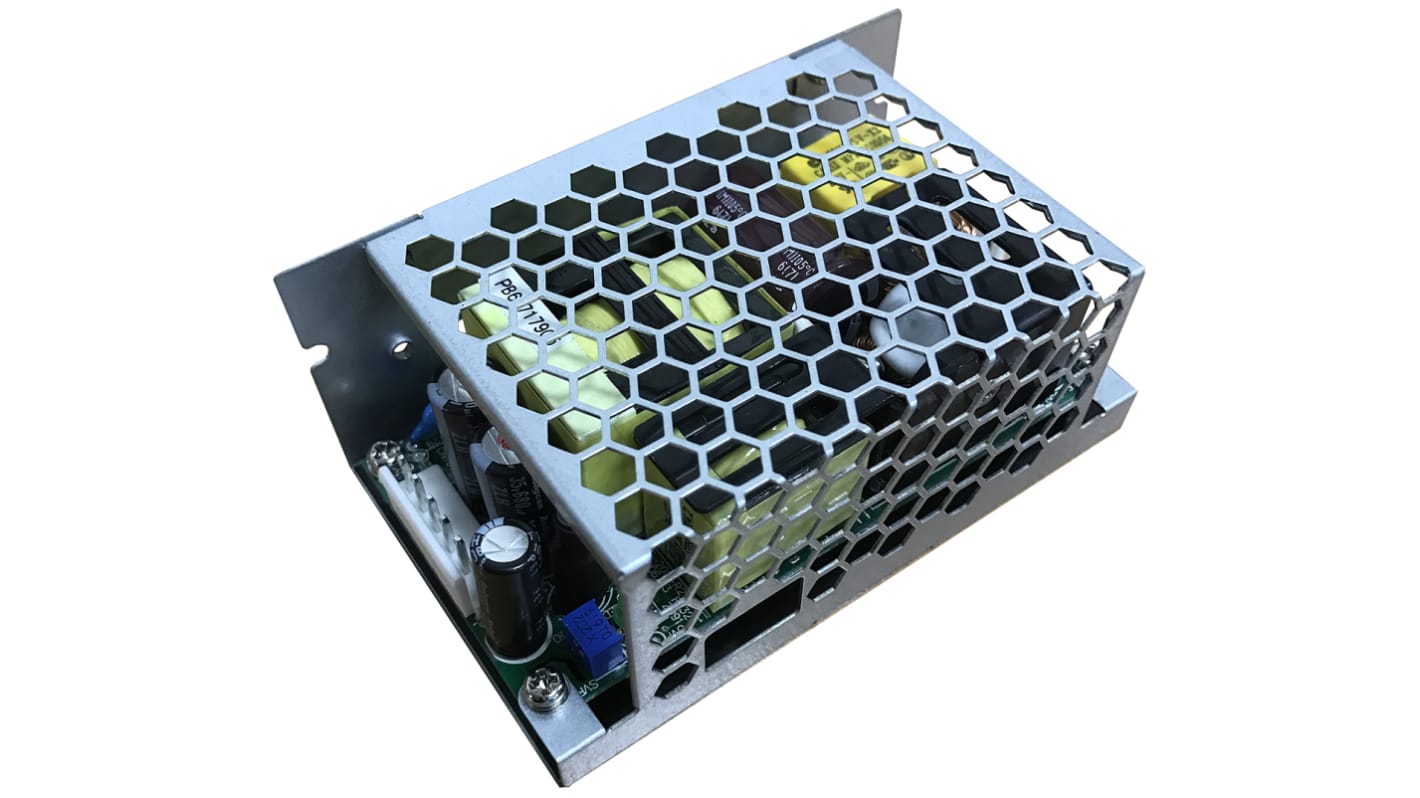

RPS-200 Series Switch Mode Power Supply
The RPS-200 Series is a highly reliable medical power supply. RPS-200 can be used with Class I (with FG) and Class II (no FG) designs. Conforming to medical regulations the RPS-200 is ideal for BF rated "patient contact" equipment.
Features and Benefots
Miniature size
Universal AC input / Full range
Built in PFC function
Medical safety approved (2 x MOPP between primary to secondary)
Suitable for BF application with appropriate system consideration
Low leakage current
No load power consumption
High efficiency
Short circuit, overload, over voltage, over temperature protection
Free air convection cooling for 140W and 200W with 10CFM forced air
Integral fan supply 12V/0.5A
Power on LED indicator
Applications:
Oral irrigator
Hemodialysis machine
Medical monitors
Sleep apnea devices
Pumps machine
Electric bed
Standards
ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1, EMC EN55011, 2∗MOPP
