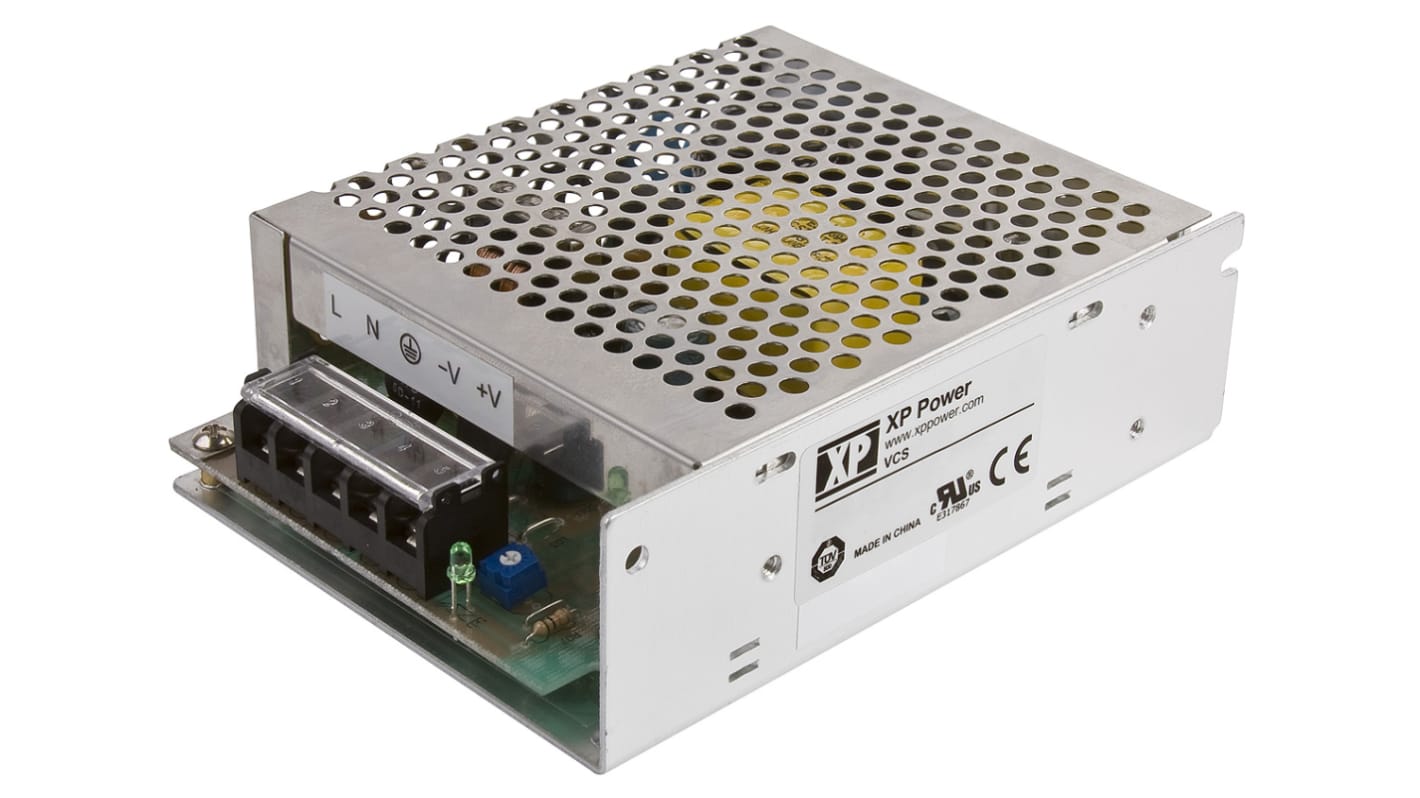

XP Power Switching Power Supply, VCS70US15 15V dc, 4.67A, 70 W, Input 127 V dc, 85V ac to 264V ac
- RS Stock No.:
- 122-7879
- Mfr. Part No.:
- VCS70US15
- Brand:
- XP Power
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 122-7879
- Mfr. Part No.:
- VCS70US15
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 15V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 70W | |
| Minimum Operating Temperature | -25°C | |
| SMPS Output Current | 4.67A | |
| Maximum Operating Temperature | 70°C | |
| Length | 130mm | |
| Depth | 41mm | |
| Standards/Approvals | CSA C22.2 No.60950-1-03, UL 60950-1, IEC 60950-1, TUV EN 60950-1 | |
| Width | 98.5mm | |
| Weight | 400g | |
| Efficiency | 87% | |
| Maximum Input Voltage | 264V ac | |
| Series | VCS | |
| Output Current | 4.67A | |
| Minimum Input Voltage | 127, 85V dc | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 15V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 70W | ||
Minimum Operating Temperature -25°C | ||
SMPS Output Current 4.67A | ||
Maximum Operating Temperature 70°C | ||
Length 130mm | ||
Depth 41mm | ||
Standards/Approvals CSA C22.2 No.60950-1-03, UL 60950-1, IEC 60950-1, TUV EN 60950-1 | ||
Width 98.5mm | ||
Weight 400g | ||
Efficiency 87% | ||
Maximum Input Voltage 264V ac | ||
Series VCS | ||
Output Current 4.67A | ||
Minimum Input Voltage 127, 85V dc | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- CN
XP Power - VCS Series of AC-DC Power Supplies
The VCS series from XP Power offers an excellent range of 50-100 W power supplies. These highly reliable, enclosed power supplies feature a compact, rugged design and have a high efficiency of up to 88%. The range has a wide operating temperature of -40 °C to +70 ° and is convection cooled from -25 °C to +70 °C.
Features and Benefits
50-100 W, enclosed power supplies
Output voltages from 5 to 48 V
<0.5 W no load input power
Compact, rugged construction
High efficiency
Operating temperature from -40 °C to +70 °C
Convection cooled from -25 °C to +70 °C
