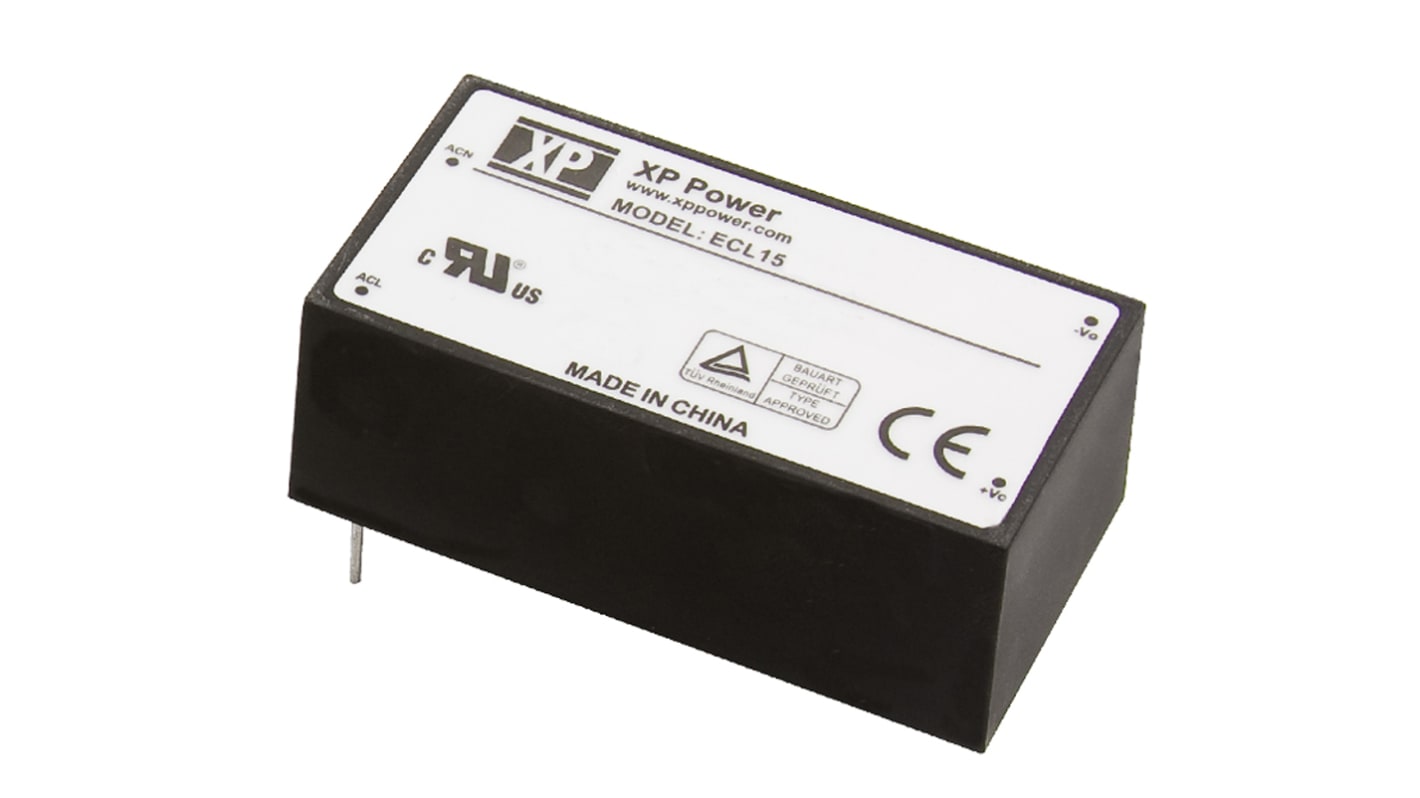

XP Power Switching Power Supply, ECL15US24-E, 24V dc, 630mA, 15W, 1 Output, 120 → 370 V dc, 85 → 264 V ac

View all Switching Power Supplies
Save 11% when you buy 50 units

Subtotal (1 unit)*

£29.80

(exc. VAT)

£35.76

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 94 unit(s) ready to ship
  • Plus 18 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£29.80
5 - 9£28.90
10 - 24£28.01
25 - 49£27.12
50 +£26.31

*price indicative

RS Stock No.:
122-7759
Distrelec Article No.:
302-24-426
Mfr. Part No.:
ECL15US24-E
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage

24V dc

Output Current

630mA

Power Rating

15W

Number of Outputs

1

Input Voltage

120 → 370 V dc, 85 → 264 V ac

Mounting Type

PCB Mount

Package Type

Encapsulated

Length

65mm

Width

33.3mm

Depth

24.4mm

Efficiency

82%

Maximum Temperature

+70°C

Minimum Temperature

-20°C

Weight

90g

COO (Country of Origin):
CN

XP Power - ECL Series of 5-30 W AC-DC Power Supplies


The ECL series from XP Power offers an excellent range of single, dual and triple output, 5 W to 30 W, AC-DC power supplies. These ultra-compact power supplies are available in open-frame PCB, open-frame chassis mount, encapsulated PCB and encapsulated chassis mount versions. The range attributes less than 0.3 W no load input power, peak load capability and a high efficiency of up to 84%.

5 W to 30 W AC-DC power supplies
Single, dual and triple outputs
Encapsulated PCB and chassis mount versions
Open-frame PCB and chassis mount versions
Ultra-compact size
<0.3 W no load input power
Peak load capability
High efficiency up to 84%
-20 °C to +70 °C Operating temperature


XP Power
