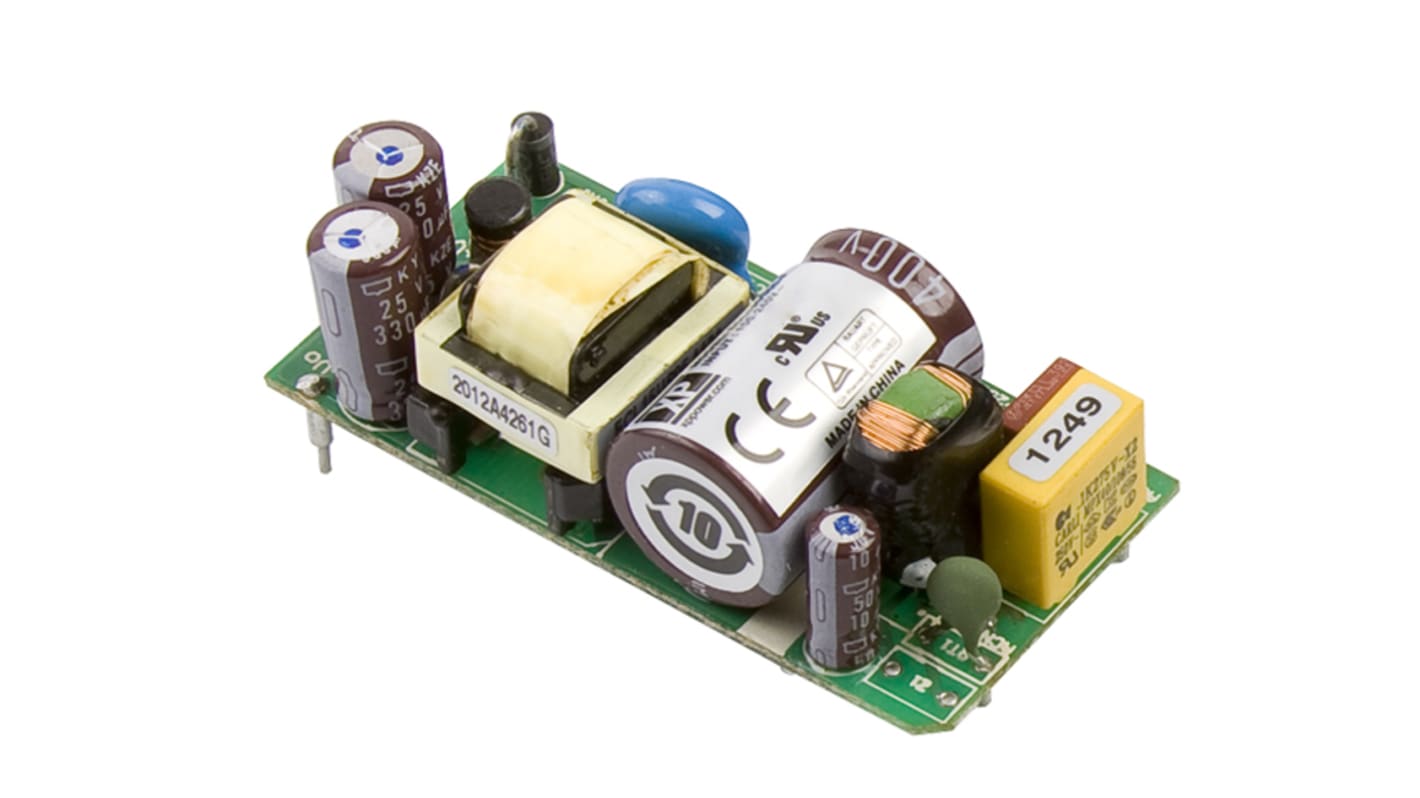

XP Power Switching Power Supply, ECL15UD01-P, ±12V dc, 650mA, 15W, Dual Output, 120 → 370 V dc, 85 → 264

View all Switching Power Supplies
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
122-7731
Mfr. Part No.:
ECL15UD01-P
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage

±12V dc

Output Current

650mA

Power Rating

15W

Number of Outputs

2

Input Voltage

120 → 370 V dc, 85 → 264 V ac

Mounting Type

PCB Mount

Package Type

Open Frame

Length

62mm

Width

30.7mm

Depth

20mm

Efficiency

82%

Weight

40g

Minimum Temperature

-20°C

Maximum Temperature

+70°C

COO (Country of Origin):
CN

XP Power - ECL Series of 5-30 W AC-DC Power Supplies


The ECL series from XP Power offers an excellent range of single, dual and triple output, 5 W to 30 W, AC-DC power supplies. These ultra-compact power supplies are available in open-frame PCB, open-frame chassis mount, encapsulated PCB and encapsulated chassis mount versions. The range attributes less than 0.3 W no load input power, peak load capability and a high efficiency of up to 84%.

5 W to 30 W AC-DC power supplies
Single, dual and triple outputs
Encapsulated PCB and chassis mount versions
Open-frame PCB and chassis mount versions
Ultra-compact size
<0.3 W no load input power
Peak load capability
High efficiency up to 84%
-20 °C to +70 °C Operating temperature
