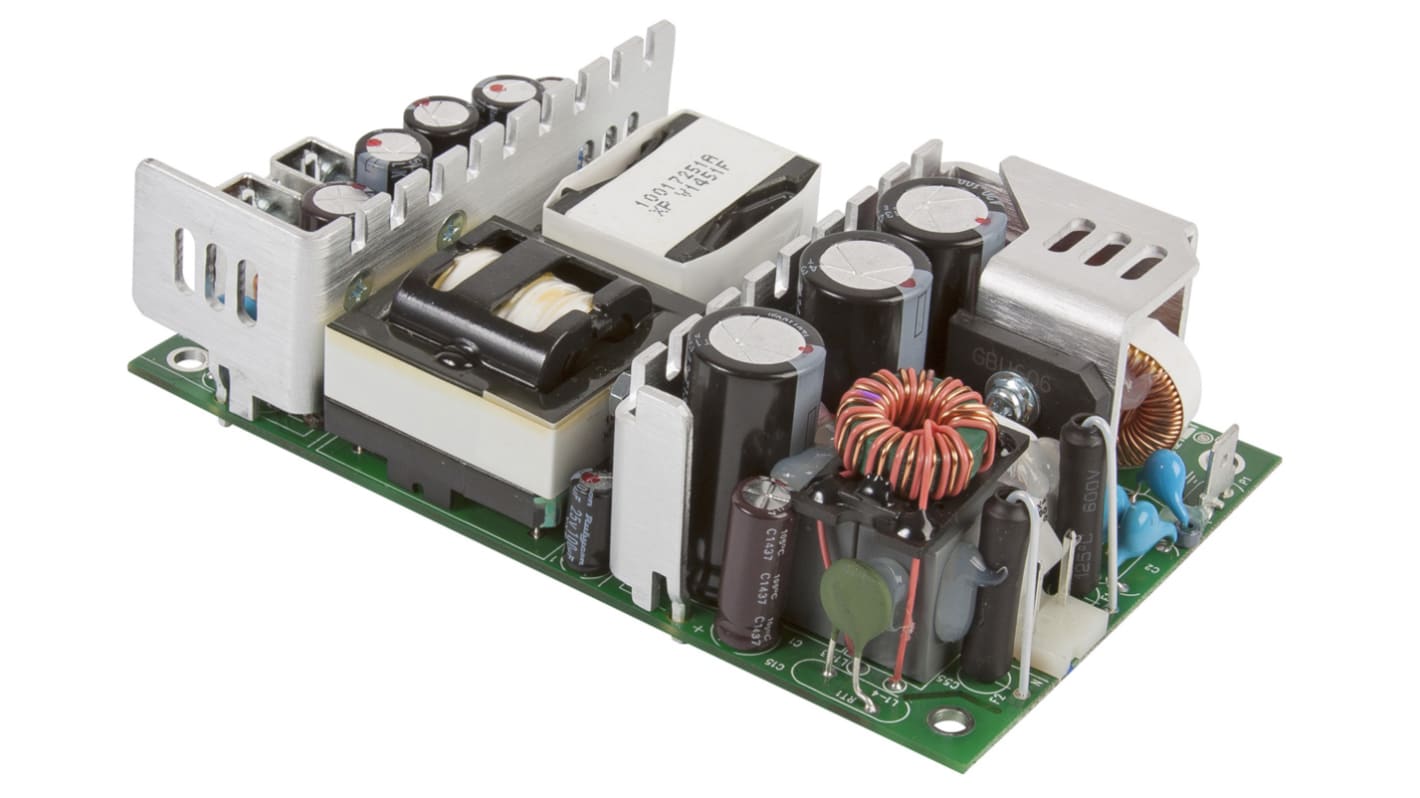

XP Power Switching Power Supply, GCS350PS12 , 12V dc, 29.2A, 350W, 1 Output, 85 → 264V ac Input Voltage
- RS Stock No.:
- 122-7641
- Distrelec Article No.:
- 302-24-484
- Mfr. Part No.:
- GCS350PS12
- Brand:
- XP Power
Bulk discount available
Subtotal (1 unit)*
£105.97
(exc. VAT)
£127.16
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 88 left, ready to ship
- Plus 60 left, shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £105.97 |
5 - 9 | £102.78 |
10 - 24 | £99.61 |
25 - 49 | £96.43 |
50 + | £93.26 |
*price indicative
- RS Stock No.:
- 122-7641
- Distrelec Article No.:
- 302-24-484
- Mfr. Part No.:
- GCS350PS12
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | XP Power | |
Output Voltage | 12V dc | |
Output Current | 29.2A | |
Power Rating | 350W | |
Number of Outputs | 1 | |
Input Voltage | 85 → 264V ac | |
Mounting Type | Chassis Mount | |
Package Type | Open Frame | |
Length | 127mm | |
Width | 76.2mm | |
Medical Approved | Yes | |
Depth | 36.3mm | |
Weight | 290g | |
Minimum Temperature | -40°C | |
Maximum Temperature | +70°C | |
Select all | ||
---|---|---|
Brand XP Power | ||
Output Voltage 12V dc | ||
Output Current 29.2A | ||
Power Rating 350W | ||
Number of Outputs 1 | ||
Input Voltage 85 → 264V ac | ||
Mounting Type Chassis Mount | ||
Package Type Open Frame | ||
Length 127mm | ||
Width 76.2mm | ||
Medical Approved Yes | ||
Depth 36.3mm | ||
Weight 290g | ||
Minimum Temperature -40°C | ||
Maximum Temperature +70°C | ||
XP Power - GCS Series Switch Mode Power Supply
XP Power GCS series of switch mode power supplies provides the user with a unit designed to minimise no load power consumption and maximise efficiency. The result of this design, is to ensure equipment installations adhere to latest environmental legislation. This range of single output AC-DC power supplies are packaged in an industry standard 3 x 5 x 1.42" package, and achieves EN55011/22 level B emissions compliance.
The GCS series has been designed with 1U and other industrial, IT & medical applications.
The GCS series has been designed with 1U and other industrial, IT & medical applications.
Features and Benefits
Convection / force-cooled ratings.
Class I & II IT & medical safety approvals.
Remote on/off functionality.
Class B emissions.
Switch Mode - XP Power
