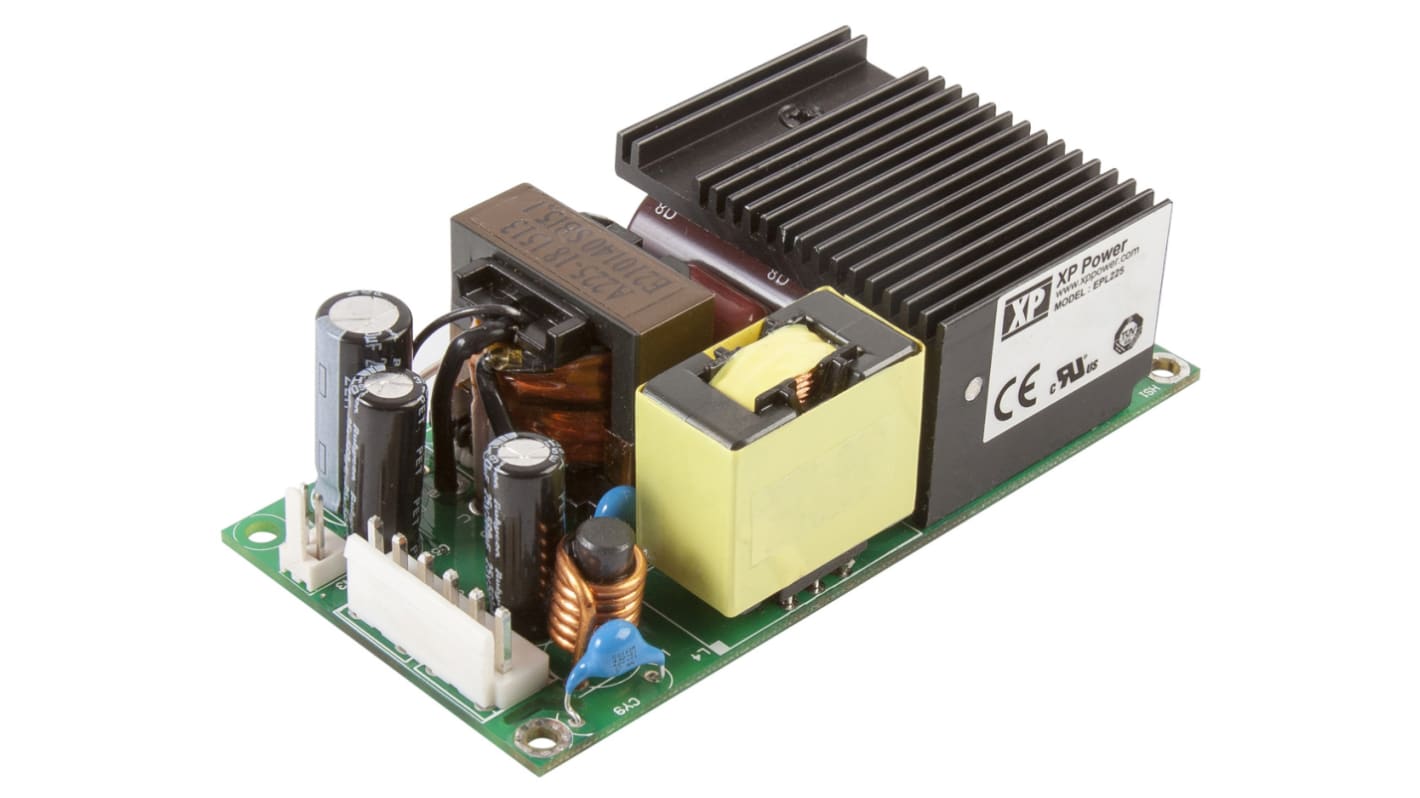

XP Power Switching Power Supply, EPL225PS24 , 24V dc, 9.38A, 225W, 1 Output, 85 → 264V ac Input Voltage
- RS Stock No.:
- 122-7637
- Mfr. Part No.:
- EPL225PS24
- Brand:
- XP Power
1 In stock - FREE next working day delivery available
Added
Price Each
£82.55
(exc. VAT)
£99.06
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £82.55 |
| 5 - 9 | £80.07 |
| 10 - 24 | £77.60 |
| 25 - 49 | £75.12 |
| 50 + | £72.64 |
- RS Stock No.:
- 122-7637
- Mfr. Part No.:
- EPL225PS24
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
XP Power - EPL225 Series Switch Mode Power Supply
XP Power EPL225 series of switch mode power supplies has been designed to maximise efficiency across the load range, while minimising no load power consumption. This allows for optimal heat dissipation, which leads to a reduction in running costs and keeps the installation to adhere to latest environmental goals & legislation.
The XP Power EPL225 series is a small but versatile series which can be adopted into a wide range of ITE & industrial applications.
The XP Power EPL225 series is a small but versatile series which can be adopted into a wide range of ITE & industrial applications.
Features and Benefits
150 W convection / 225 W forced-cooled ratings.
ITE approved.
High-power density.
12 V output fan.
Up to 95% efficiency.
2" x 4" footprint, with a 1.26" low profile.
150 W convection / 225 W forced-cooled ratings.
ITE approved.
High-power density.
12 V output fan.
Up to 95% efficiency.
2" x 4" footprint, with a 1.26" low profile.
Switch Mode - XP Power
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 24V dc |
| Output Current | 9.38A |
| Power Rating | 225W |
| Number of Outputs | 1 |
| Input Voltage | 85 → 264V ac |
| Mounting Type | Chassis Mount |
| Package Type | Open Frame |
| Length | 101.6mm |
| Width | 50.8mm |
| Medical Approved | Yes |
| Depth | 29.6mm |
| Maximum Temperature | +70°C |
| Weight | 195g |
| Minimum Temperature | -20°C |
