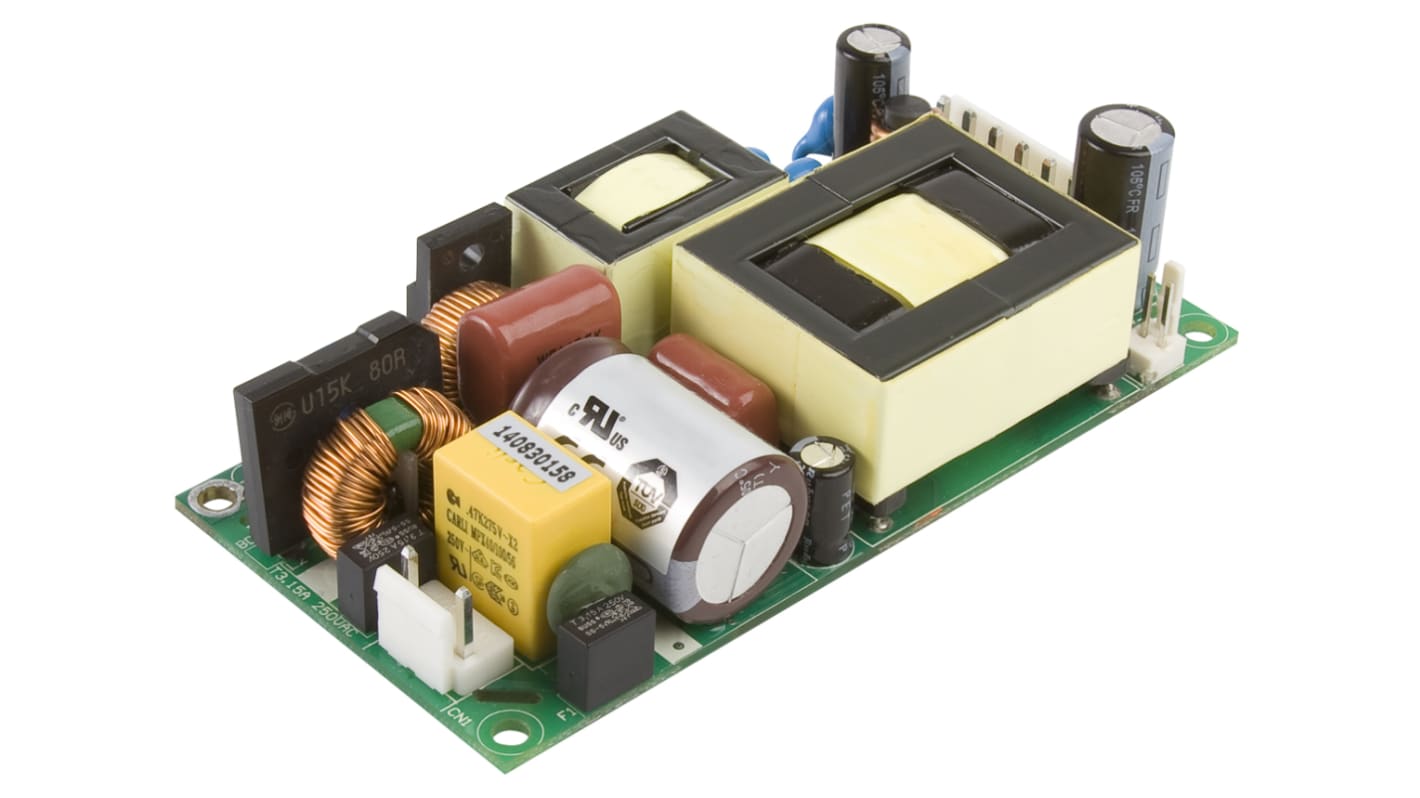

XP Power Switching Power Supply, ECP180PS12, 12V dc, 15A, 180W, 1 Output, 85 → 264V ac Input Voltage
- RS Stock No.:
- 122-7596
- Mfr. Part No.:
- ECP180PS12
- Brand:
- XP Power
21 In stock - FREE next working day delivery available
Price Each
£88.03
(exc. VAT)
£105.64
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £88.03 |
| 5 - 9 | £85.39 |
| 10 - 24 | £82.75 |
| 25 - 49 | £80.11 |
| 50 + | £77.47 |
- RS Stock No.:
- 122-7596
- Mfr. Part No.:
- ECP180PS12
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
XP Power - ECP180 Series Switch Mode Power Supply
XP Power ECP180 series of 180 W power supply provides the user with a low cost PCB mount power solution to a wide variety of applications. The ECP180 series offers an output voltage of 5 to 15 V, with a very low load input power of <0.5 W. The series has been designed to adhere to the latest environmental legislation.
The low profile nature of the series offers a compact & reliable medical and ITE approved range of power supplies.
The low profile nature of the series offers a compact & reliable medical and ITE approved range of power supplies.
Features and Benefits
2" x 4" footprint, with 1" low profile.
120 W convection cooled, 180 W forced cooled.
<0.5 W no load input power.
12 V to 48 V single output.
Up to 95% efficiency rating.
Class I & class II application rating.
Integral fan supply.
2" x 4" footprint, with 1" low profile.
120 W convection cooled, 180 W forced cooled.
<0.5 W no load input power.
12 V to 48 V single output.
Up to 95% efficiency rating.
Class I & class II application rating.
Integral fan supply.
Switch Mode - XP Power
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 12V dc |
| Output Current | 15A |
| Power Rating | 180W |
| Number of Outputs | 1 |
| Input Voltage | 85 → 264V ac |
| Mounting Type | Chassis Mount |
| Package Type | Open Frame |
| Length | 101.6mm |
| Width | 50.8mm |
| Medical Approved | Yes |
| Depth | 22.9mm |
| Minimum Temperature | -20°C |
| Weight | 230g |
| Maximum Temperature | +70°C |
