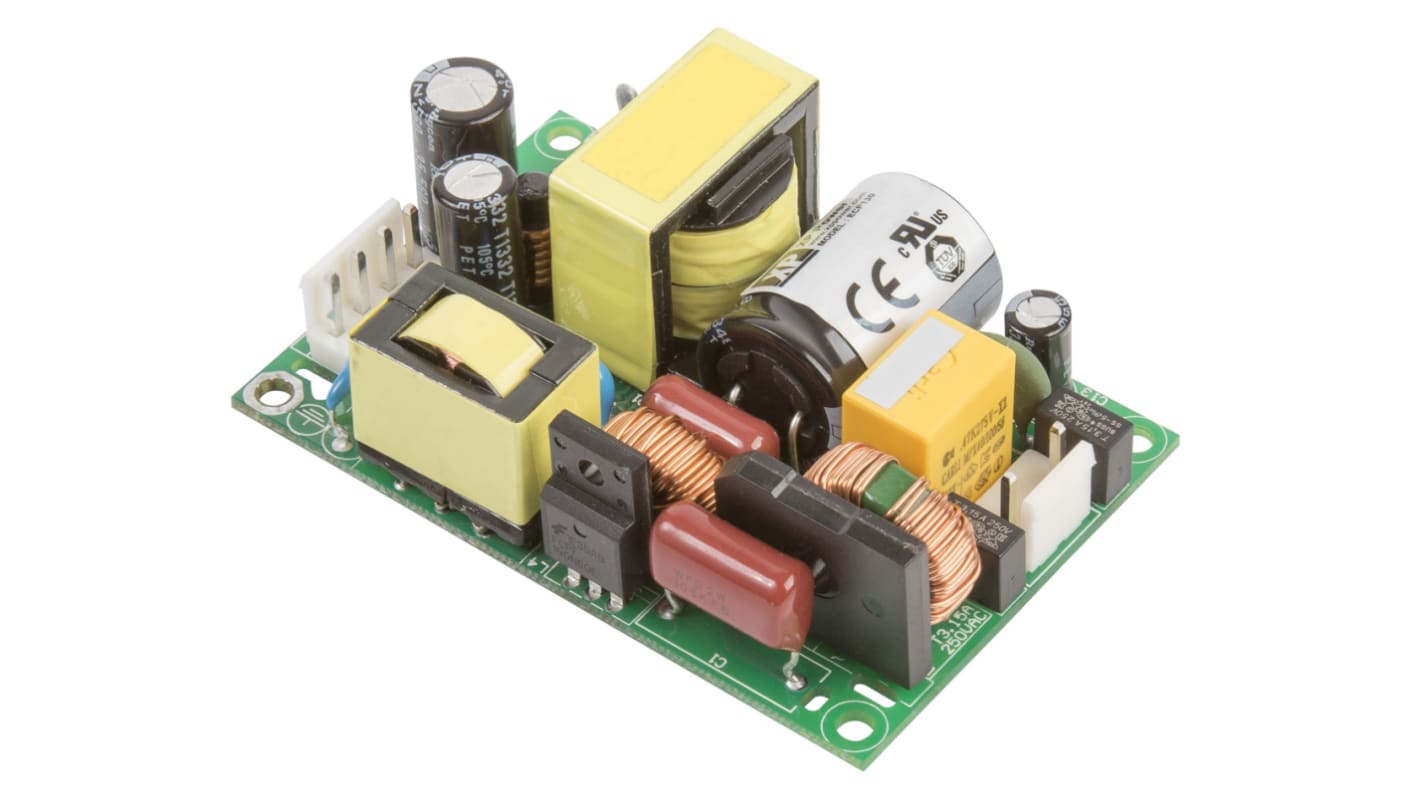

XP Power Switching Power Supply, ECP130PS48, 48V dc, 2.7A, 130W, 1 Output, 85 → 264V ac Input Voltage

View all Switching Power Supplies
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
122-7590
Mfr. Part No.:
ECP130PS48
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage

48V dc

Output Current

2.7A

Power Rating

130W

Number of Outputs

1

Input Voltage

85 → 264V ac

Mounting Type

Chassis Mount

Package Type

Open Frame

Length

76.2mm

Width

50.8mm

Medical Approved

Yes

Depth

24.1mm

Maximum Temperature

+80°C

Minimum Temperature

-30°C

Weight

195g

COO (Country of Origin):
TW

XP Power - ECP130 Series Switch Mode Power Supply


XP Power ECP130 series of 130 W power supply provides the user with a low cost chassis mount power solution to a wide variety of applications. The ECP130 series offers an output voltage of 12 to 48 V, with a very low load input power of <0.3 W. The series has been designed to adhere to the latest environmental legislation.

The low profile nature of the series offers a compact & reliable medical and ITE approved range of power supplies.


Features and Benefits

100 W convection / 130 W forced-cooled rating.
Medical & ITE approved.
0.5 W no load input power.
Up to 95% efficiency.
2" x 3" footprint, with a low 1.1" profile.
