XP Power Switching Power Supply, VFT150PS12 12V dc, 12.5A, 150 W, Input 90V ac to 264V ac
- RS Stock No.:
- 122-7577
- Distrelec Article No.:
- 302-41-852
- Mfr. Part No.:
- VFT150PS12
- Brand:
- XP Power
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£62.65
(exc. VAT)
£75.18
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 1 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 4 | £62.65 |
| 5 - 9 | £60.77 |
| 10 - 24 | £58.88 |
| 25 - 49 | £57.00 |
| 50 + | £55.13 |
*price indicative
- RS Stock No.:
- 122-7577
- Distrelec Article No.:
- 302-41-852
- Mfr. Part No.:
- VFT150PS12
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 12V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 150W | |
| Minimum Operating Temperature | -10°C | |
| SMPS Output Current | 12.5A | |
| Maximum Operating Temperature | 70°C | |
| Depth | 33.1mm | |
| Standards/Approvals | IEC 609501, UL 609501, EN 609501 | |
| Length | 127mm | |
| Weight | 340g | |
| Width | 76.2mm | |
| Efficiency | 87% | |
| Maximum Input Voltage | 264V ac | |
| Series | VCT | |
| Minimum Input Voltage | 90V ac | |
| Hazardous Area Certification | No | |
| Output Current | 12.5A | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 12V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 150W | ||
Minimum Operating Temperature -10°C | ||
SMPS Output Current 12.5A | ||
Maximum Operating Temperature 70°C | ||
Depth 33.1mm | ||
Standards/Approvals IEC 609501, UL 609501, EN 609501 | ||
Length 127mm | ||
Weight 340g | ||
Width 76.2mm | ||
Efficiency 87% | ||
Maximum Input Voltage 264V ac | ||
Series VCT | ||
Minimum Input Voltage 90V ac | ||
Hazardous Area Certification No | ||
Output Current 12.5A | ||
- COO (Country of Origin):
- CN

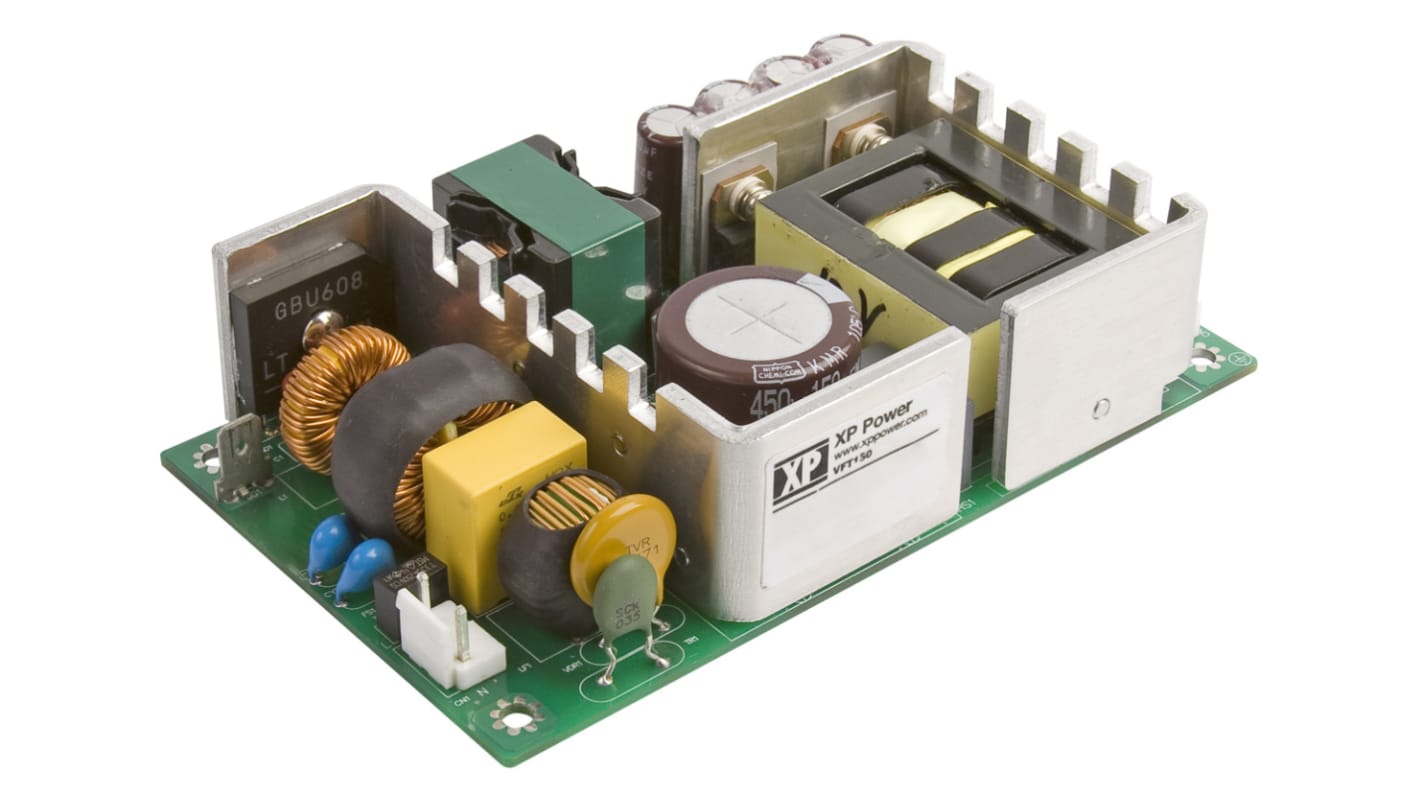

XP Power - VFT150 Series Switch Mode Power Supply
XP Power VFT150 series of 150 W power supply provides the user with a low cost PCB mount power solution to a wide variety of applications. The VFT150 series offers an output voltage of 5 to 48 V, with a very low load input power of <0.5 W. The series has been designed to adhere to the latest environmental legislation.
The low profile nature of the series offers a compact & reliable industrial power supply.
Features and Benefits
100 W convection & 150 W forced-cooled rating.
Integral fan supply.
<0.5 W no load input power.
3" x 5" package.
Switch Mode - XP Power
