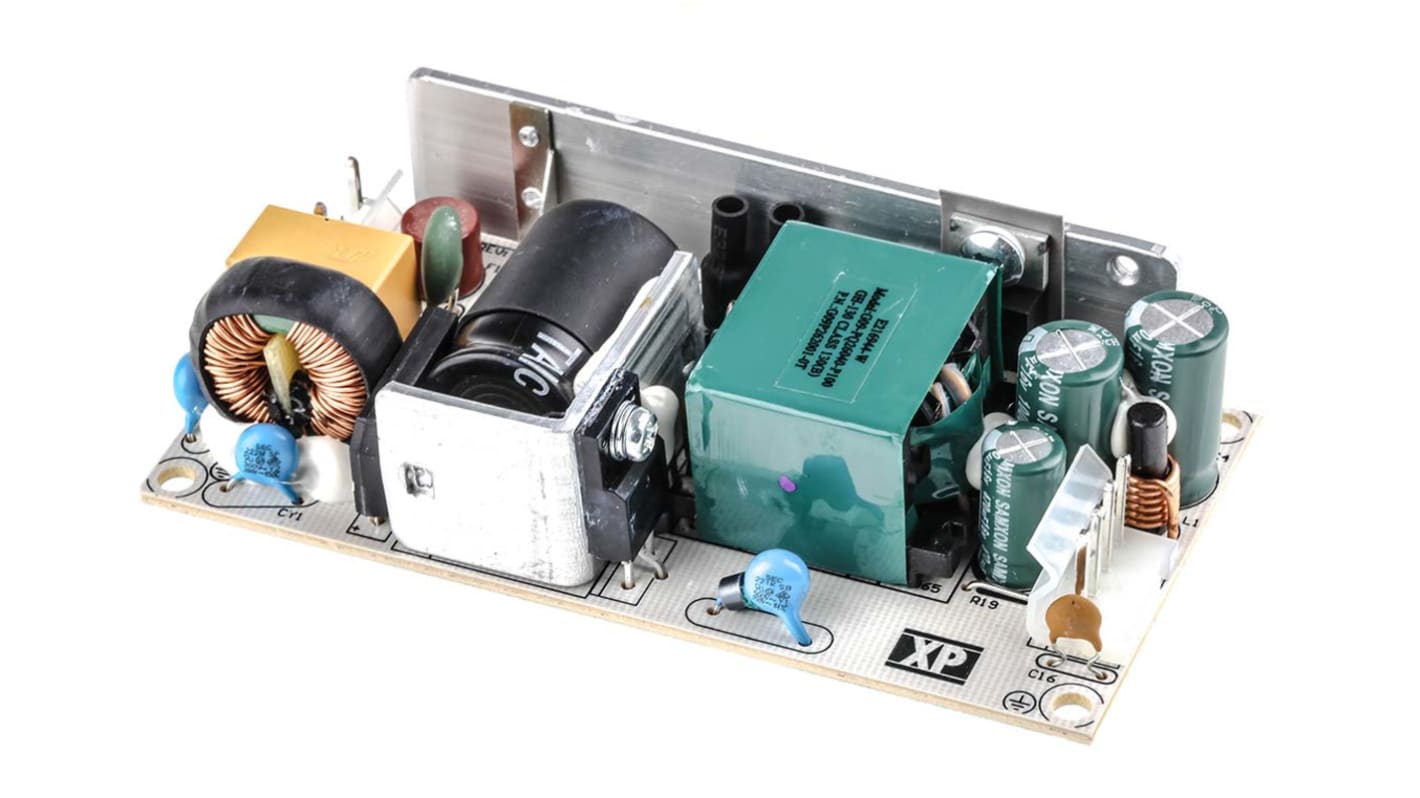

XP Power Switching Power Supply, VCT60US12, 12V dc, 5A, 60W, 1 Output, 85 → 264V ac Input Voltage
- RS Stock No.:
- 122-7573
- Mfr. Part No.:
- VCT60US12
- Brand:
- XP Power
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£38.04
(exc. VAT)
£45.65
(inc. VAT)
- RS Stock No.:
- 122-7573
- Mfr. Part No.:
- VCT60US12
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | 12V dc | |
| Output Current | 5A | |
| Power Rating | 60W | |
| Number of Outputs | 1 | |
| Input Voltage | 85 → 264V ac | |
| Mounting Type | Chassis Mount | |
| Package Type | Open Frame | |
| Length | 101.6mm | |
| Width | 50.8mm | |
| Depth | 20mm | |
| Efficiency | 87% | |
| Minimum Temperature | -10°C | |
| Weight | 130g | |
| Maximum Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage 12V dc | ||
Output Current 5A | ||
Power Rating 60W | ||
Number of Outputs 1 | ||
Input Voltage 85 → 264V ac | ||
Mounting Type Chassis Mount | ||
Package Type Open Frame | ||
Length 101.6mm | ||
Width 50.8mm | ||
Depth 20mm | ||
Efficiency 87% | ||
Minimum Temperature -10°C | ||
Weight 130g | ||
Maximum Temperature +70°C | ||
- COO (Country of Origin):
- CN
XP Power AC To DC Power Supply
The XP Power VCT series 60W single output AC to DC power supply has an output current rating of 5A at 24VDC. It has a universal input supply voltage rating from 85VAC to 264VAC.
Note:
The low profile nature of the series offers a compact and reliable medical and ITE approved range of power supplies.
Note:
The low profile nature of the series offers a compact and reliable medical and ITE approved range of power supplies.
Features and Benefits
Convection cooled
Cost effective solution
Designed for 1U applications
Low cost
No load input power <0.5W
Package 2in x 4in
PCB mount
Cost effective solution
Designed for 1U applications
Low cost
No load input power <0.5W
Package 2in x 4in
PCB mount
Certifications
Class II construction
EN55022, level B conducted & radiated
EN60950-1
EN61000-3-2 class A
EN61000-3-3
EN61000-4-11, 30% 10ms, 60%, 100ms, 100%, 5000ms Perf criteria A, B, B
EN61000-4-2, level 3, Perf criteria A
EN61000-4-3, 10 V/m, Perf criteria A EFT/burst
EN61000-4-4, level 3, Perf criteria A
EN61000-4-5, installation class 3, Perf criteria A
EN61000-4-6, 10 V, Perf criteria A
IEC60950-1
UL60950-1
EN55022, level B conducted & radiated
EN60950-1
EN61000-3-2 class A
EN61000-3-3
EN61000-4-11, 30% 10ms, 60%, 100ms, 100%, 5000ms Perf criteria A, B, B
EN61000-4-2, level 3, Perf criteria A
EN61000-4-3, 10 V/m, Perf criteria A EFT/burst
EN61000-4-4, level 3, Perf criteria A
EN61000-4-5, installation class 3, Perf criteria A
EN61000-4-6, 10 V, Perf criteria A
IEC60950-1
UL60950-1
