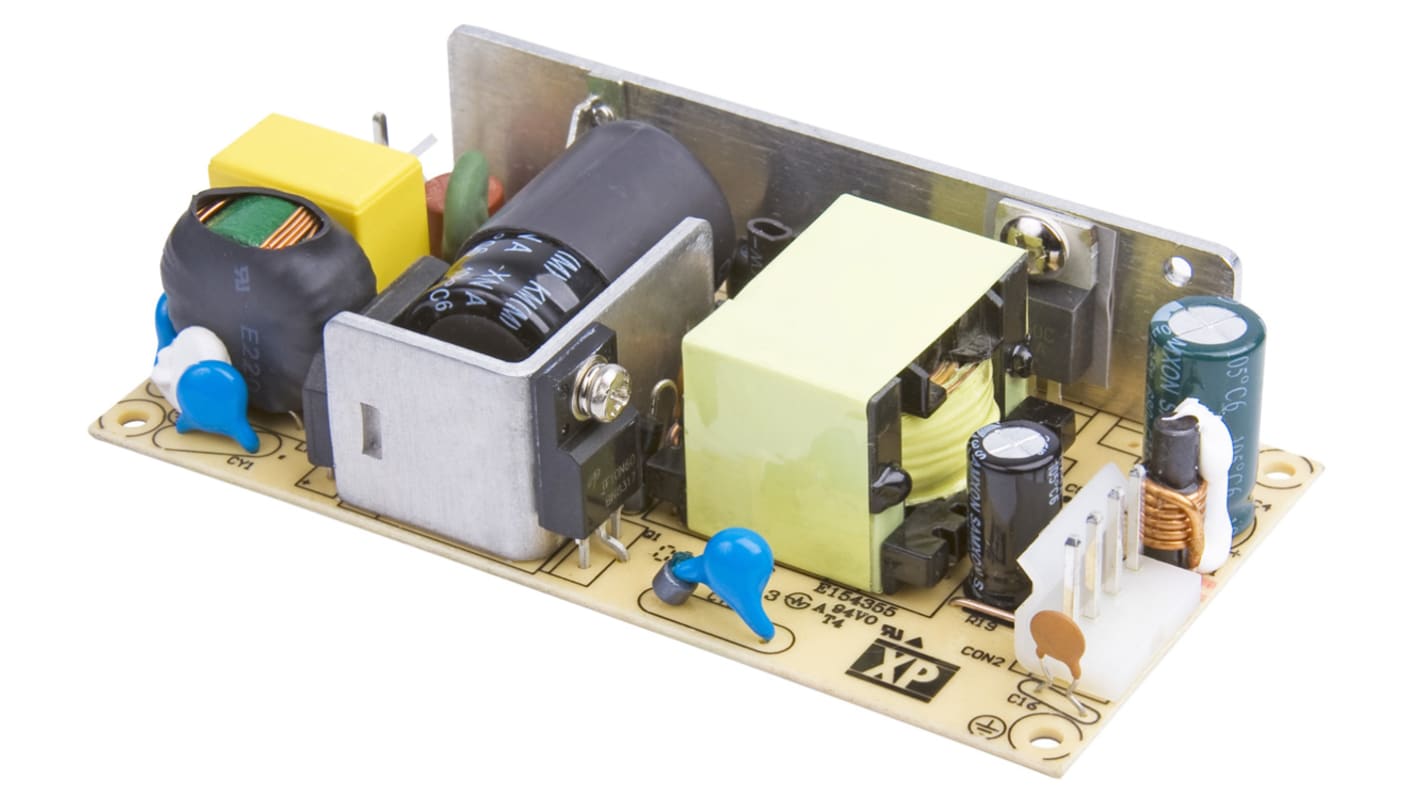

XP Power Switching Power Supply, VCT40US05, 5V dc, 8A, 40W, 1 Output, 85 → 264V ac Input Voltage
- RS Stock No.:
- 122-7572
- Mfr. Part No.:
- VCT40US05
- Brand:
- XP Power
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£25.10
(exc. VAT)
£30.12
(inc. VAT)
- RS Stock No.:
- 122-7572
- Mfr. Part No.:
- VCT40US05
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | 5V dc | |
| Output Current | 8A | |
| Power Rating | 40W | |
| Number of Outputs | 1 | |
| Input Voltage | 85 → 264V ac | |
| Mounting Type | Chassis Mount | |
| Package Type | Open Frame | |
| Length | 101.6mm | |
| Width | 50.8mm | |
| Depth | 20mm | |
| Efficiency | 82% | |
| Minimum Temperature | -10°C | |
| Weight | 130g | |
| Maximum Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage 5V dc | ||
Output Current 8A | ||
Power Rating 40W | ||
Number of Outputs 1 | ||
Input Voltage 85 → 264V ac | ||
Mounting Type Chassis Mount | ||
Package Type Open Frame | ||
Length 101.6mm | ||
Width 50.8mm | ||
Depth 20mm | ||
Efficiency 82% | ||
Minimum Temperature -10°C | ||
Weight 130g | ||
Maximum Temperature +70°C | ||
- COO (Country of Origin):
- CN
XP Power - VCT40 Series Switch Mode Power Supply
XP Power VCT40 series of 40 W power supply provides the user with a low-cost PCB mount power solution to a wide variety of applications. The VCT40 series offers an output voltage of 5 V to 15 V, with a low load input power of <0.5 W. The series has been designed to adhere to the latest environmental legislation.
The low profile nature of the series offers a compact & reliable medical and ITE approved range of power supplies.
The low profile nature of the series offers a compact & reliable medical and ITE approved range of power supplies.
Features and Benefits
1U application designed.
Convection cooled.
Cost effective solution.
PCB mounting.
Class II construction.
Output voltage from 5 V to 30 V.
No load input power <0.5 W.
1U application designed.
Convection cooled.
Cost effective solution.
PCB mounting.
Class II construction.
Output voltage from 5 V to 30 V.
No load input power <0.5 W.
