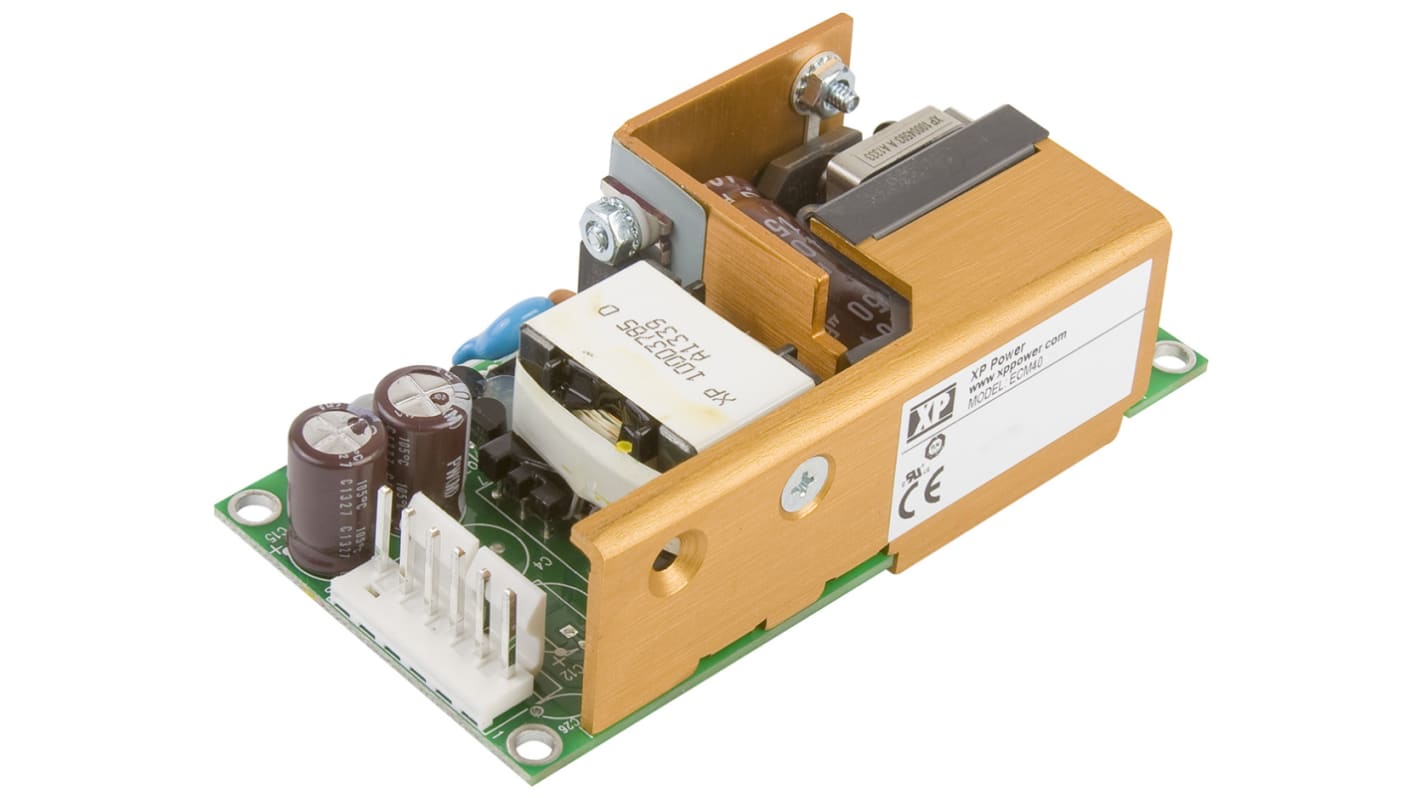

XP Power Switching Power Supply, ECM40US18, 18V dc, 2.2A, 40W, 1 Output, 120 → 370 V dc, 90 → 264 V ac

View all Switching Power Supplies
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
122-7069
Mfr. Part No.:
ECM40US18
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage

18V dc

Output Current

2.2A

Power Rating

40W

Number of Outputs

1

Input Voltage

120 → 370 V dc, 90 → 264 V ac

Mounting Type

Chassis Mount

Package Type

Open Frame

Length

101.6mm

Width

50.8mm

Medical Approved

Yes

Depth

27mm

Minimum Temperature

0°C

Weight

150g

Maximum Temperature

+70°C

XP Power - ECM40 Series of AC-DC Power Supplies


The ECM40 series from XP Power offers an excellent range of open frame, 40 W, AC-DC power supplies, all of which are IT and medically approved. These highly reliable, compact power supplies all feature either a class I or class II construction. The range is convection-cooled and has an operating temperature from 0 °C to +70 °C Operating temperature.

40 W, open frame, AC-DC power supplies
80-85% Efficiency
IT and medically approved
Class I and Class II construction
DC Input version available (DCM series)
3 year warranty


Switch Mode - XP Power
