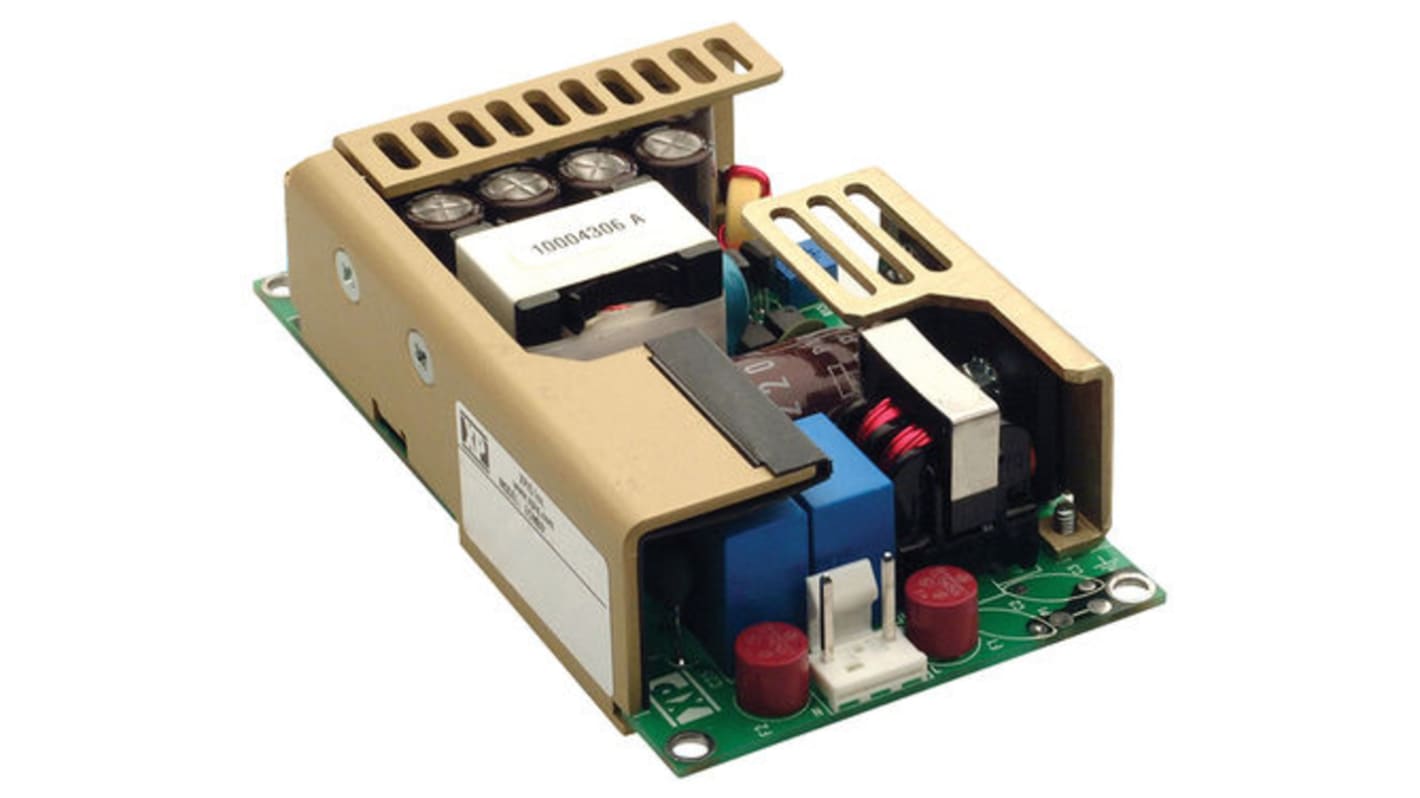

XP Power Switching Power Supply, ECM100UQ44, 5 V dc, ±15 V dc, ±24 V dc, 2 A, 10 A, 800 mA, 100W, Quad Output, 120

View all Switching Power Supplies
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
122-7031
Distrelec Article No.:
301-83-473
Mfr. Part No.:
ECM100UQ44
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage

5 V dc, ±15 V dc, ±24 V dc

Output Current

2 A, 10 A, 800 mA

Power Rating

100W

Number of Outputs

4

Input Voltage

120 → 370 V dc, 90 → 264 V ac

Mounting Type

Chassis Mount

Package Type

Open Frame

Length

114.3mm

Width

63.5mm

Medical Approved

Yes

Depth

27mm

Maximum Temperature

+70°C

Weight

180g

Minimum Temperature

0°C

XP Power - ECM100 Series of AC-DC Power Supplies


The ECM series from XP Power offers an excellent range of open frame, 100 W AC-DC power supplies, all of which are IT and medically approved. These highly reliable, compact power supplies all feature either a class I or class II construction. The range is convection-cooled and has an operating temperature from 0 °C to +70 °C Operating temperature.

100 W open frame, AC-DC power supplies
80-85% Efficiency
IT and medically approved
Class I and Class II construction
DC Input version available (DCM series)


Switch Mode - XP Power
