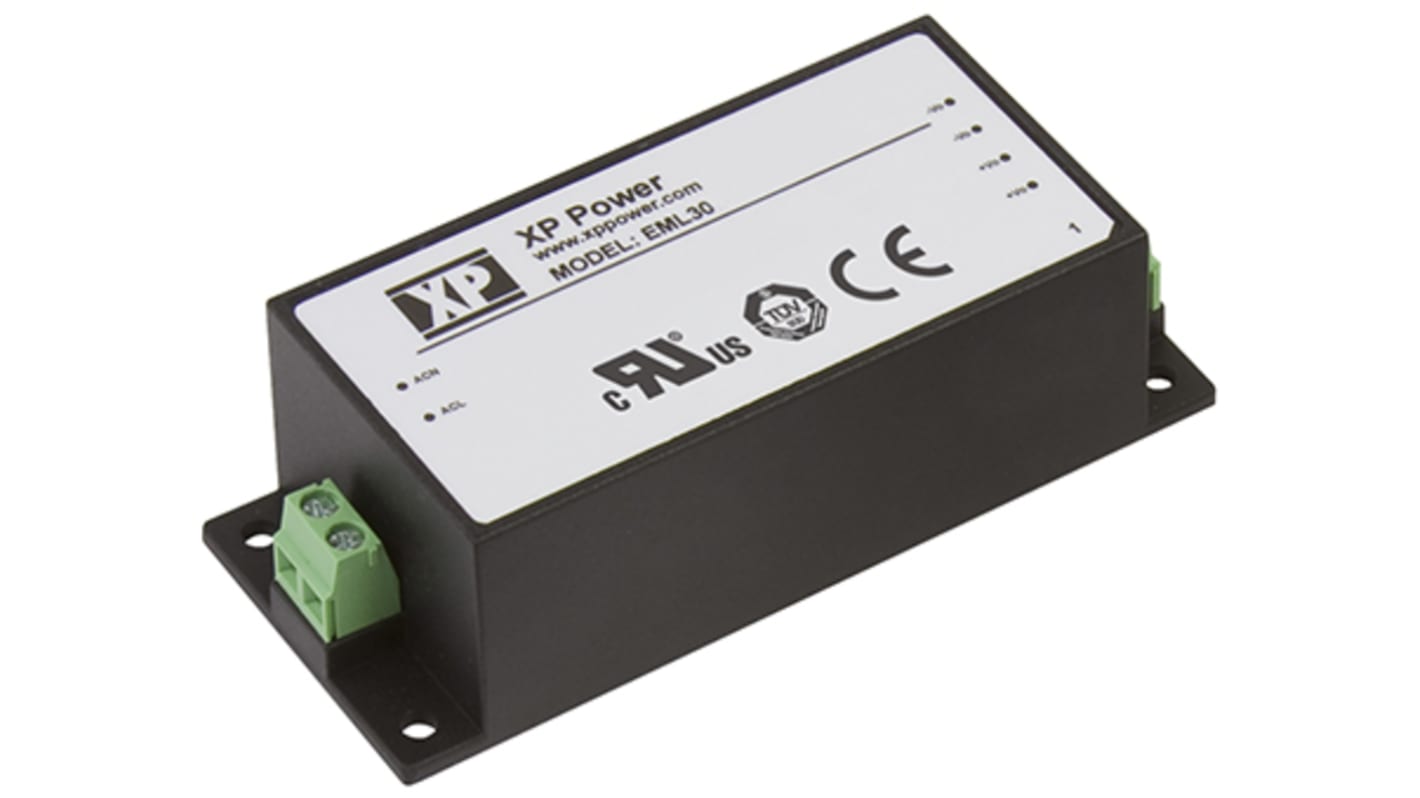

XP Power Switching Power Supply, EML30US48-S, 48V dc, 620mA, 30W, 1 Output, 120 → 370 V dc, 85 → 264 V ac
- RS Stock No.:
- 122-6613
- Mfr. Part No.:
- EML30US48-S
- Brand:
- XP Power
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 122-6613
- Mfr. Part No.:
- EML30US48-S
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | 48V dc | |
| Output Current | 620mA | |
| Power Rating | 30W | |
| Number of Outputs | 1 | |
| Input Voltage | 120 → 370 V dc, 85 → 264 V ac | |
| Mounting Type | Chassis Mount | |
| Package Type | Encapsulated | |
| Length | 96mm | |
| Width | 40mm | |
| Medical Approved | Yes | |
| Depth | 28.5mm | |
| Maximum Temperature | +70°C | |
| Minimum Temperature | -20°C | |
| Weight | 170g | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage 48V dc | ||
Output Current 620mA | ||
Power Rating 30W | ||
Number of Outputs 1 | ||
Input Voltage 120 → 370 V dc, 85 → 264 V ac | ||
Mounting Type Chassis Mount | ||
Package Type Encapsulated | ||
Length 96mm | ||
Width 40mm | ||
Medical Approved Yes | ||
Depth 28.5mm | ||
Maximum Temperature +70°C | ||
Minimum Temperature -20°C | ||
Weight 170g | ||
- COO (Country of Origin):
- CN
XP EMCO - EML30 Series of AC-DC Power Supplies
The EML30 series from XP Power offers a highly reliable range of open frame and encapsulated AC-DC single output power supplies. The series has been primarily designed for medical applications and meets worldwide medical safety standards, in compliance to class B with conducted and radiated emissions. This compact, class II designed range has a single output range from 3.3 V to 48 V and features a 130%, 30s peak load capability.
30 W
Single Outputs from 3.3 V to 48 V
Mechanical options include PCB mount, open frame, chassis mount
Meets worldwide medical safety standards
130%, 30s Peak load capability
Class II design
Single Outputs from 3.3 V to 48 V
Mechanical options include PCB mount, open frame, chassis mount
Meets worldwide medical safety standards
130%, 30s Peak load capability
Class II design
