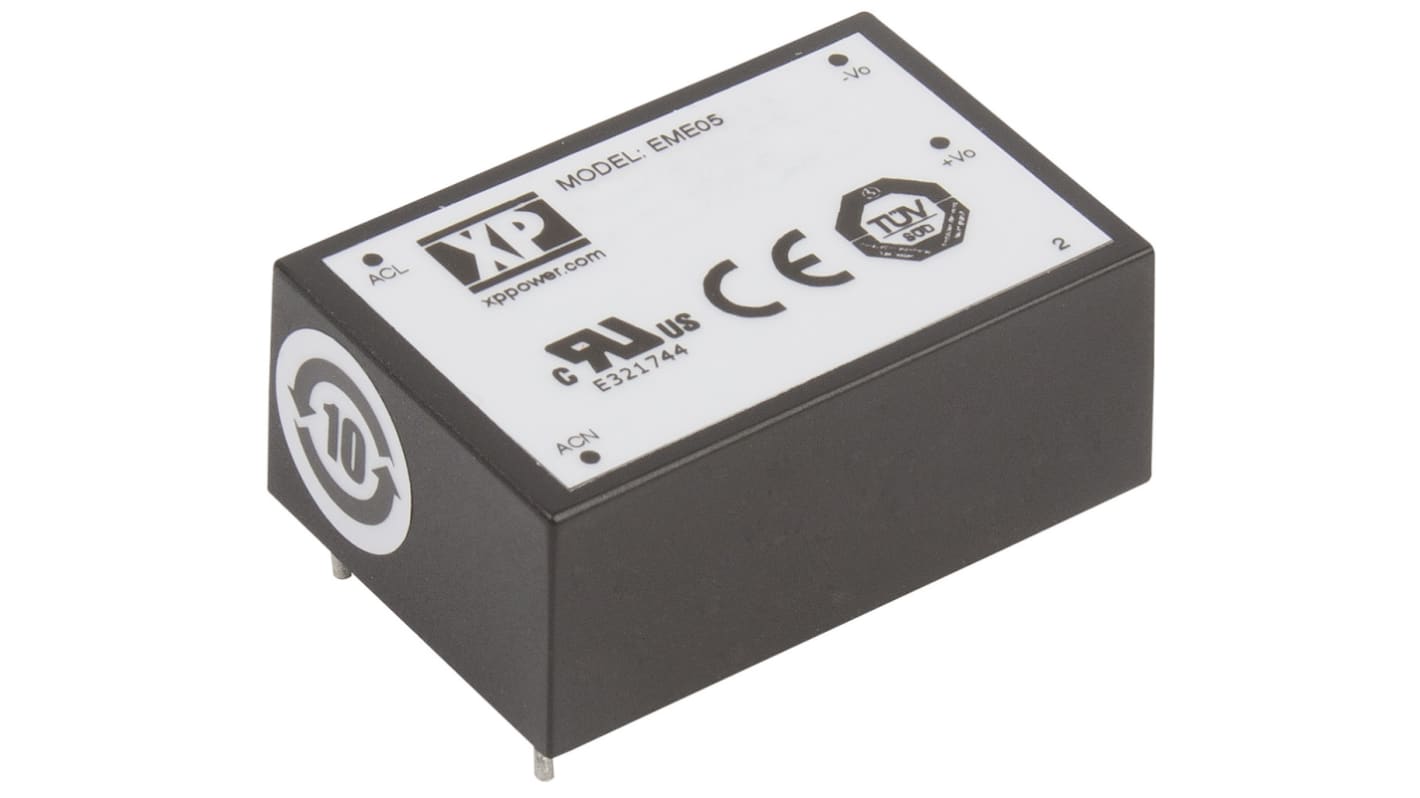

XP Power Switching Power Supply, EME05US03, 3.3V dc, 1.96A, 5W, 1 Output, 85 → 264V ac Input Voltage

View all Switching Power Supplies
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
122-6574
Mfr. Part No.:
EME05US03
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage

3.3V dc

Output Current

1.96A

Power Rating

5W

Number of Outputs

1

Input Voltage

85 → 264V ac

Mounting Type

PCB Mount

Package Type

Encapsulated

Length

38.1mm

Width

25.4mm

Medical Approved

Yes

Depth

15.2mm

Minimum Temperature

-25°C

Maximum Temperature

+70°C

Weight

24g

COO (Country of Origin):
CN

XP Power - EME05 Series of AC-DC Power Supplies


The EME05 Series from XP Power offers a highly reliable range of open frame and encapsulated AC-DC single output power supplies. The series has been primarily designed for medical applications and meets worldwide medical safety standards, in compliance to class B with conducted and radiated emissions. This compact, Class II designed range has a single output range from 3.3 V to 48 V and features a 130%, 30s peak load capability.

Features and Benefits


5 W
Single Outputs from 3.3 V to 48 V
Two mechanical options including open frame and encapsulated PCB mount
Meets worldwide medical safety standards
130%, 30s Peak load capability
Class II design
