MEAN WELL Switching Power Supply, EPS-65S-24, 24V dc, 2.71A, 65W, 1 Output, 127 → 370 V dc, 90 → 264 V ac
- RS Stock No.:
- 103-4701
- Mfr. Part No.:
- EPS-65S-24
- Brand:
- MEAN WELL
63 In stock - FREE next working day delivery available
Added
Price Each
£20.63
(exc. VAT)
£24.76
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £20.63 |
| 5 - 9 | £19.62 |
| 10 - 24 | £18.57 |
| 25 - 49 | £17.56 |
| 50 + | £16.65 |
- RS Stock No.:
- 103-4701
- Mfr. Part No.:
- EPS-65S-24
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
Product Details

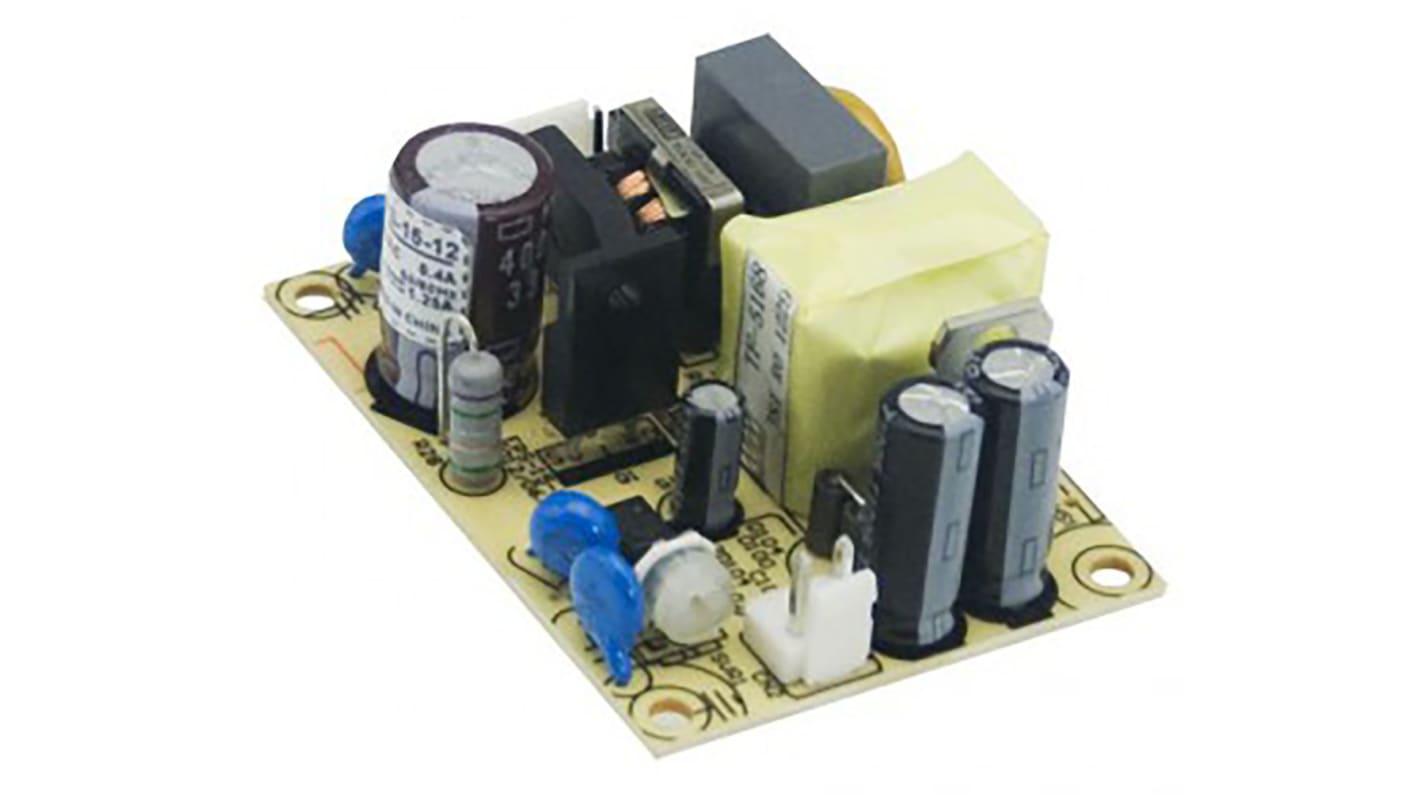

Mean Well EPS65 Series Switch Mode Power Supply
Features and Benefits
•Miniature 3" x 2" size
•For 1U applications
•Accepts 80 - 264 V ac input
•EMI Class B rated, for Class II
•Free air convection cooling
•Short circuit, overload & over voltage protection
•LED indication for power status
•For 1U applications
•Accepts 80 - 264 V ac input
•EMI Class B rated, for Class II
•Free air convection cooling
•Short circuit, overload & over voltage protection
•LED indication for power status
Typcial Applications
•Industrial automation machinery
•Mechanical & electrical equipment
•Industrial control systems
•Electronic instruments, equipment & apparatus
•Mechanical & electrical equipment
•Industrial control systems
•Electronic instruments, equipment & apparatus
Standards
EN55024, EN61000-6-2, EN55022 Class B, EN61000-3-2-3
Switch Mode - Mean Well RPS Series
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 24V dc |
| Output Current | 2.71A |
| Power Rating | 65W |
| Number of Outputs | 1 |
| Input Voltage | 127 → 370 V dc, 90 → 264 V ac |
| Mounting Type | Chassis Mount |
| Package Type | Open Frame |
| Length | 101.6mm |
| Width | 50.8mm |
| Depth | 29mm |
| Efficiency | 88% |
| Weight | 150g |
| Minimum Temperature | -30°C |
| Maximum Temperature | +70°C |
