TRACOPOWER, TXN 1000-112 Switching Power Supply 12V dc, 960 W 264V ac
- RS Stock No.:
- 665-314
- Mfr. Part No.:
- TXN 1000-112
- Brand:
- TRACOPOWER
Subtotal (1 unit)*
£200.60
(exc. VAT)
£240.72
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £200.60 |
*price indicative
- RS Stock No.:
- 665-314
- Mfr. Part No.:
- TXN 1000-112
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 12V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 960W | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 70°C | |
| Weight | 1.2kg | |
| Standards/Approvals | RoHS Compliant | |
| Efficiency | 92% | |
| Series | TXN 1000 | |
| Maximum Input Voltage | 264V ac | |
| Minimum Input Voltage | 90V ac | |
| Hazardous Area Certification | No | |
| Output Current | 80A | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 12V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 960W | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 70°C | ||
Weight 1.2kg | ||
Standards/Approvals RoHS Compliant | ||
Efficiency 92% | ||
Series TXN 1000 | ||
Maximum Input Voltage 264V ac | ||
Minimum Input Voltage 90V ac | ||
Hazardous Area Certification No | ||
Output Current 80A | ||
- COO (Country of Origin):
- CN

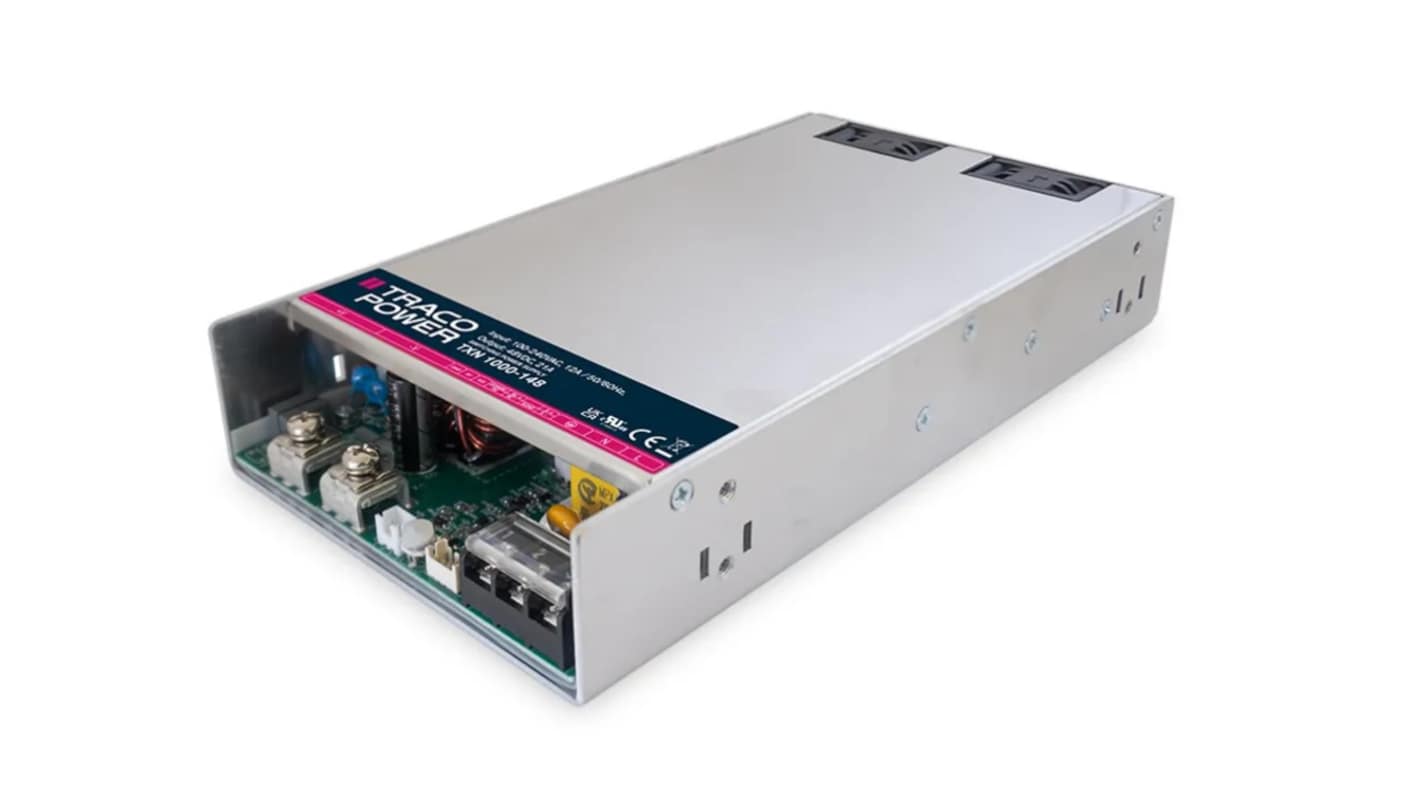

The TRACOPOWER AC/DC power supply is a cost-efficient, metal-enclosed unit designed for industrial applications. It features a low-profile metal case and a screw terminal block for easy installation in any equipment. With active PFC (greater than 0.9), an internal EMC filter, high input-output isolation, and a wide operating temperature range, it is well-suited for demanding industrial environments.
Compact metal case with screw terminal block
Universal input 90 to 264 VAC
I/O reinforced isolation 3000 VAC
Internal EN 55032 class B filter
Operating temperature range –30°C to 70+°C
Short circuit, overvoltage, over temperature and overload protection
