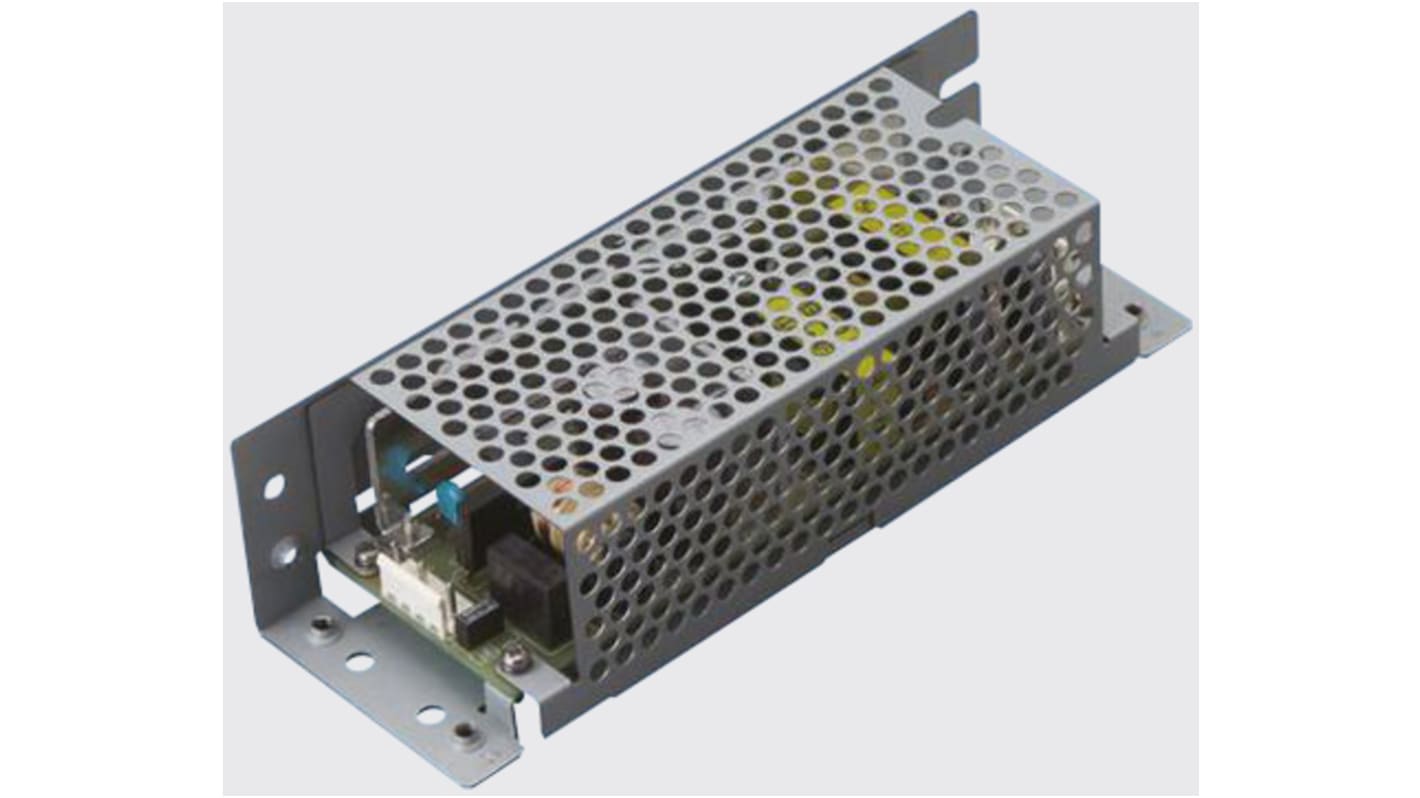

Cosel Embedded Switch Mode Power Supply SMPS, LGA75A-12-SN, 12V dc, 6.3A, 75.6W, 1 Output, 85 → 132V ac Input

View all Switching Power Supplies
Discontinued
RS Stock No.:
548-492
Mfr. Part No.:
LGA75A-12-SN
Brand:
Cosel
Find similar products by selecting one or more attributes.
Select all

Brand

Cosel

Output Voltage

12V dc

Output Current

6.3A

Power Rating

75.6W

Number of Outputs

1

Input Voltage

85 → 132V ac

Mounting Type

Chassis Mount

Package Type

Enclosed

Length

180mm

Width

60mm

Depth

45mm

Efficiency

83%

Minimum Temperature

-10°C

Maximum Temperature

+60°C

Weight

200g

COO (Country of Origin):
JP

LGA Series, Single Output, 50 to 240 W


The LGA series of switch mode power supplies from Cosel are compact solution; 30% smaller than the LCA series. With a field failure rate of less than 0.1%, LGA switching power suppliers are highly reliable. LCA SMPS are fully isolated and fully regulated. Suitable for PCB mounting, no chassis is necessary.

Features and Benefits:


Standard input range of 85 V ac to 132 V ac

Small and compact

PCB construction

Inrush current, overcurrent and overvoltage protection circuits are built in

Note

Please handle the unit with care. Stress to the PCB (twisting or bending) can damage the integrity of the unit, and can cause it to become defective.
Carry out the necessary testing on end equipment with the power supply installed as per required EMC/EMI regulations.

Standards

UL60950-1, cUL (CSA60950-1), EN60950-1 Complies with DEN-AN
Conducted noise complies with FCC-B, VCCI-B, CISPR-B, EN55011-B, EN55022-B
