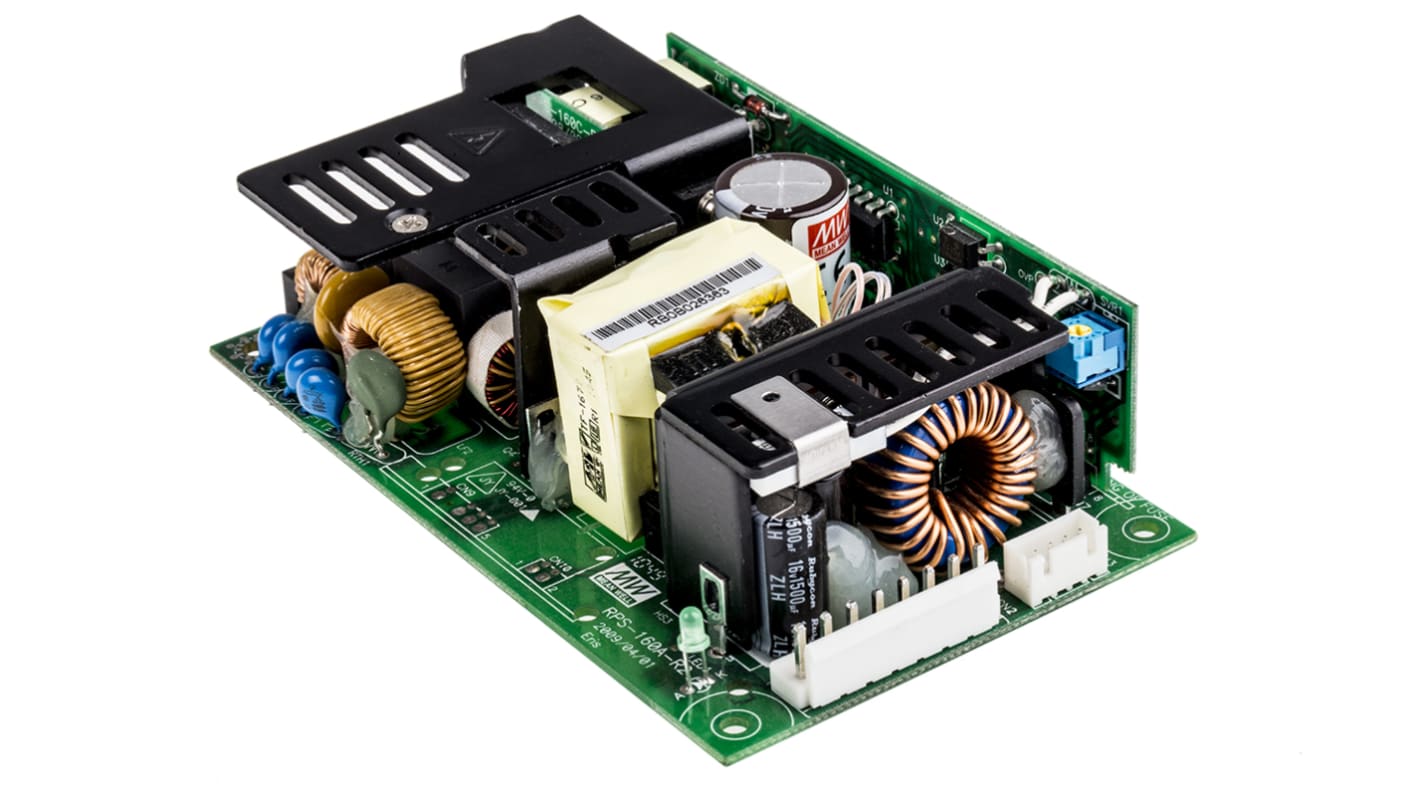

MEAN WELL Switching Power Supply, RPS-160-12, 12V dc, 12.9A, 112W, 1 Output, 127 → 370 V dc, 90 → 264 V
- RS Stock No.:
- 424-342
- Distrelec Article No.:
- 301-56-923
- Mfr. Part No.:
- RPS-160-12
- Brand:
- MEAN WELL
Bulk discount available
Subtotal (1 unit)*
£47.06
(exc. VAT)
£56.47
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £47.06 |
5 - 9 | £45.64 |
10 - 24 | £44.23 |
25 - 49 | £42.82 |
50 + | £41.41 |
*price indicative
- RS Stock No.:
- 424-342
- Distrelec Article No.:
- 301-56-923
- Mfr. Part No.:
- RPS-160-12
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | MEAN WELL | |
Output Voltage | 12V dc | |
Output Current | 12.9A | |
Power Rating | 112W | |
Number of Outputs | 1 | |
Input Voltage | 127 → 370 V dc, 90 → 264 V ac | |
Mounting Type | Chassis Mount | |
Package Type | Open Frame | |
Length | 127mm | |
Width | 76.2mm | |
Medical Approved | Yes | |
Depth | 34.6mm | |
Maximum Temperature | +70°C | |
Minimum Temperature | -20°C | |
Weight | 320g | |
Select all | ||
---|---|---|
Brand MEAN WELL | ||
Output Voltage 12V dc | ||
Output Current 12.9A | ||
Power Rating 112W | ||
Number of Outputs 1 | ||
Input Voltage 127 → 370 V dc, 90 → 264 V ac | ||
Mounting Type Chassis Mount | ||
Package Type Open Frame | ||
Length 127mm | ||
Width 76.2mm | ||
Medical Approved Yes | ||
Depth 34.6mm | ||
Maximum Temperature +70°C | ||
Minimum Temperature -20°C | ||
Weight 320g | ||
- COO (Country of Origin):
- CN
RPS-160 Series, Single Output Power Supply 3x5inch
Miniature size 3x5 inch, high power density
High efficiency, long life and high reliability
Universal input voltage 90-264Vac, 127-370Vdc
Energy saving power supply
No load power consumption <0.5W
Medical safety approved
Low leakage current <200μA
5V 1A standby output
High operating temperature up to 70°C
Power good and fail safe signal output
Adjustable output voltage (±10% main output)
Power factor correction to EN 61000-3-2
EMC compliance to EN55011, EN 55022 Class B
Short circuit, overload over-voltage and over-temperature protection
Extra peak load rating with 20.5CFM forced air cooling
High efficiency, long life and high reliability
Universal input voltage 90-264Vac, 127-370Vdc
Energy saving power supply
No load power consumption <0.5W
Medical safety approved
Low leakage current <200μA
5V 1A standby output
High operating temperature up to 70°C
Power good and fail safe signal output
Adjustable output voltage (±10% main output)
Power factor correction to EN 61000-3-2
EMC compliance to EN55011, EN 55022 Class B
Short circuit, overload over-voltage and over-temperature protection
Extra peak load rating with 20.5CFM forced air cooling
Note
De-rating above 40°C for free air convection, 50°C for forced air cooling with 20.5CFM. Output current and power stated for free air convection.
MTBF to MIL-HDBK-217F (25°C).
MTBF to MIL-HDBK-217F (25°C).
Approvals
TUV, CB, UL recognised component for Canada & US
Standards
EN 60601-1, UL 60601-1
